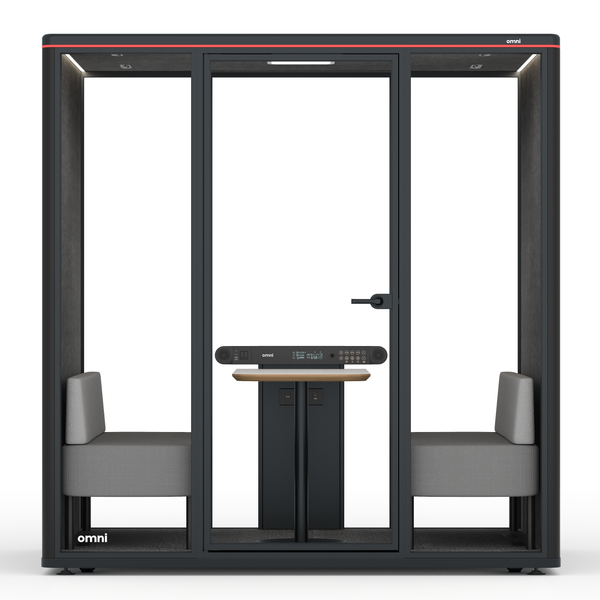

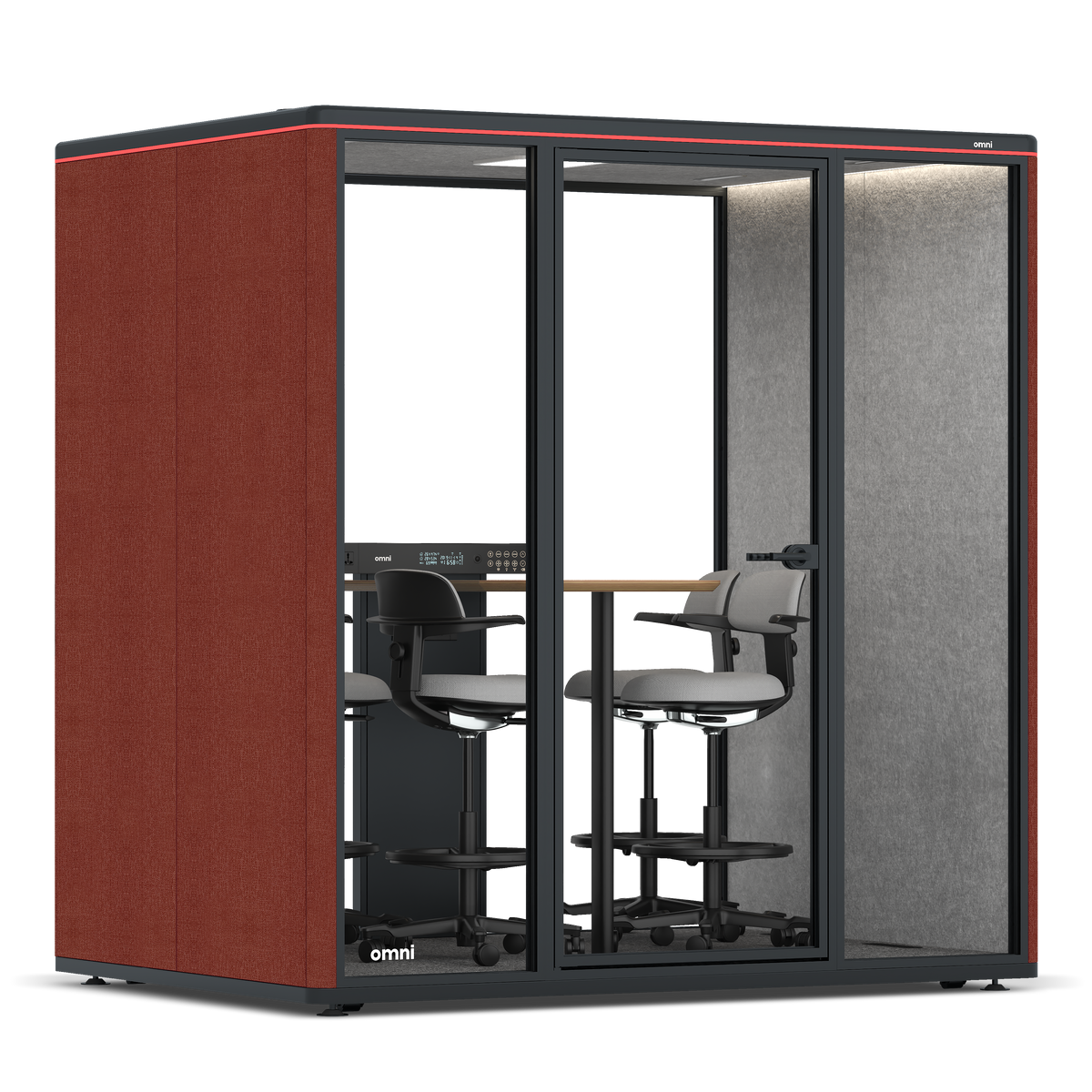

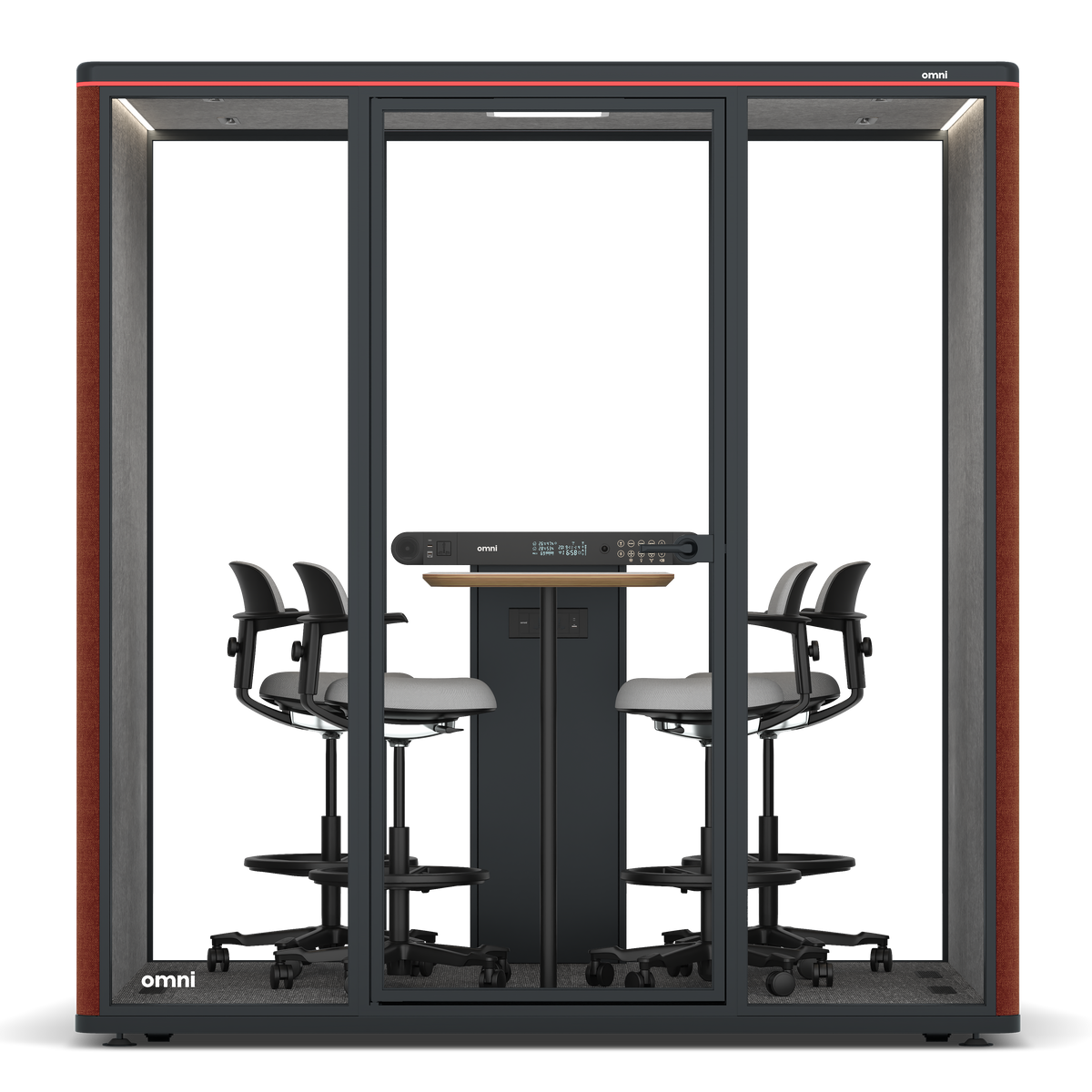

Omni Four

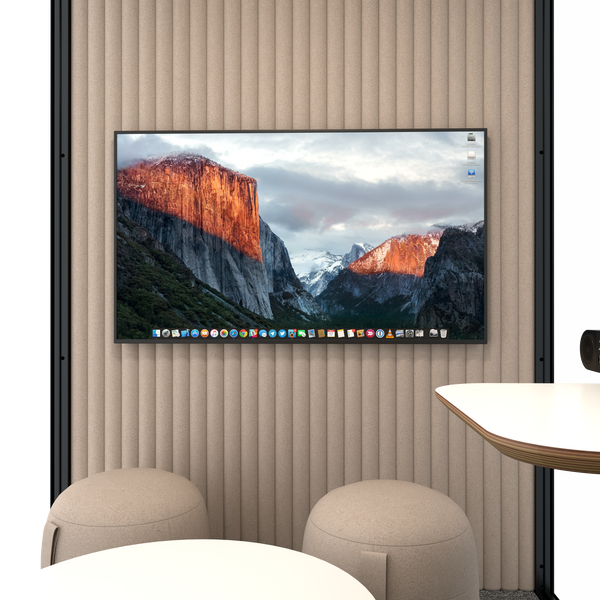

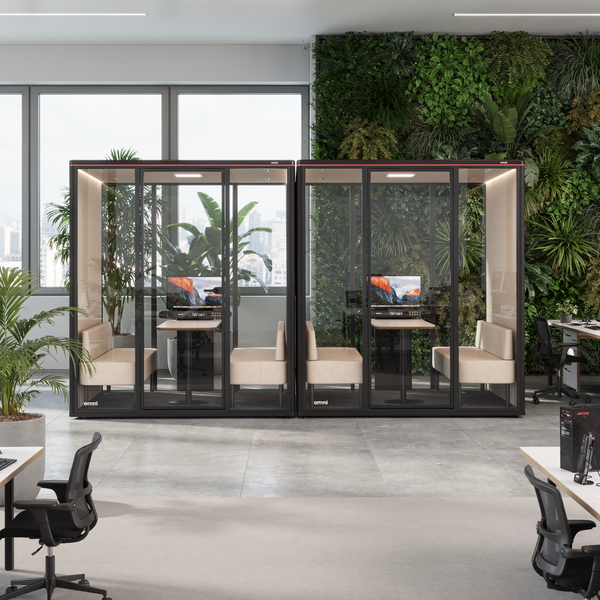

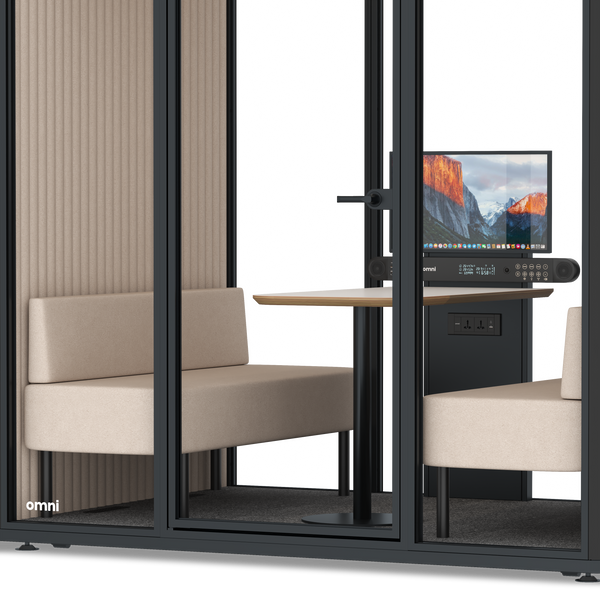

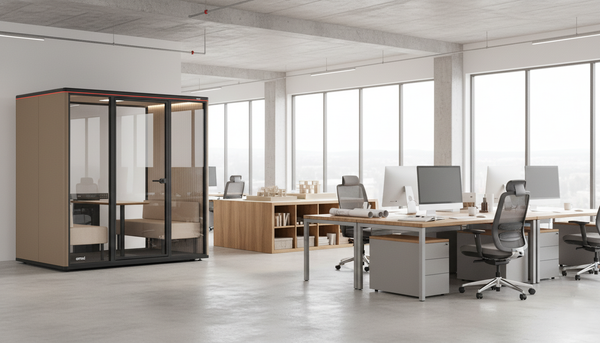

The Omni Four Office Pod is a spacious acoustic meeting pod designed to support team collaboration, presentations, and video conferencing within busy workplace environments. Providing a comfortable enclosed space for up to four people, the Omni Four creates a quiet and controlled environment where teams can meet, collaborate, and communicate clearly without external noise distractions. Available in meeting or lounge configurations, the Omni Four offers flexibility to suit different working styles and office layouts.

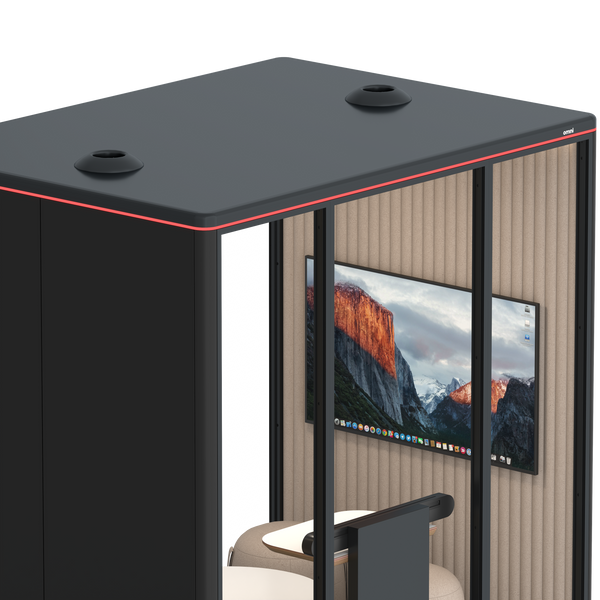

Featuring a sleek wraparound occupancy light and a choice of powder-coated or fully upholstered finishes, the Omni Four integrates seamlessly into modern office interiors while delivering high-performance acoustic control. Using the intuitive touch-screen control panel, users can adjust lighting warmth and airflow to create a comfortable and productive meeting environment tailored to their needs.

Omni acoustic booths are developed as a modular system to introduce privacy, clarity, and cognitive comfort into open-plan offices, educational settings, and industrial environments. With integrated power, lighting, and ventilation, each pod enables users to customise their environment while maintaining flexibility in layout and installation.

Dimensions:

• Overall Size: 2200 × 1600 × 2300 mm
• Optimised footprint with increased internal comfort for extended use

Furniture Options:

• Static Desk
• Height-Adjustable Desk

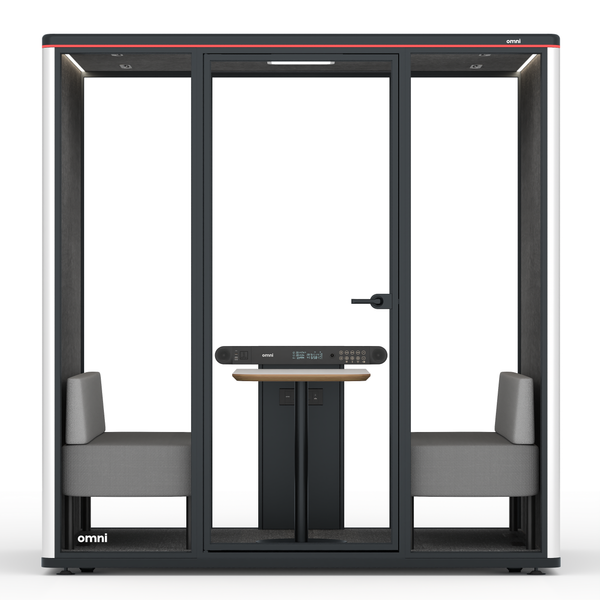

External Finishes:

• Powder Coated
• Wrapped (Gabriel Medley fabric)

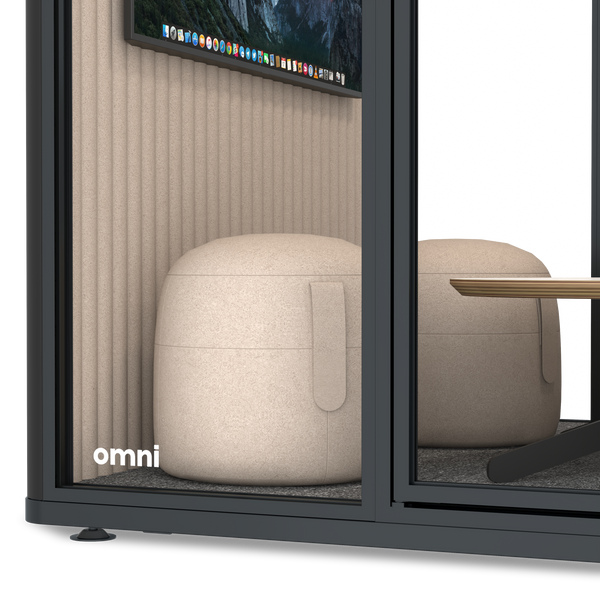

Internal Finishes:

• PET Board (Light Grey / Dark Grey)
• PET Ribbed (Beige / Grey)

Features:

• Spacious interior for enhanced comfort and usability
• Advanced acoustic performance for speech privacy
• Integrated Bluetooth® speaker system
• Centralised power and data hub
• Intelligent ventilation system
• Fully dimmable lighting with adjustable colour temperature
• PIR sensor automation for lighting and airflow
• Soft-close door and premium material finishes

Sound / Acoustics:

• Sound Insulation: 30 dB
• Reverberation Time: RT0.25s
• Certification: SGS Verified
• Standard: Grade A ISO 23351-1 Certified

Designed to significantly reduce speech transmission, ensuring enhanced privacy and focus within open environments.

External Frame & Panels:

• Aluminium construction

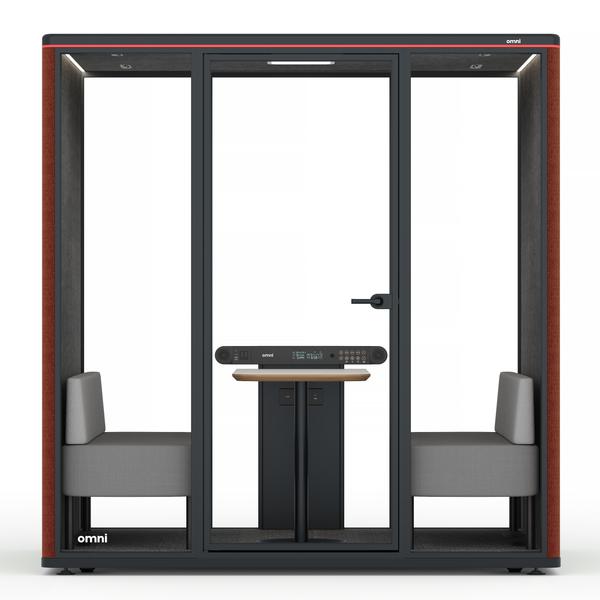

• Powder-coated or upholstered in Gabriel Medley fabric (100% polyester)

Gabriel Medley fabric features a geometric weave with melange yarn, delivering rich colour depth and a textured surface suitable for both commercial and residential environments. Meets Möbelfakta standards.

Glass:

• 10 mm toughened, double laminated glass

Internal Panels:

• Acoustic PET board (recycled materials)

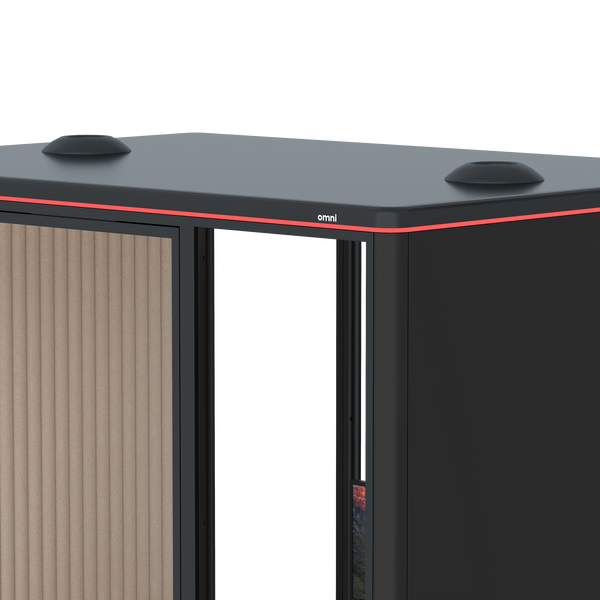

Ventilation:

• Low-noise multi-channel air system
• Turbo fan (Push) Singular Floor Fan (Pull)
• Airflow rate: up to 551 m³/h
• Full air refresh approximately every minute
• Designed for optimal oxygen levels and user comfort

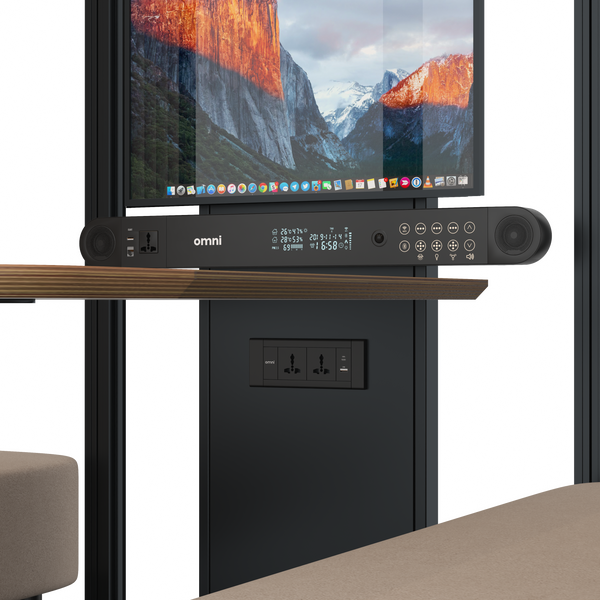

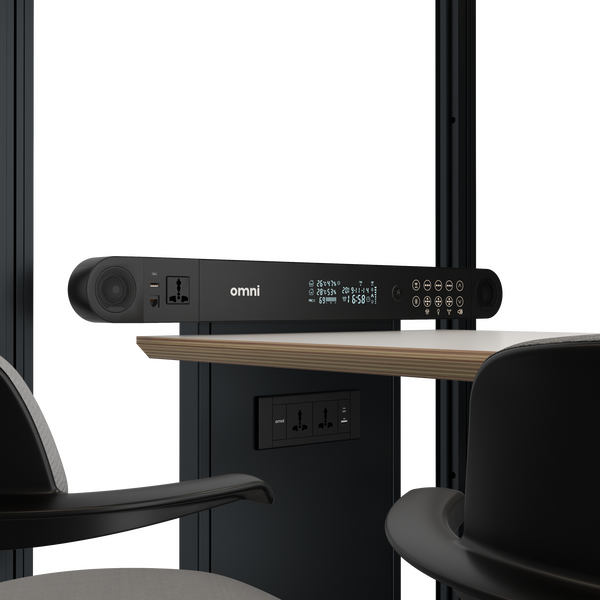

Integrated Control System:

• Centralised control for power, lighting, and data

Power Supply:

• 100 W transformer
• 220–240 V AC universal input
• 1 × USB & USB-C(20 W shared)
• 1 × CAT6 network port

Lighting:

• Fully dimmable (5%–100%)
• Task 5 W lighting (dimmable) + Adj. colour temperature (3000K–6000K)
• Ceiling Strip Light Dimmable
• Red LED occupancy indicator (PIR sensor activated)

Audio:

• Integrated Bluetooth® speakers
• 23 W output
• Auto disconnect after 30 seconds of vacancy

Automation:

• PIR sensor-controlled lighting and ventilation
• Auto activation on entry (50% power)
• Auto shutdown on exit 30 seconds

Power Consumption:

• 100 W total capacity
• ~48 W typical internal usage (Solo Booths)
• Remaining capacity available for additional accessories

Safety Features:

• Smoke detection (Retro Fit)
• Sprinkler compatibility
• Emergency safety hammer
• Fire-rated cavity foam (independently certified to EN standards)
• Fire-rated PET Board (independently certified to EN standards)
• Formaldehyde-free (no wood or glue used)

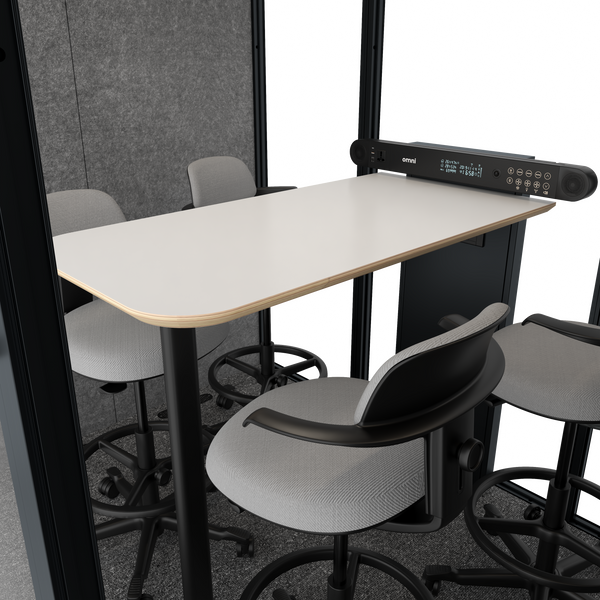

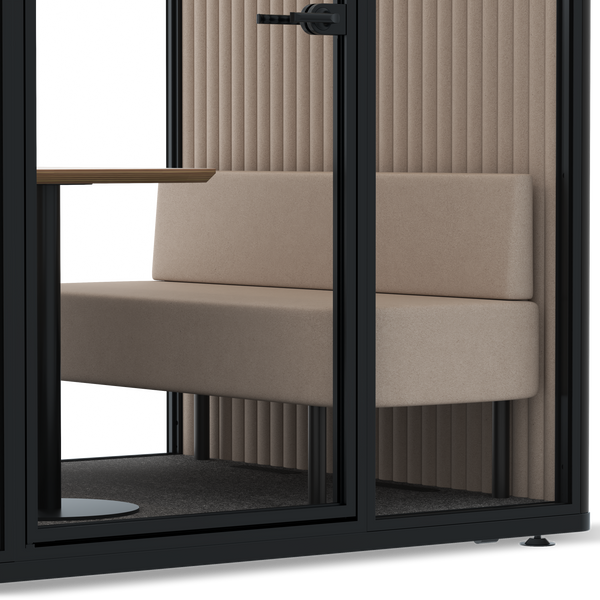

Furniture:

The Omni Four can be configured with a range of furniture options designed for:

• Focused individual work
• Video conferencing
• Extended work sessions

Optional integrations include monitor setups and Logitech conferencing equipment for enhanced functionality.

Sustainability:

• 100% recyclable structural and panel materials
• Designed for easy disassembly and end-of-life recycling
• Approx. ≥180 kg recycled materials per unit
• Carbon footprint: ≤0.071 kg CO₂e
• Energy consumption: ≤0.4 MJ
• Backed by a 5-year warranty (Frame)
• Backed by a 2-year warranty (Electrical)
