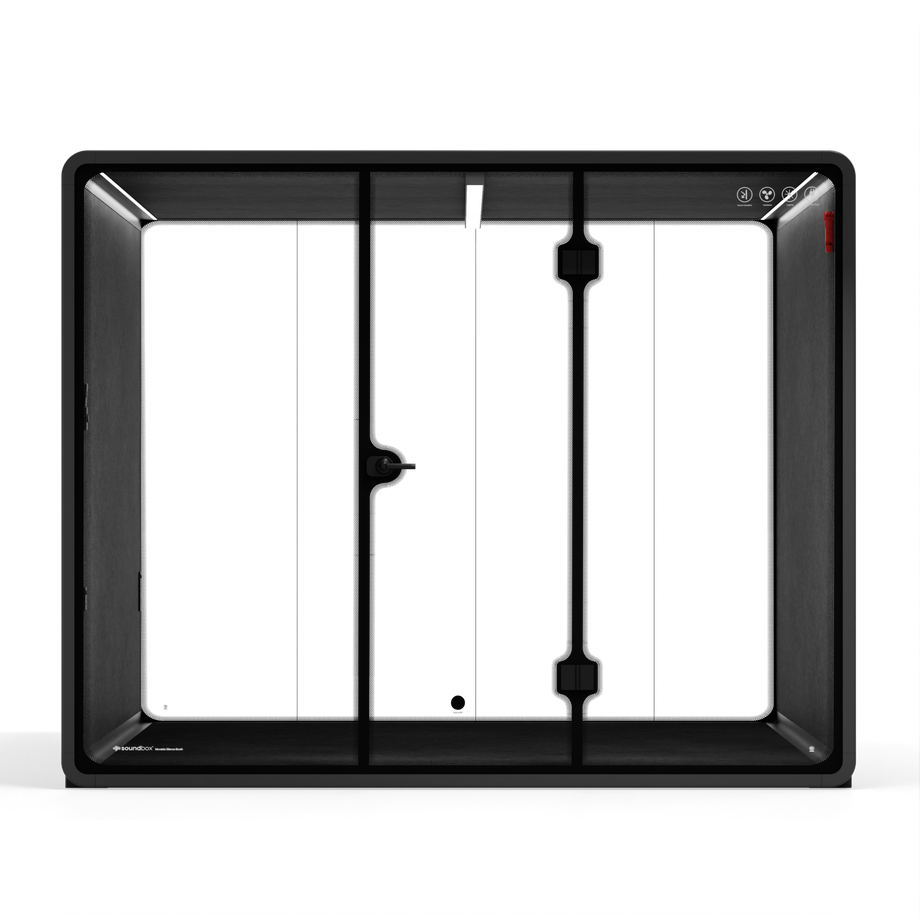

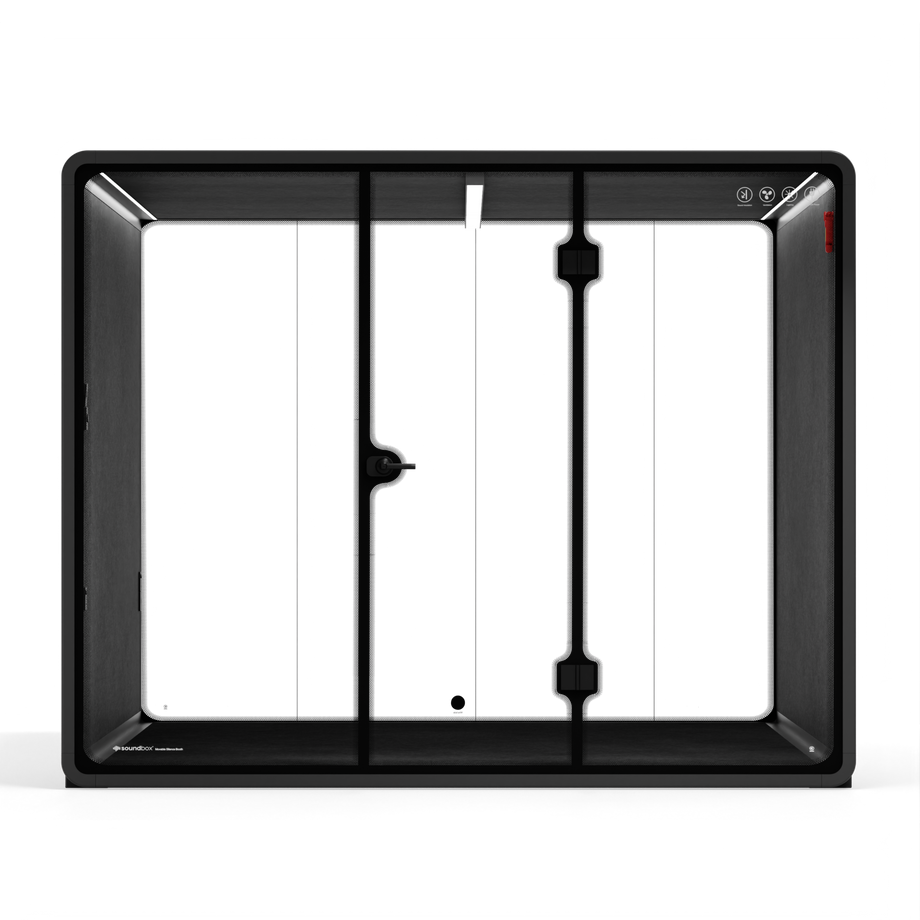

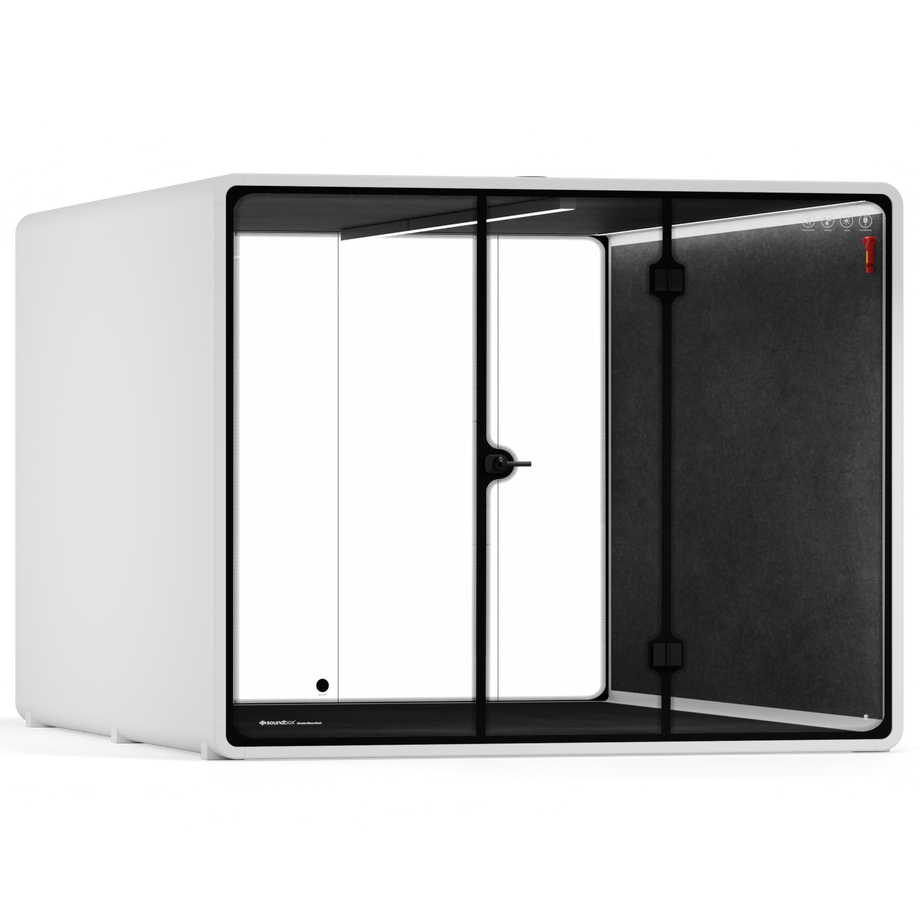

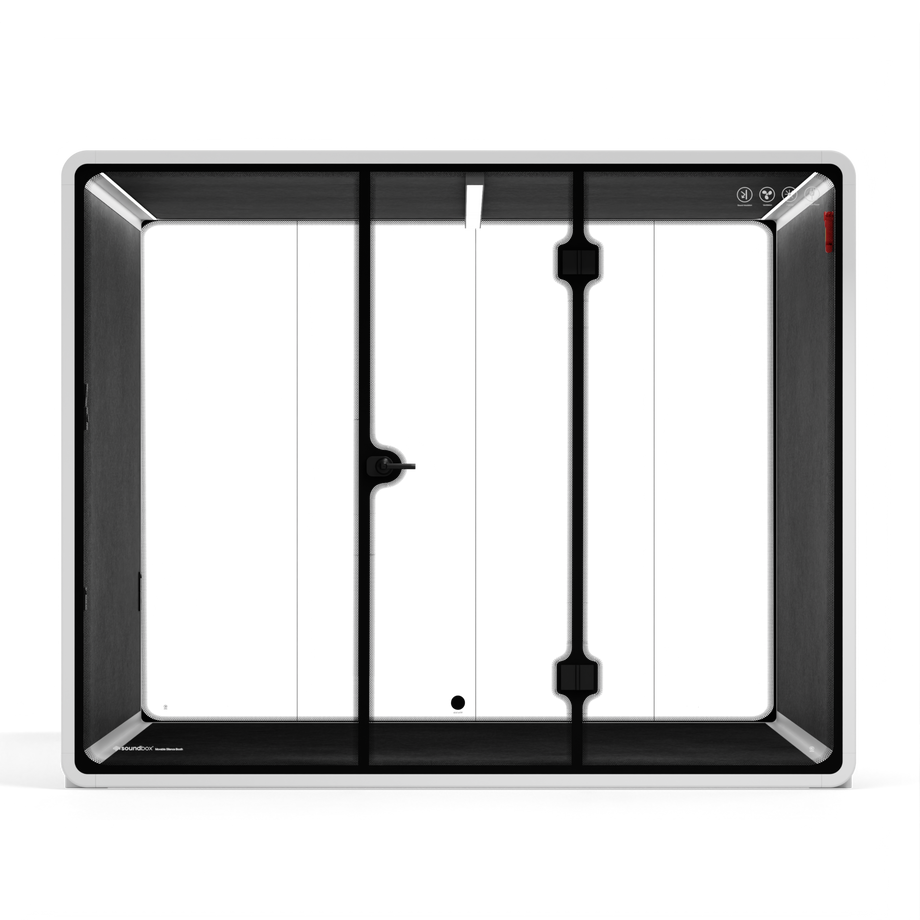

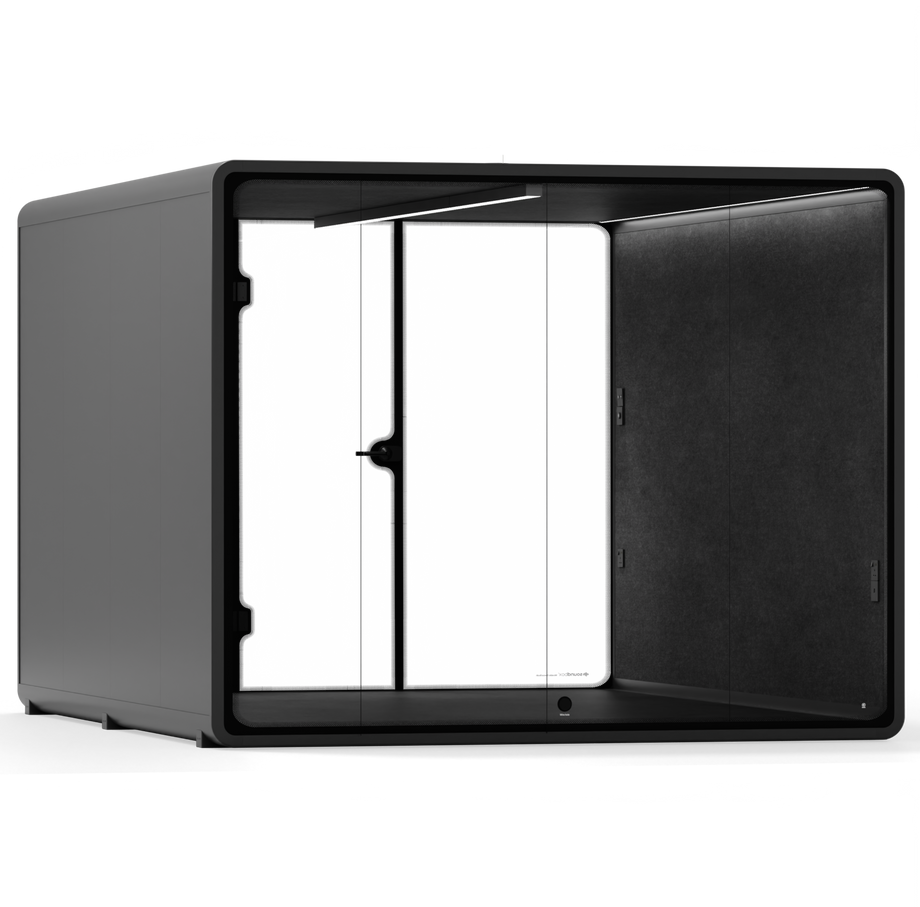

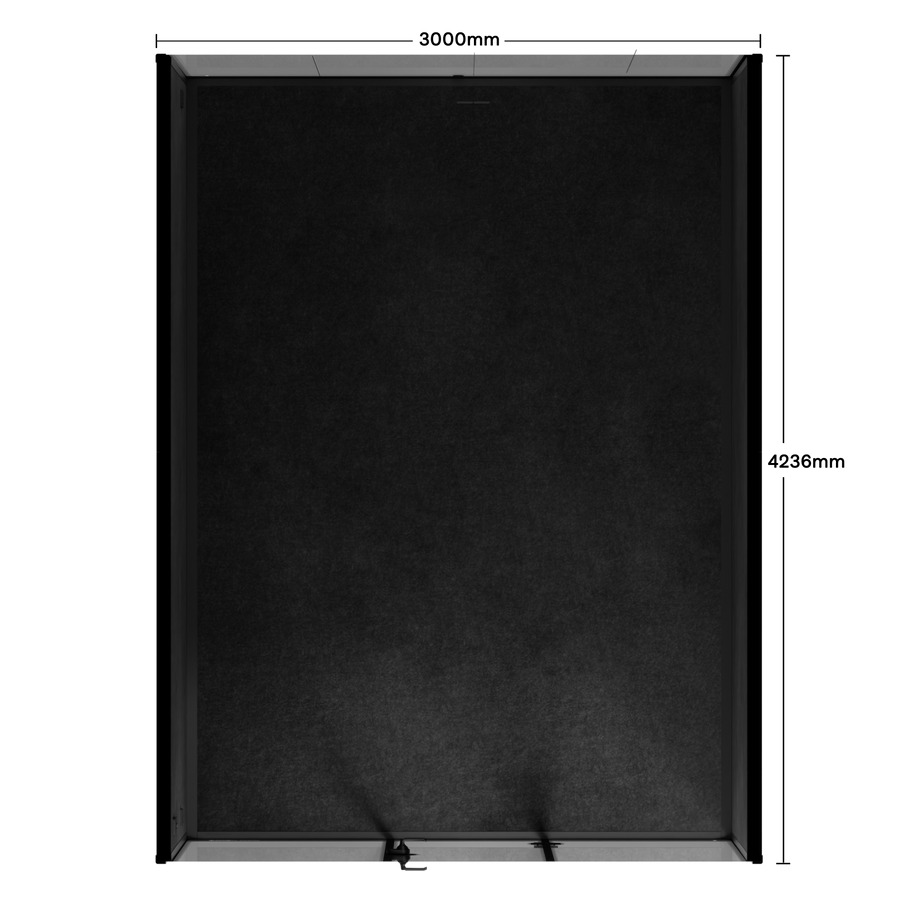

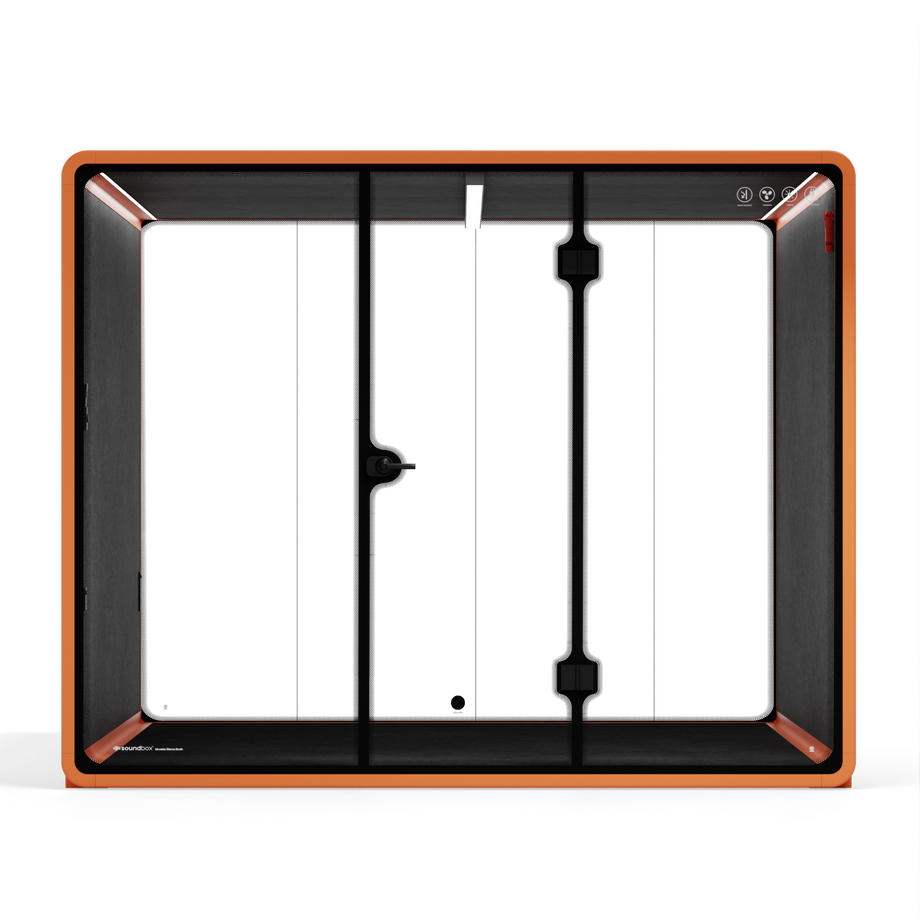

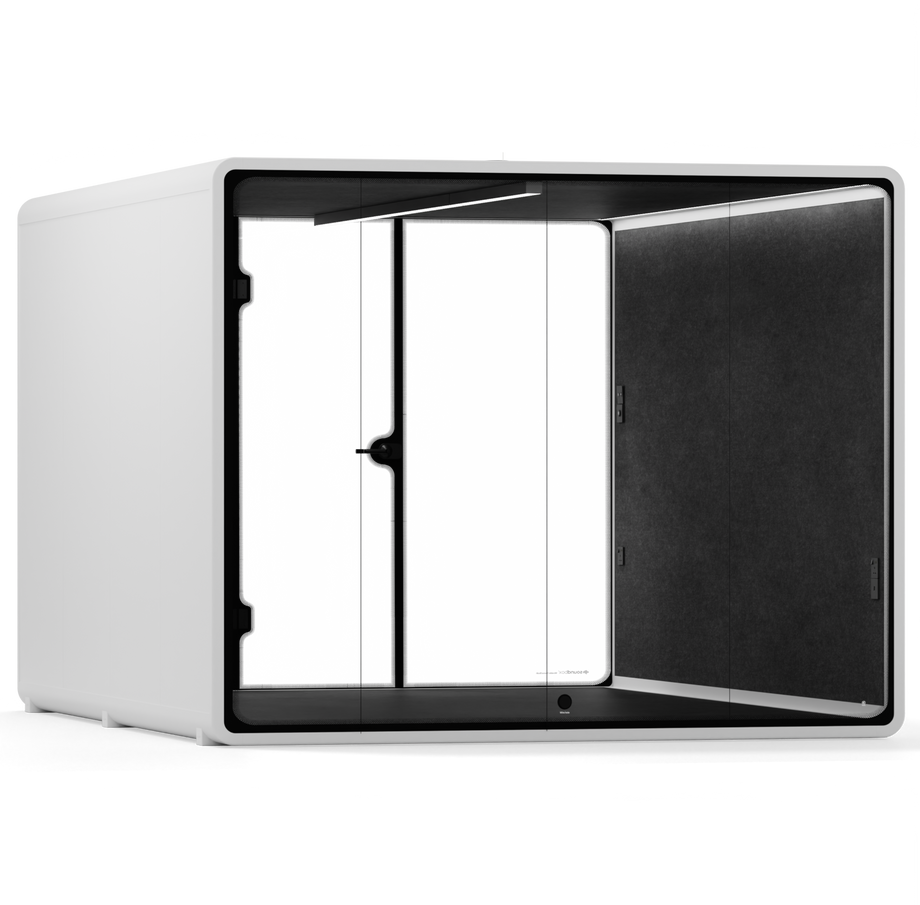

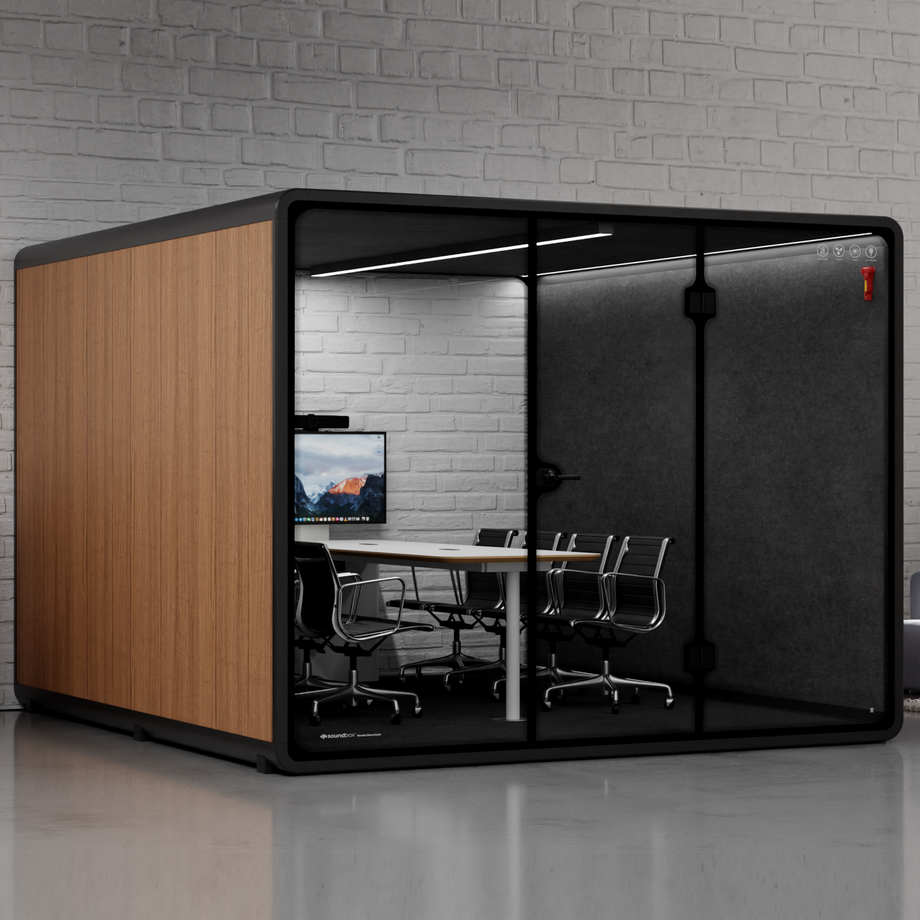

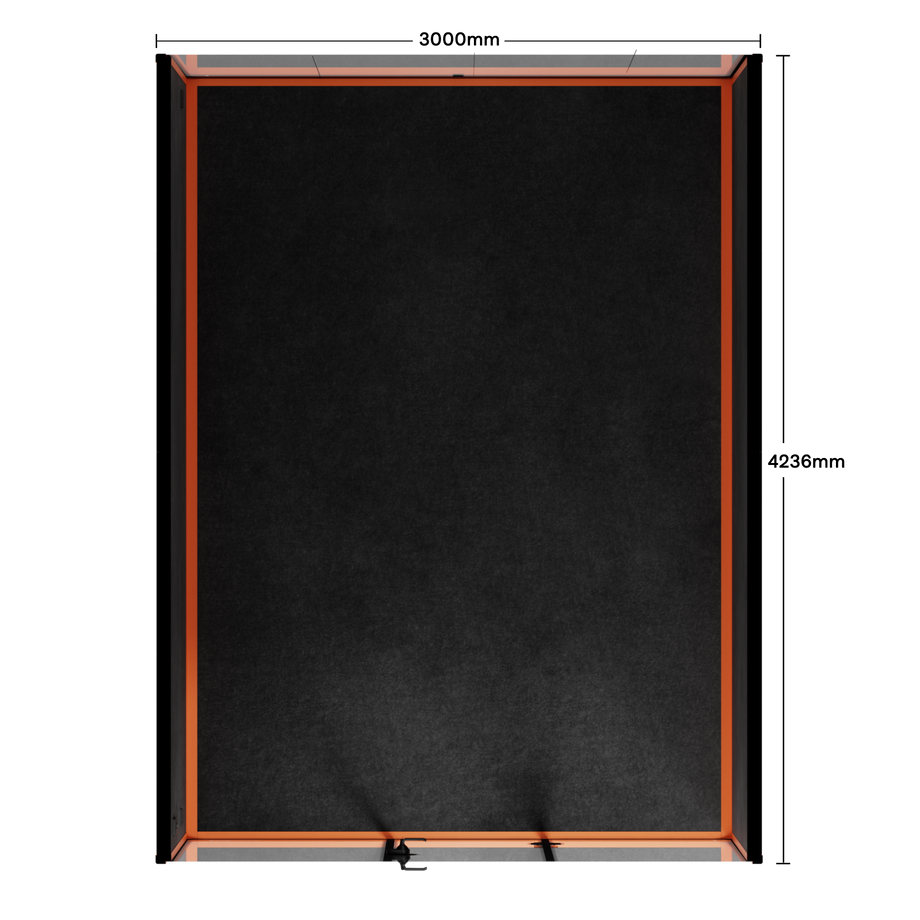

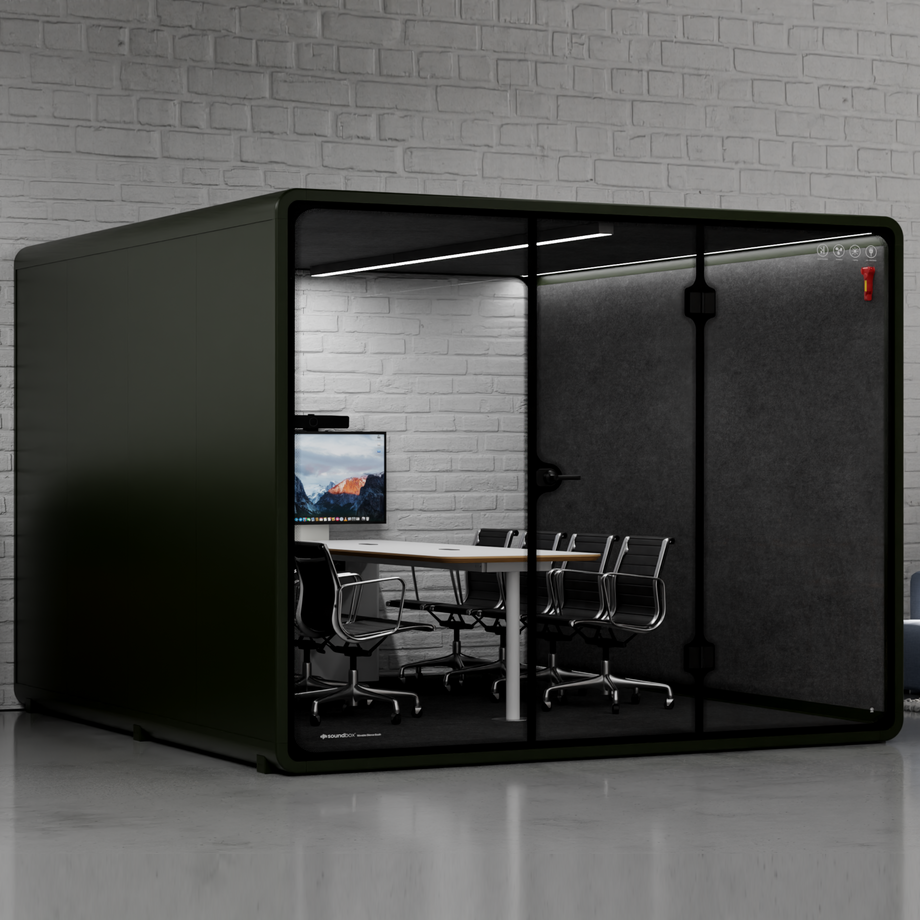

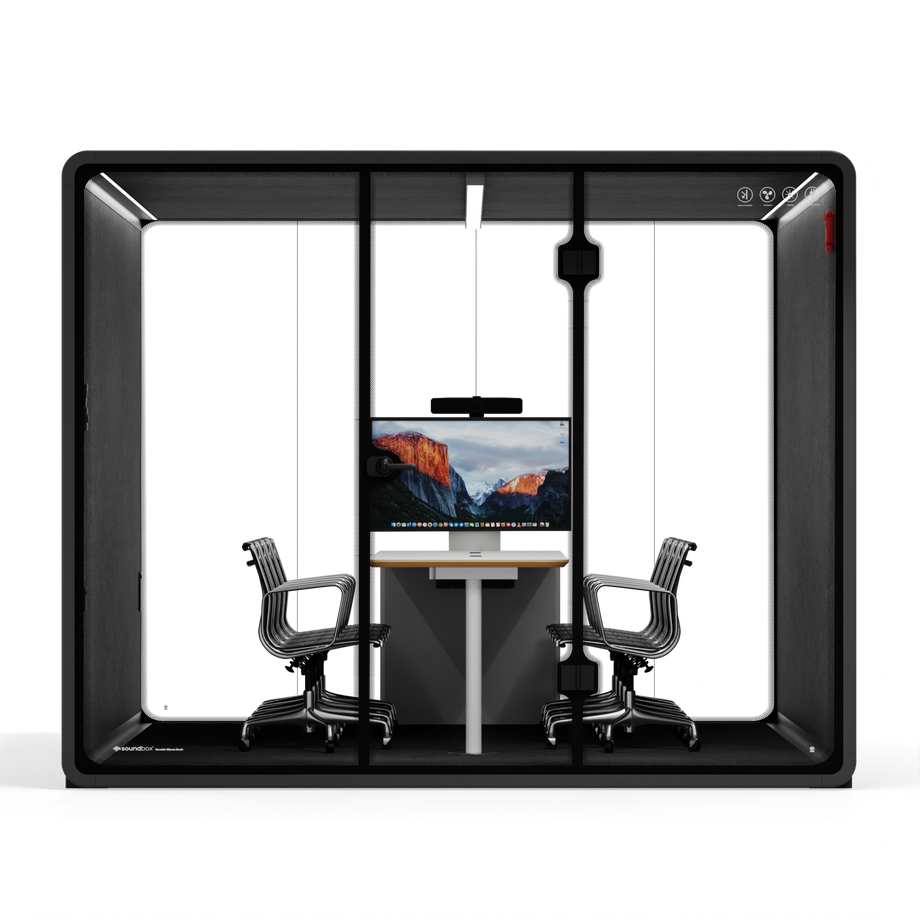

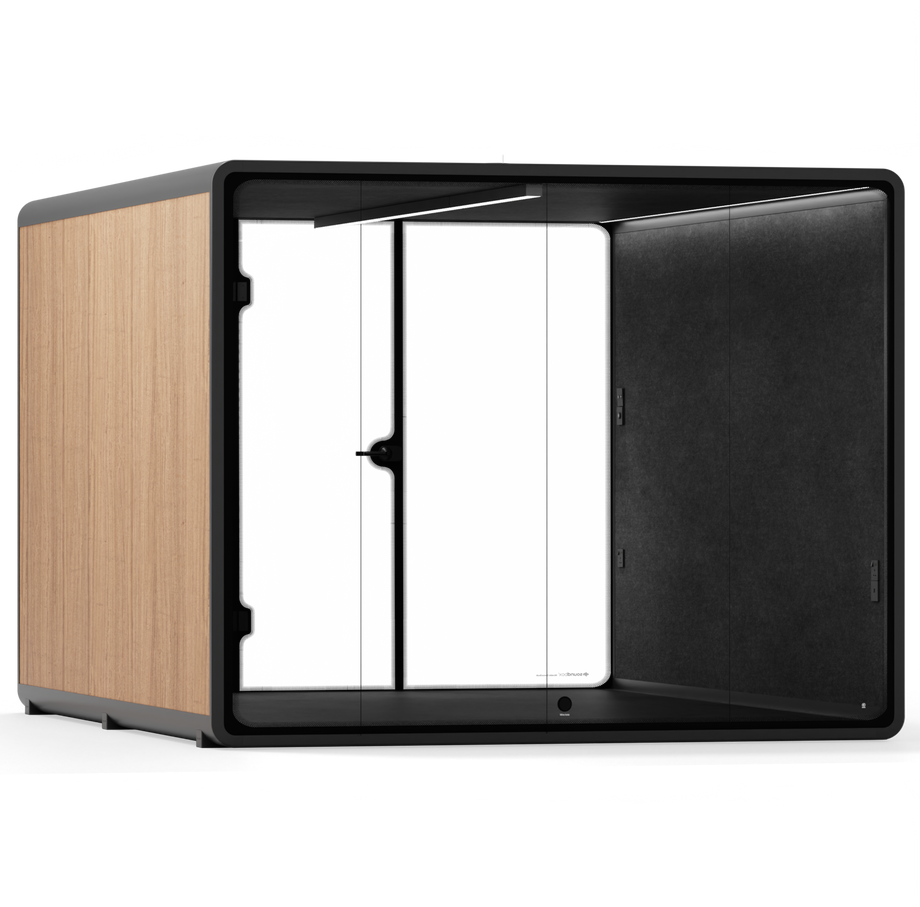

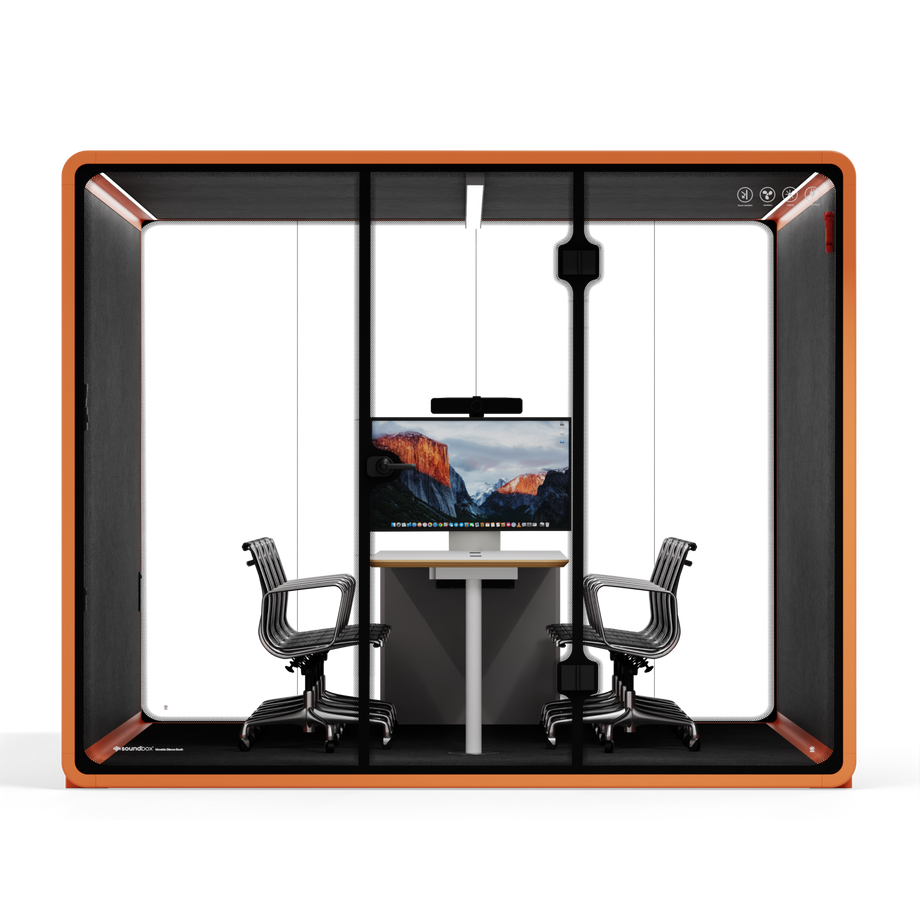

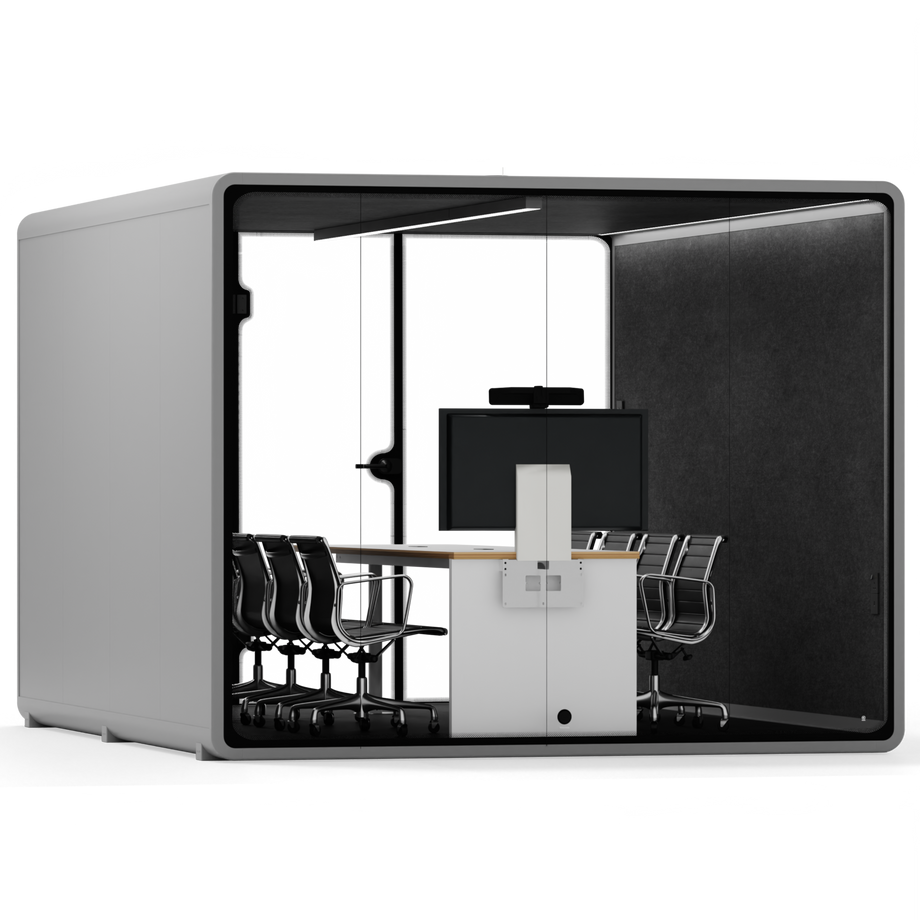

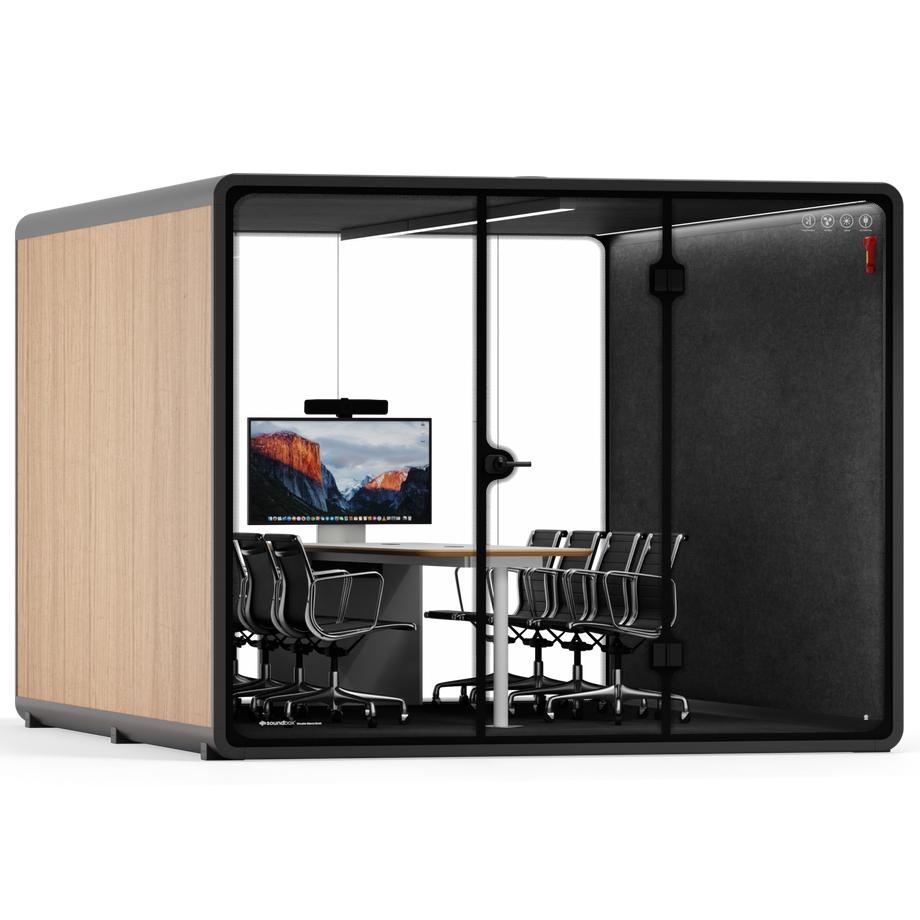

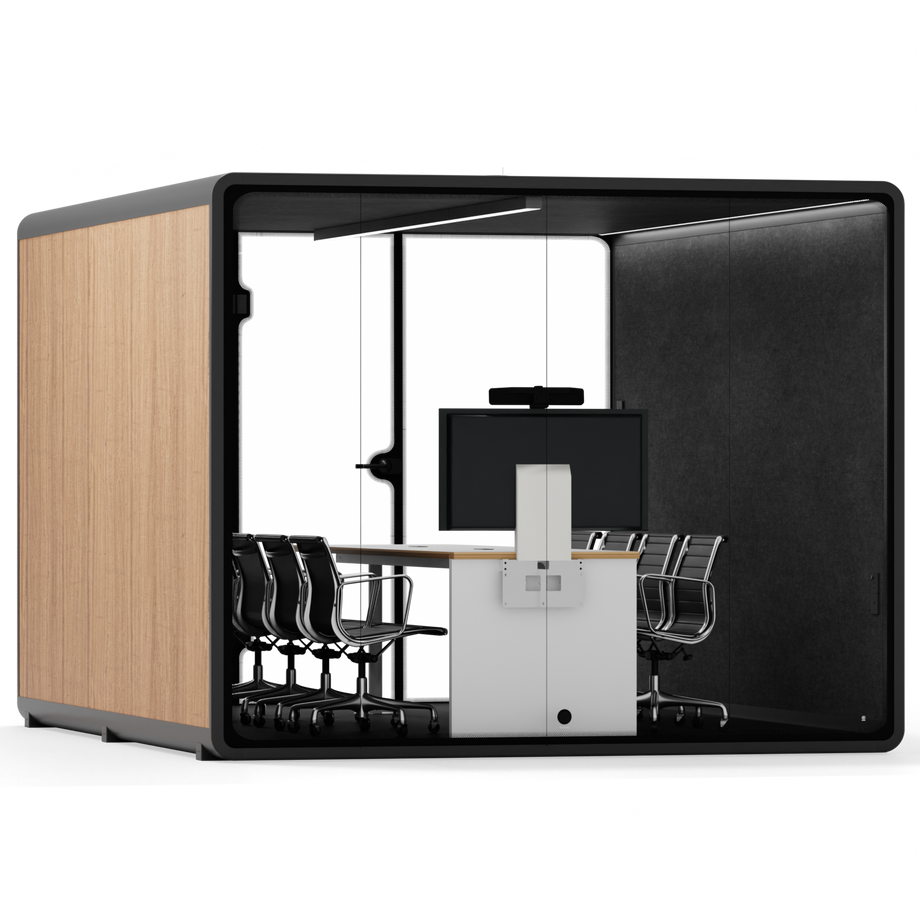

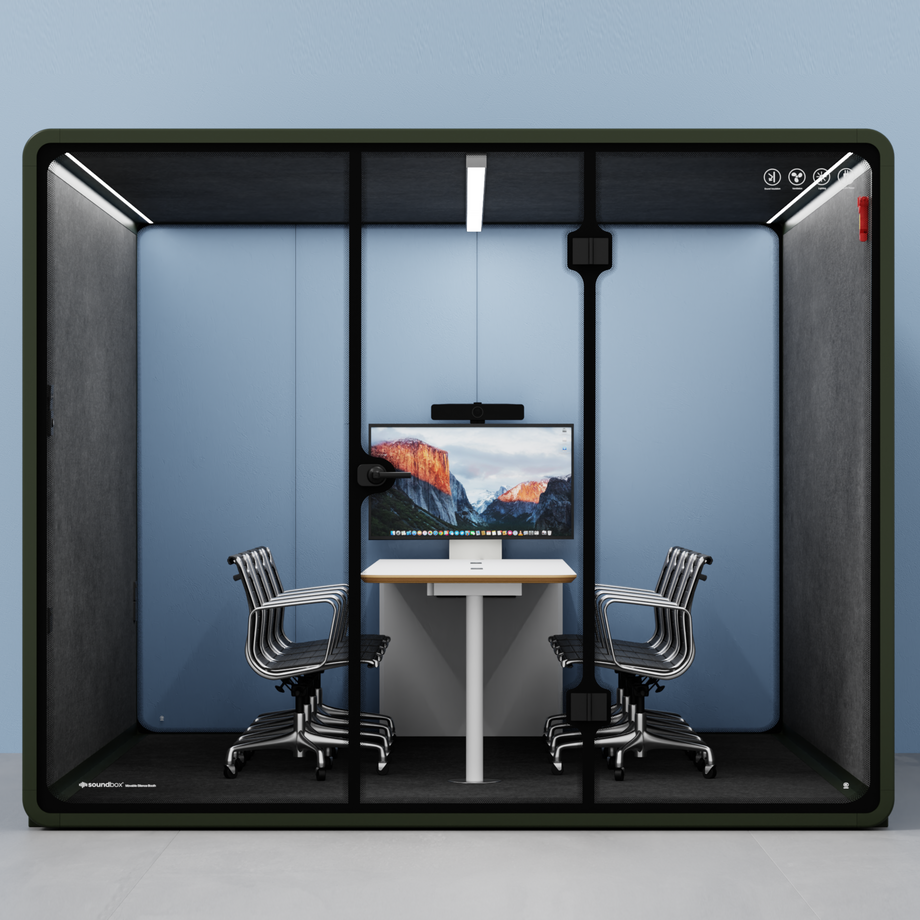

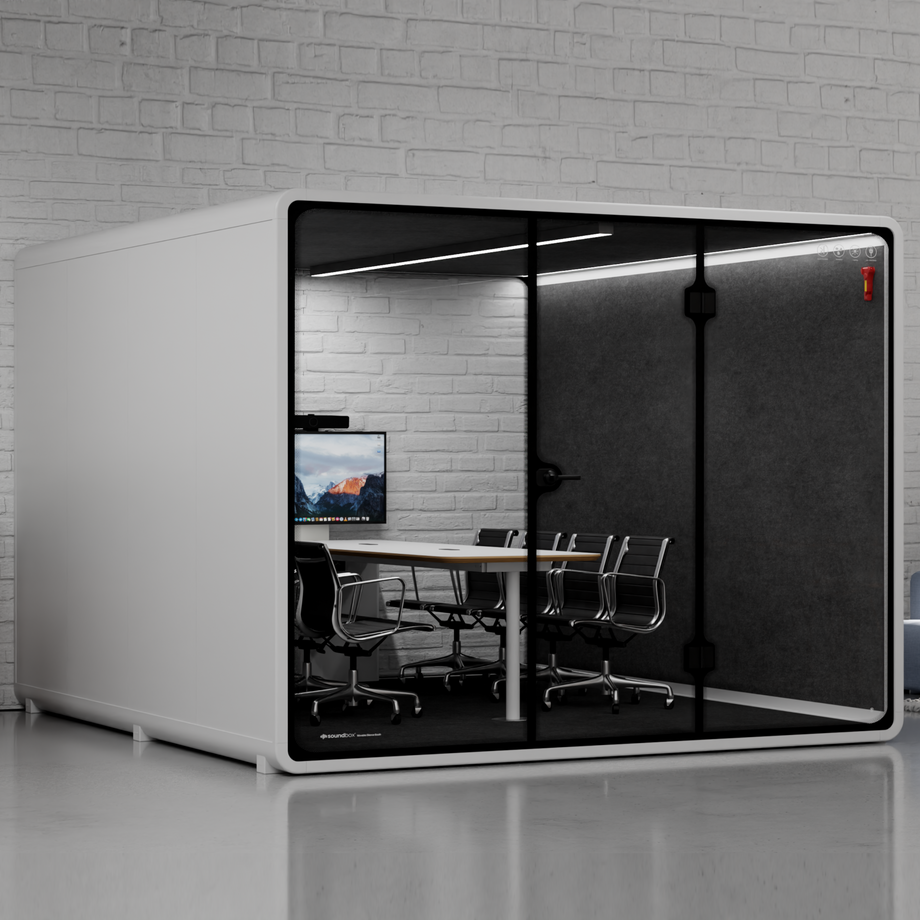

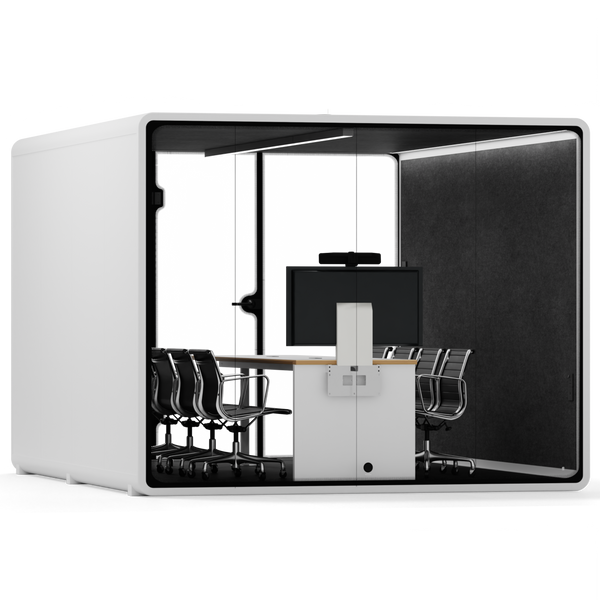

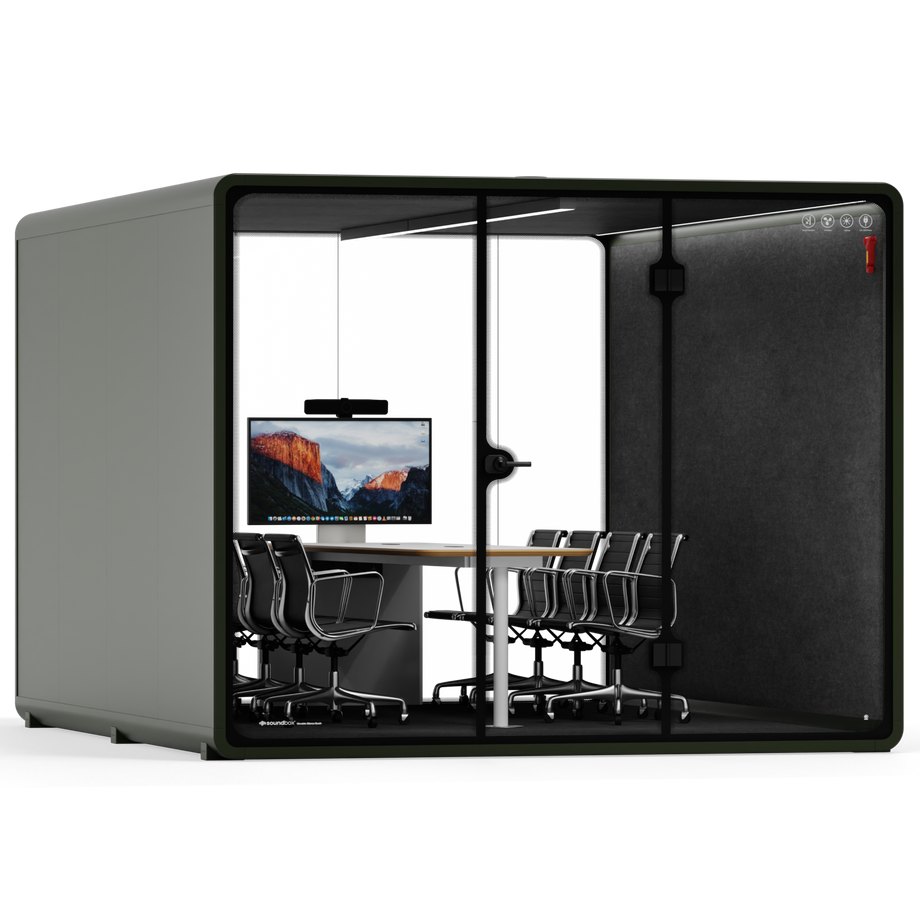

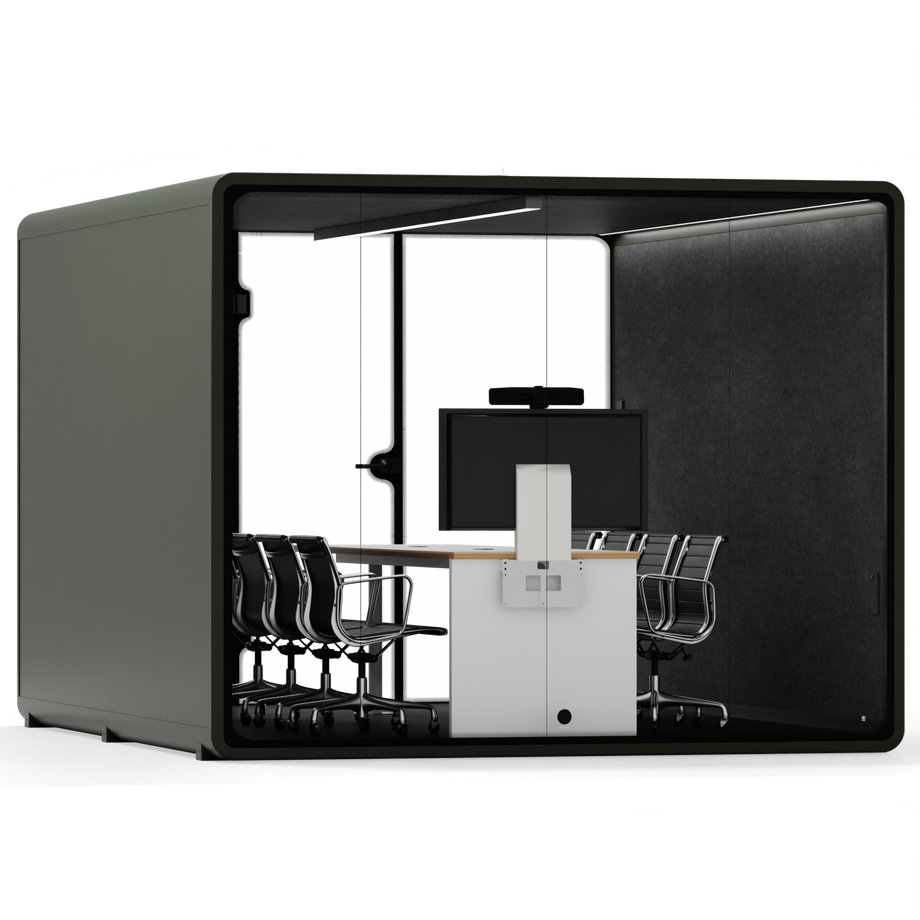

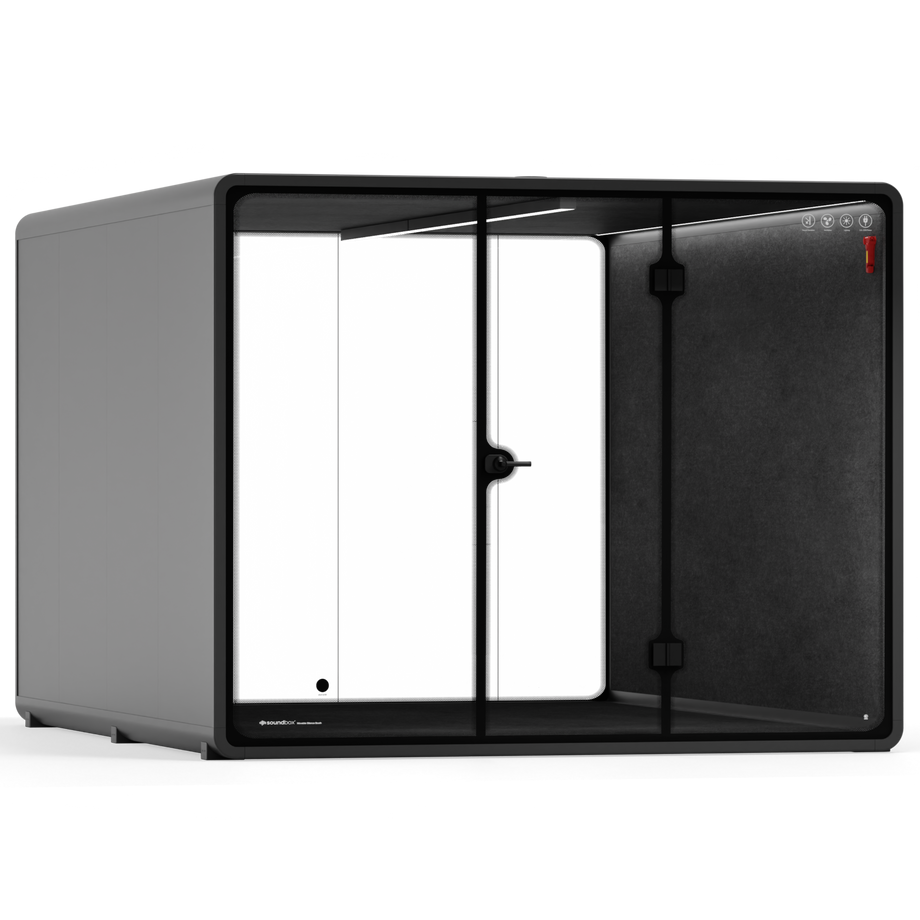

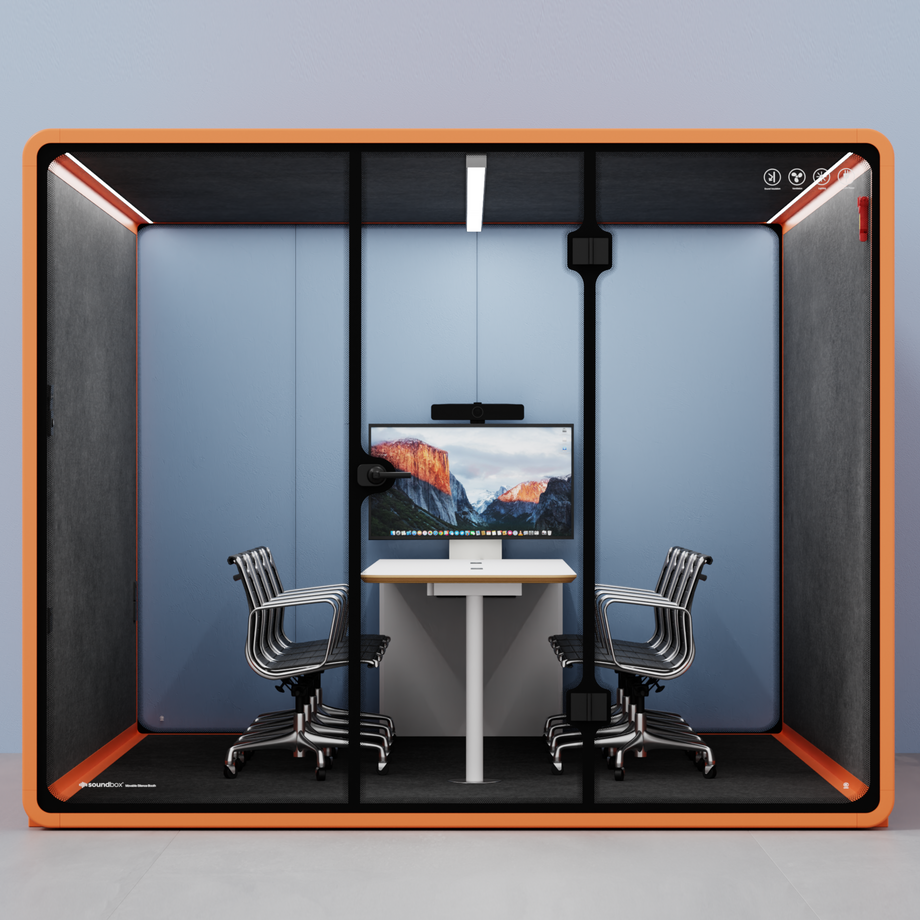

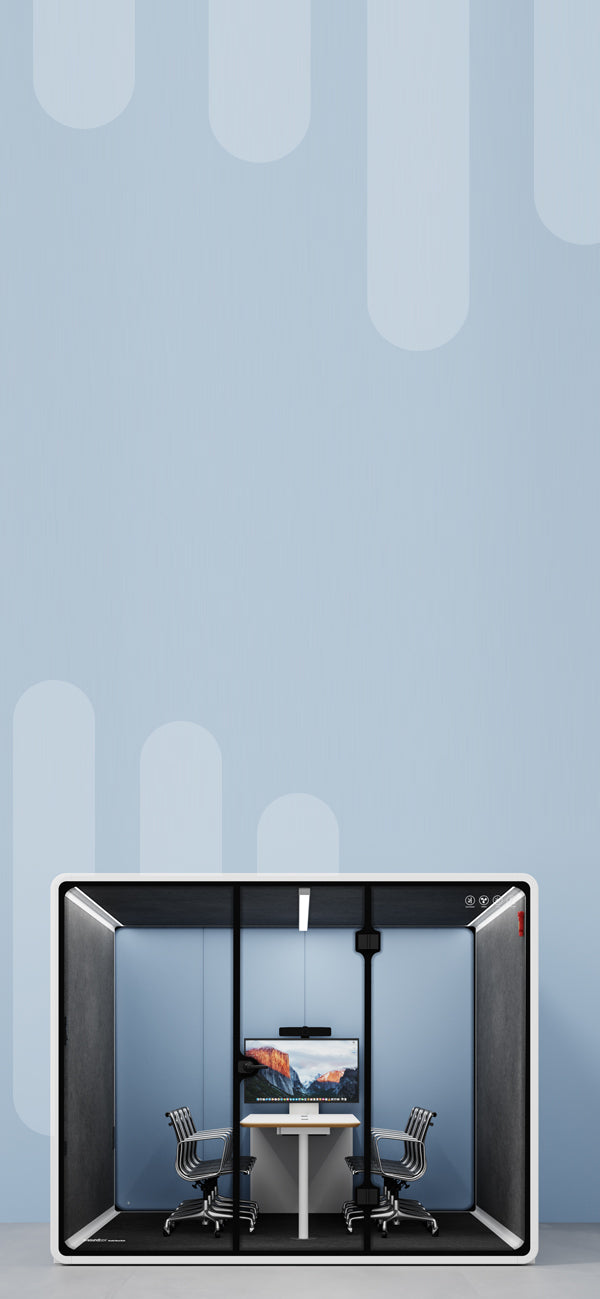

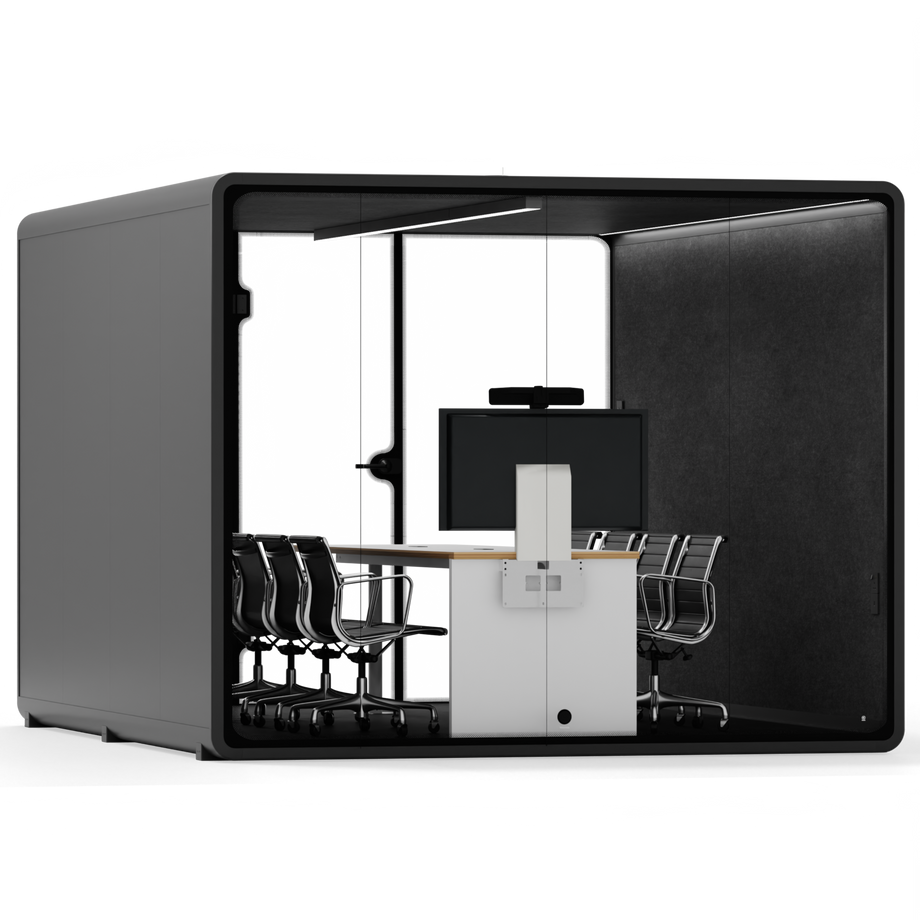

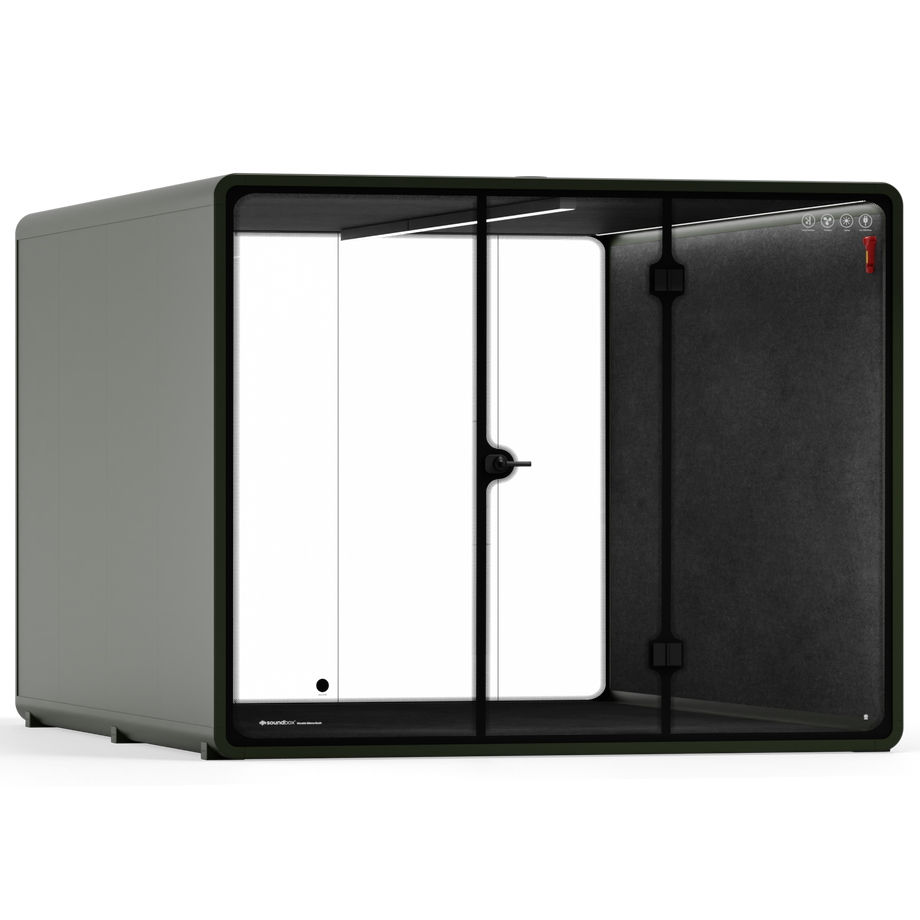

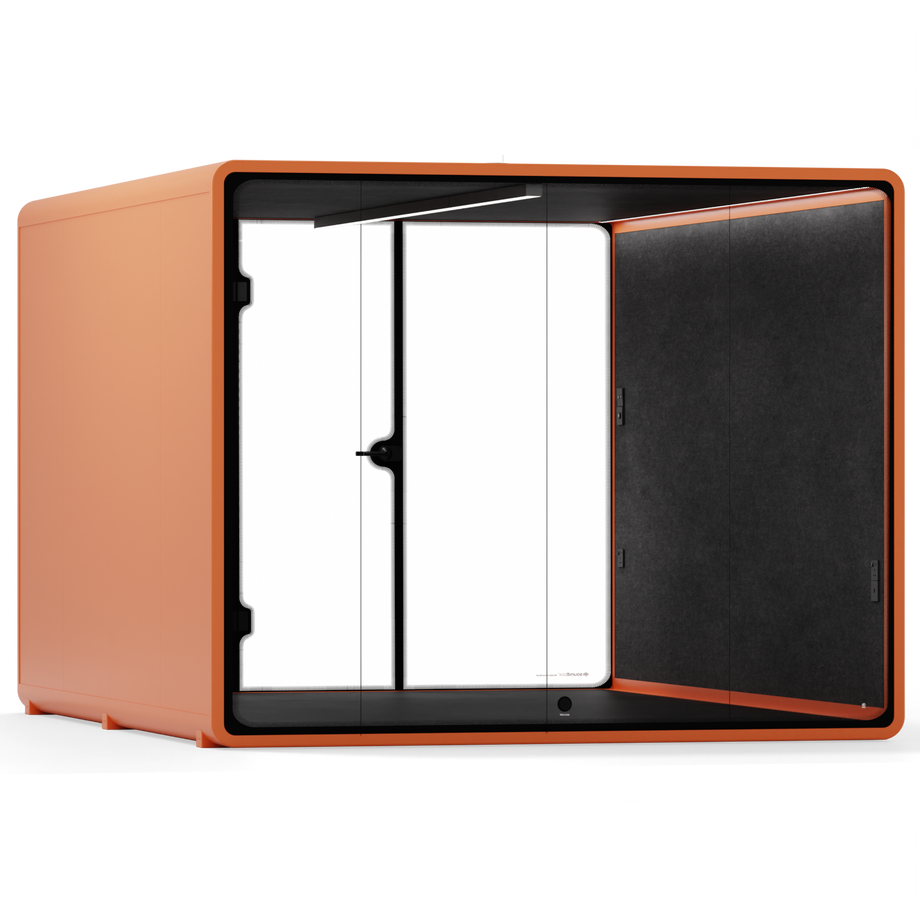

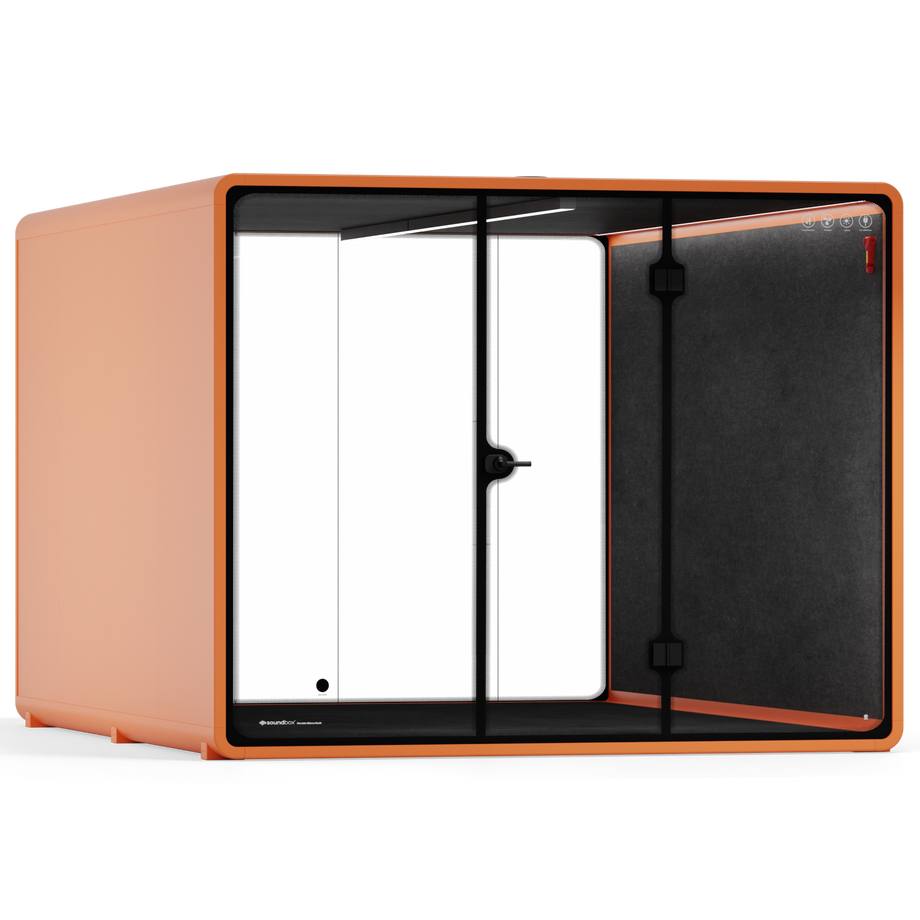

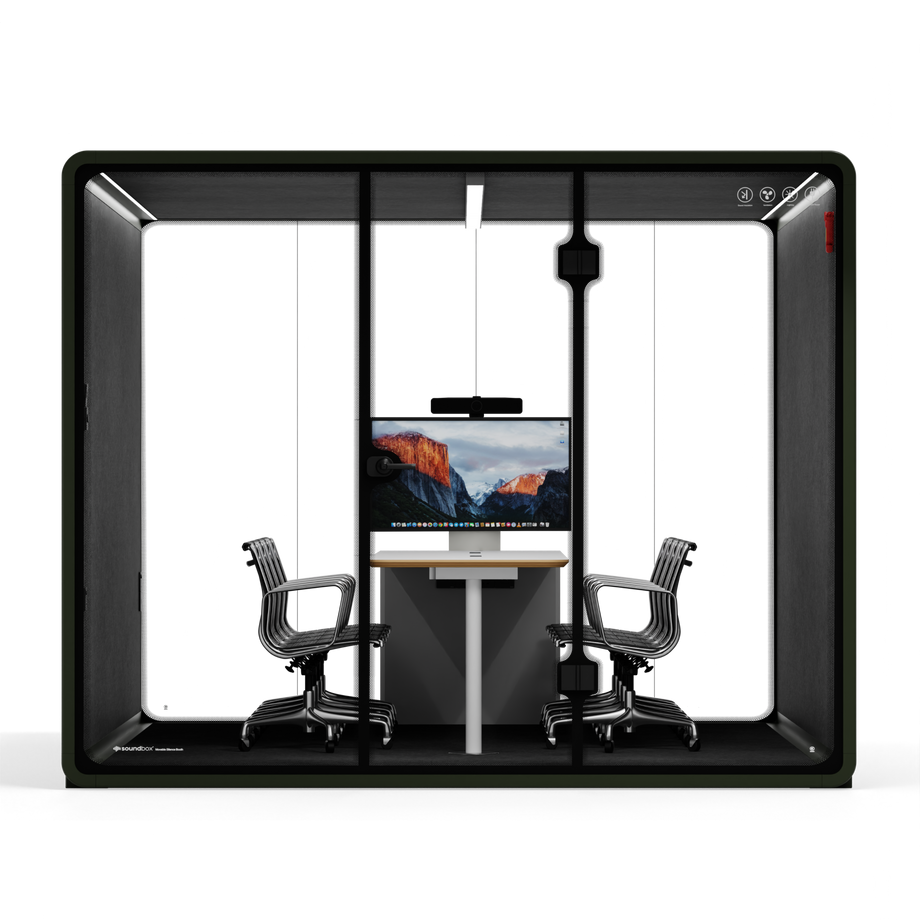

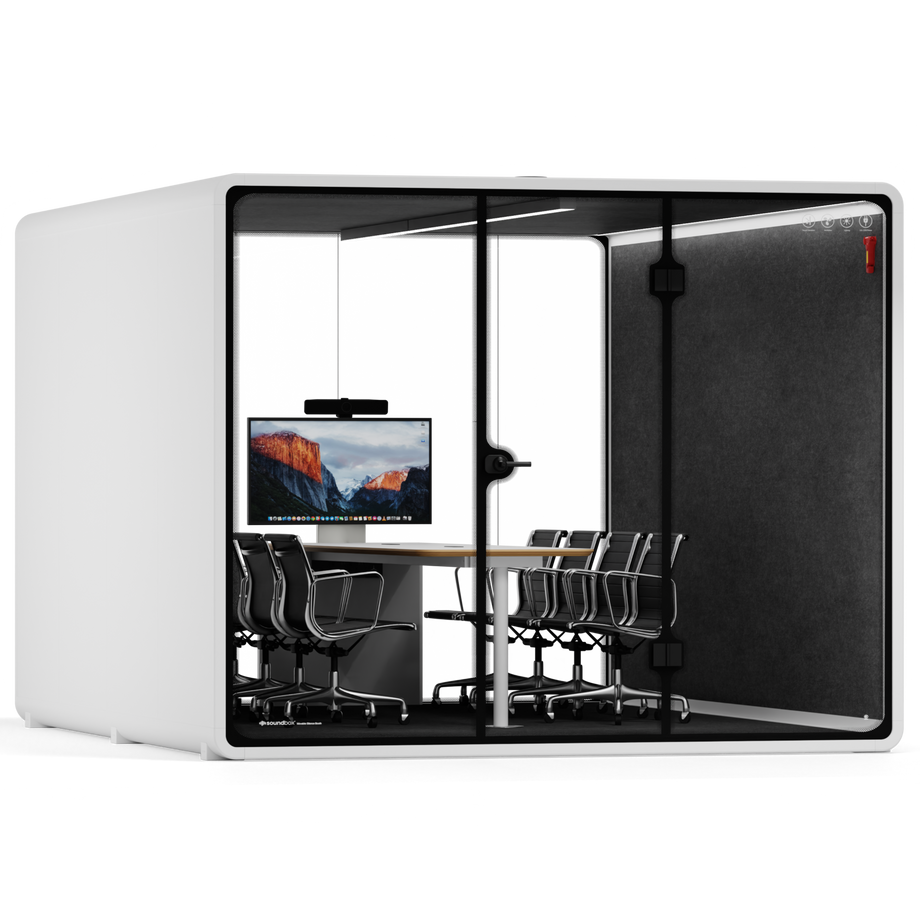

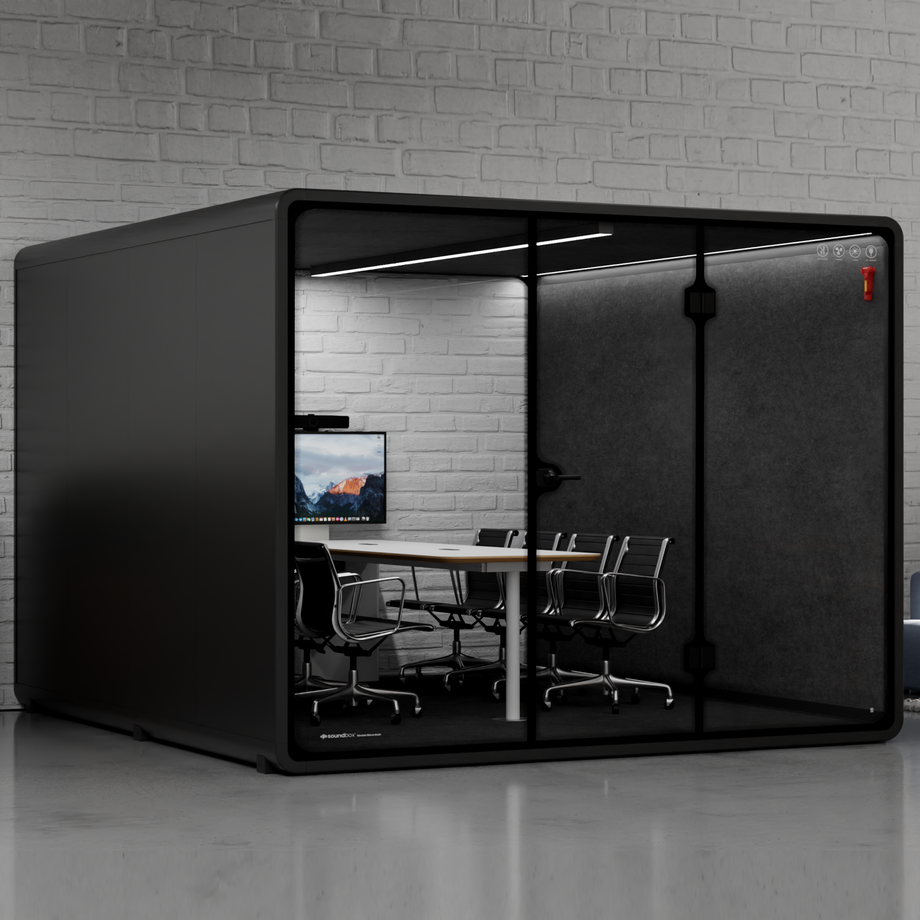

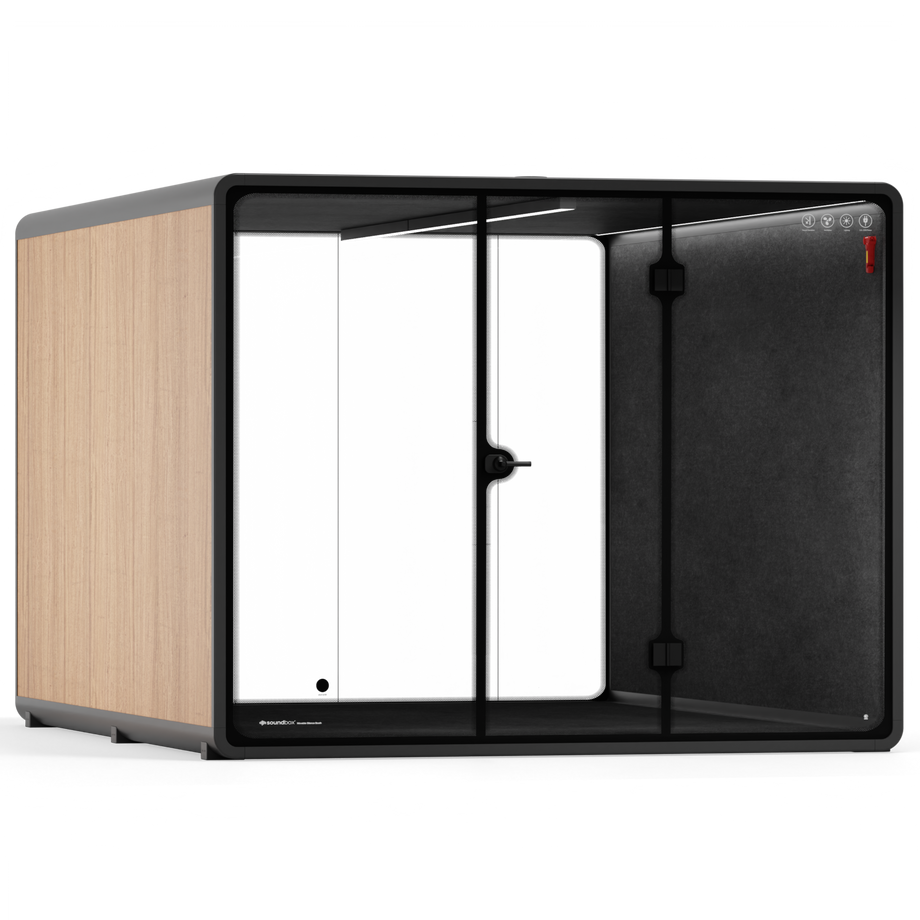

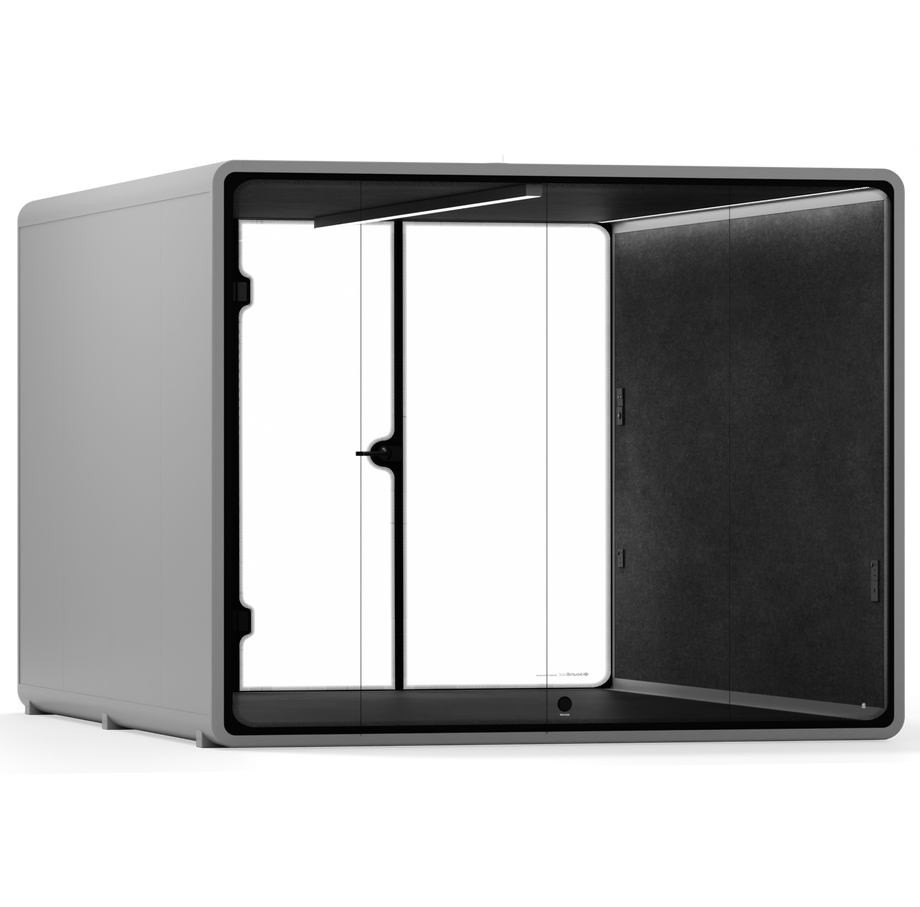

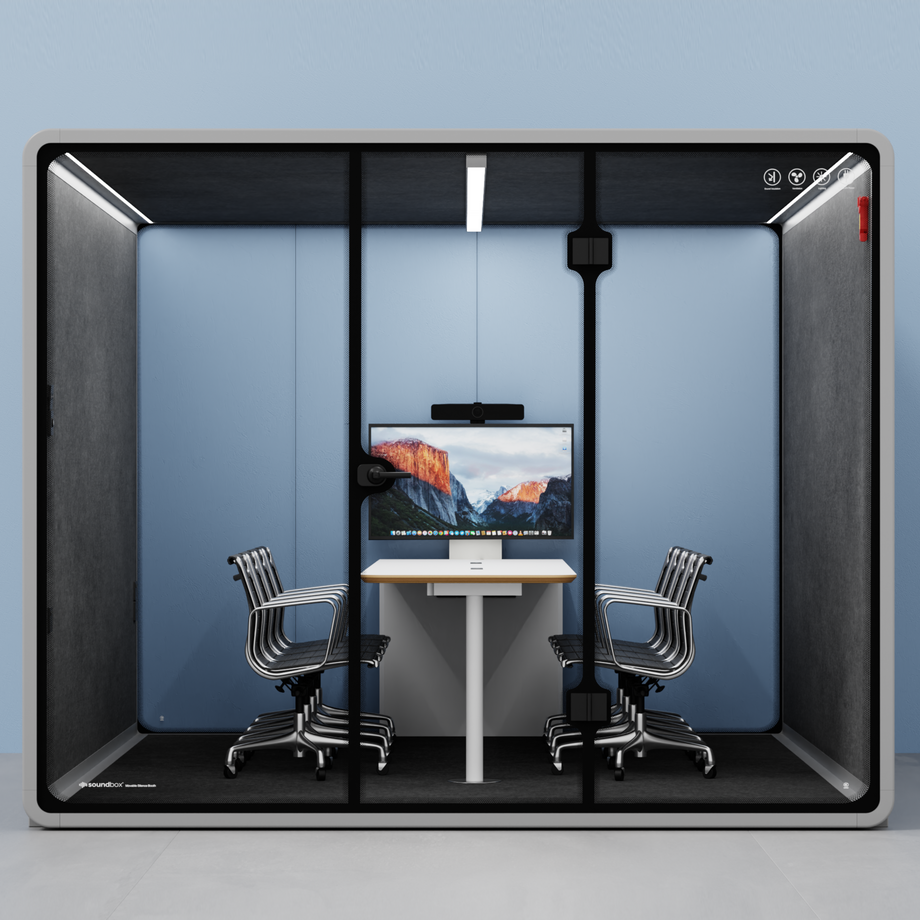

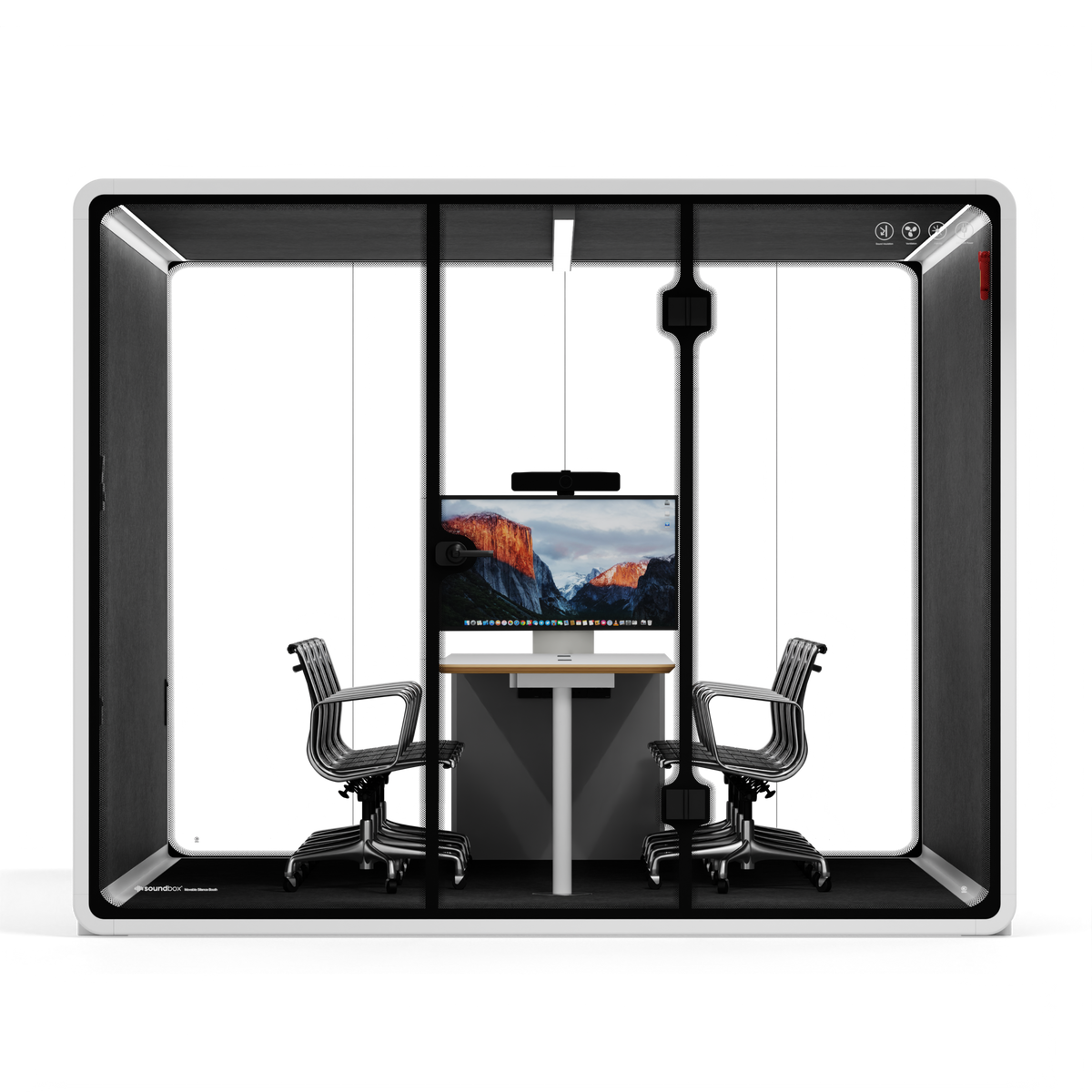

Quell Max - Club House
Acoustic Meeting Booth
ColorWhite
Inside ColorDark Grey
Furniture
POA
Price on application
ISO 23351-1Acoustic
TÜV · UL · CETested
BluetoothSpeaker
In stockNow
Info
Overview
About the Quell Max - Club House.

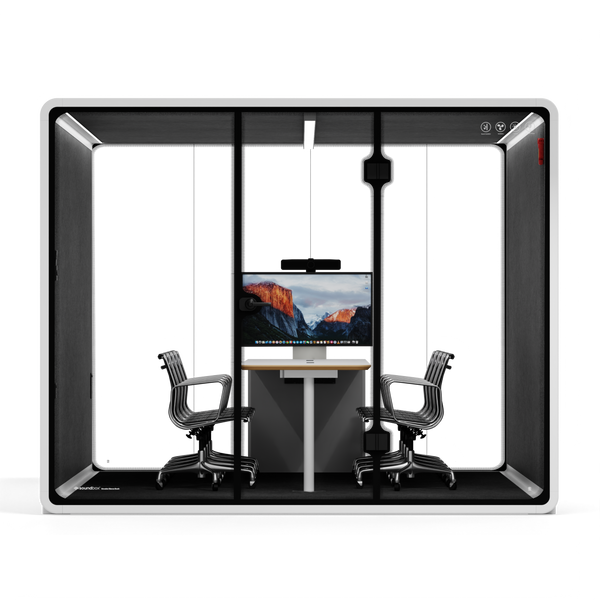

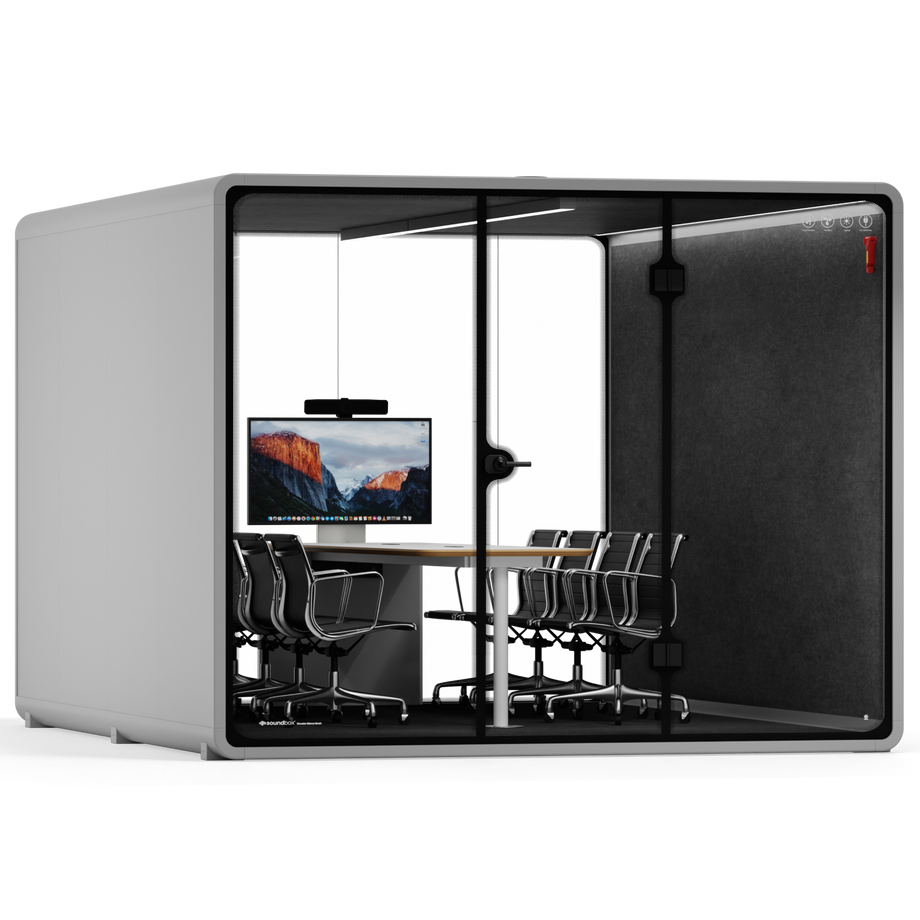

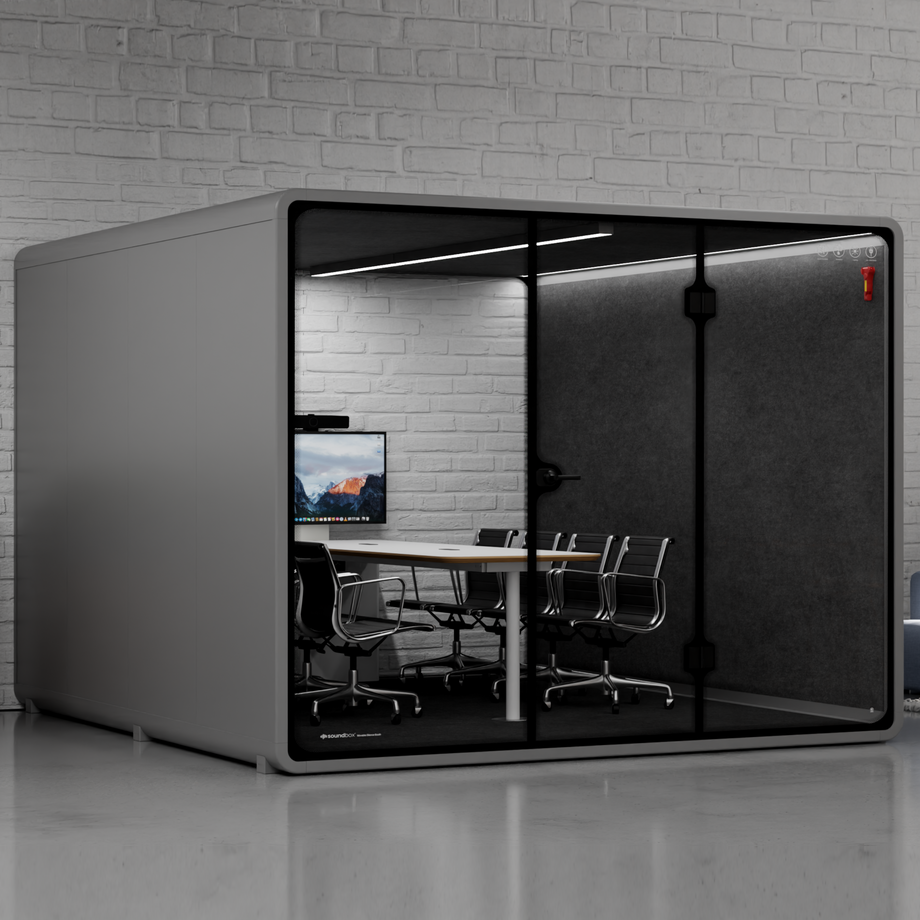

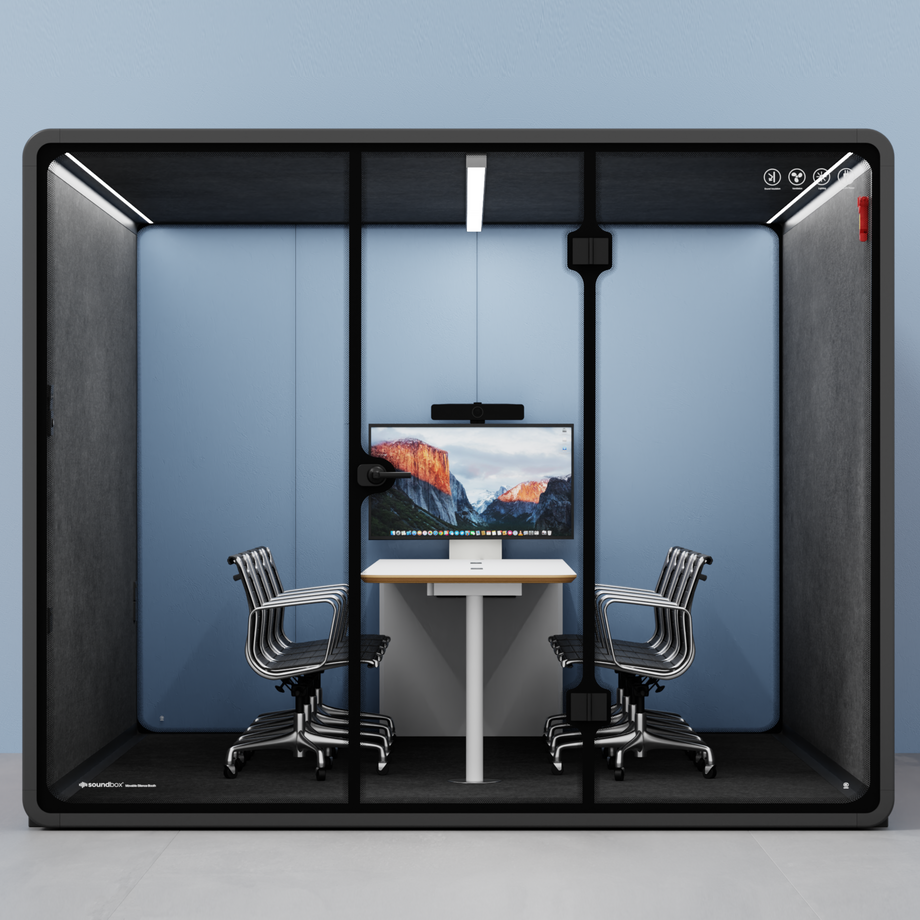

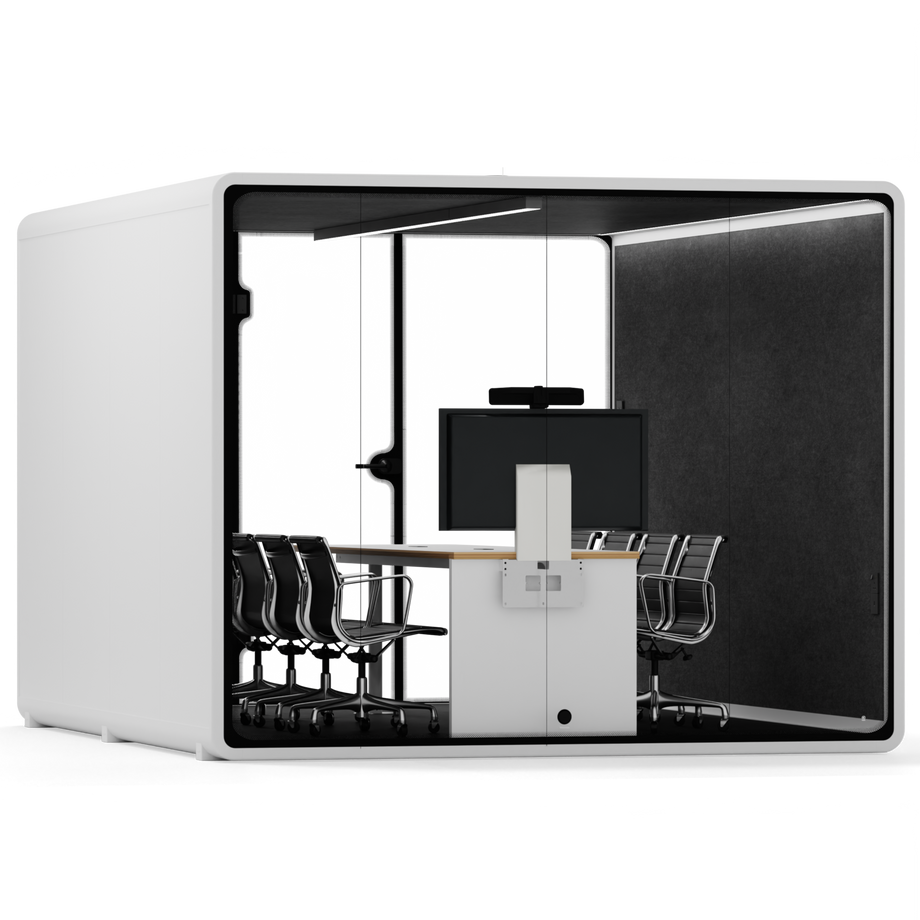

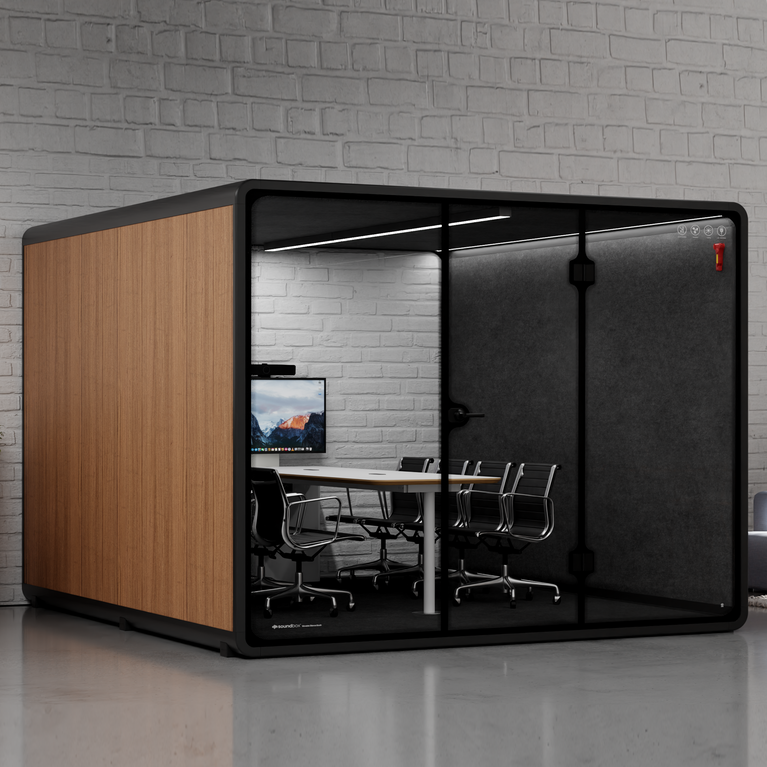

Our conference booth/club house accommodates 8 People comfortably. A roomy conference pod featuring premium acoustic qualities. Equipped with a 6 * turbo silent fan ventilation system, this acoustic meeting booth delivers industry-leading airflow to maintain a comfortable and distraction-free atmosphere. The booth is crafted to motivate your team and support their focus on the task at hand, minimizing both internal and external acoustic disturbances.
Inside, the space is well-ventilated, cool, cozy, and roomy, making it ideal for conference calls, private meetings, or group Zoom sessions. Furniture selections include high-quality sofas and tables, with the option to add a monitor stand (Monitor not included).

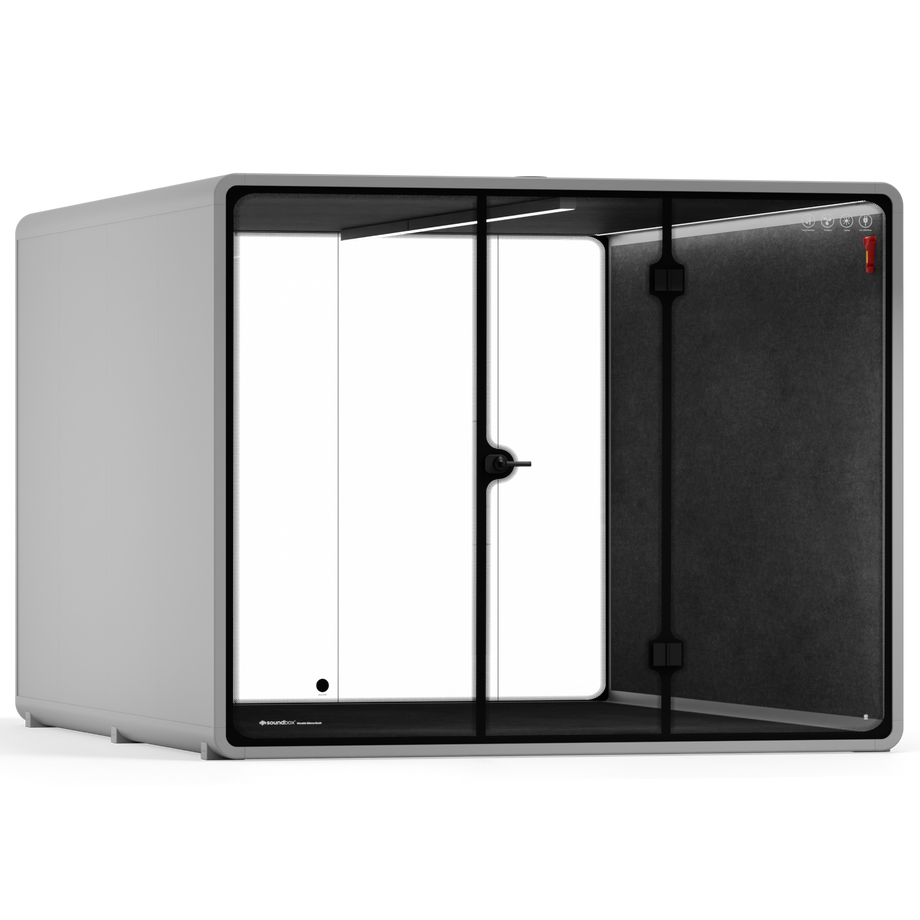

The meeting booth is constructed from aviation-grade alloy and fully toughened glass, guaranteeing durability and strength. To boost acoustic performance, the interior walls are lined with PET sound acoustic panels. The booth comfortably seats four people for conference calls, private meetings, or group Zoom sessions. Furniture options include premium sofas and tables, with an optional monitor stand (Monitor not included). Our meeting booths are built from aviation-grade alloy, full toughened glass, and internal PET sound acoustic panels.
Spec Full specification
Everything for the drawing set.

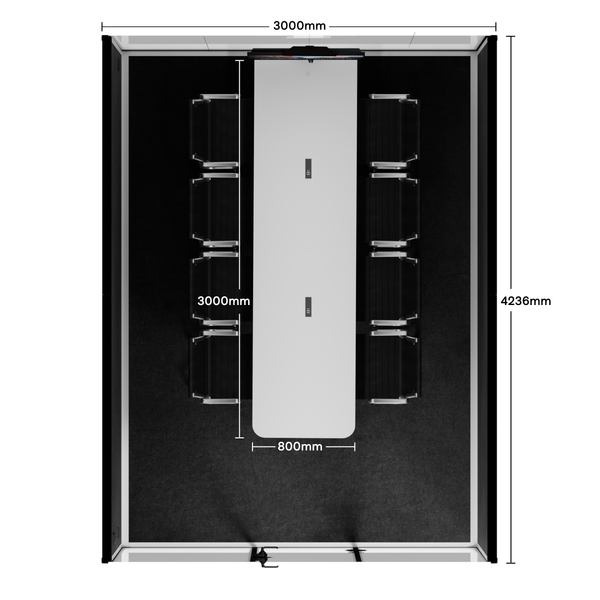

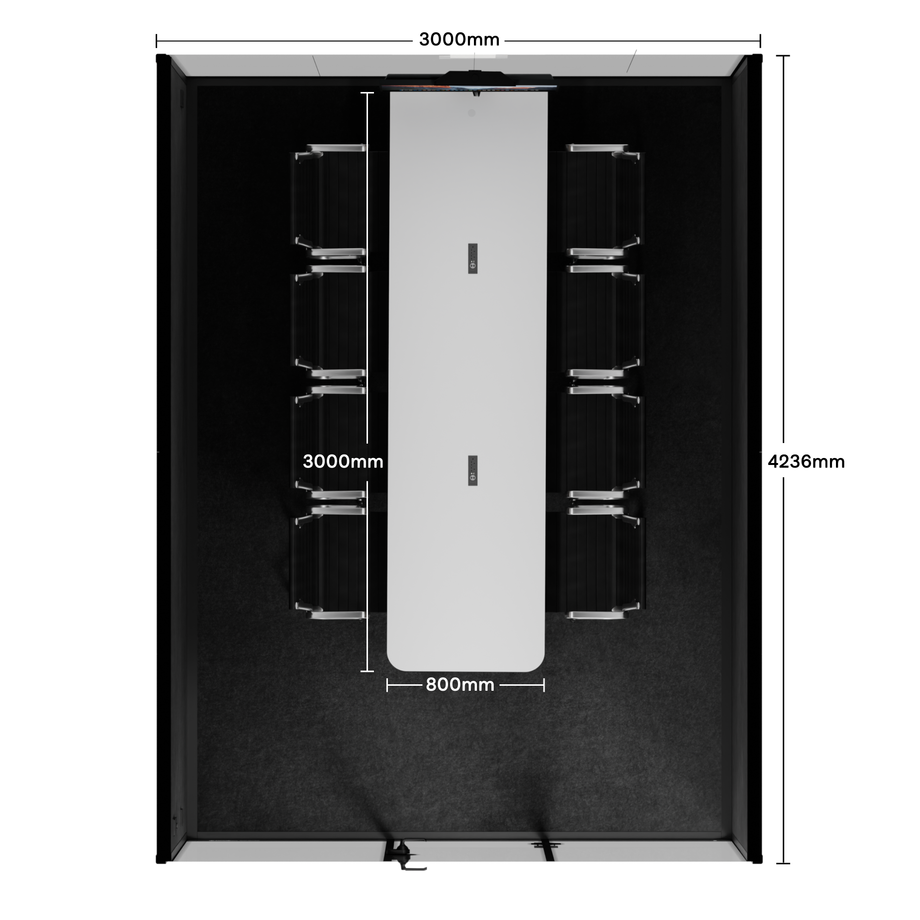

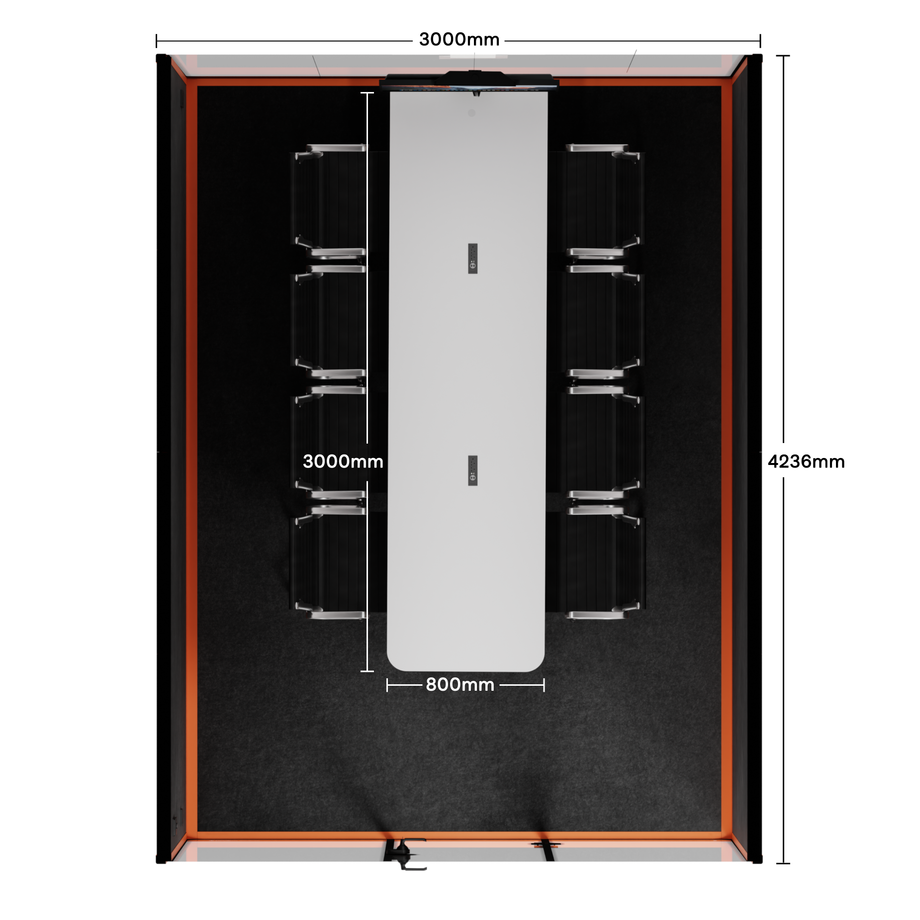

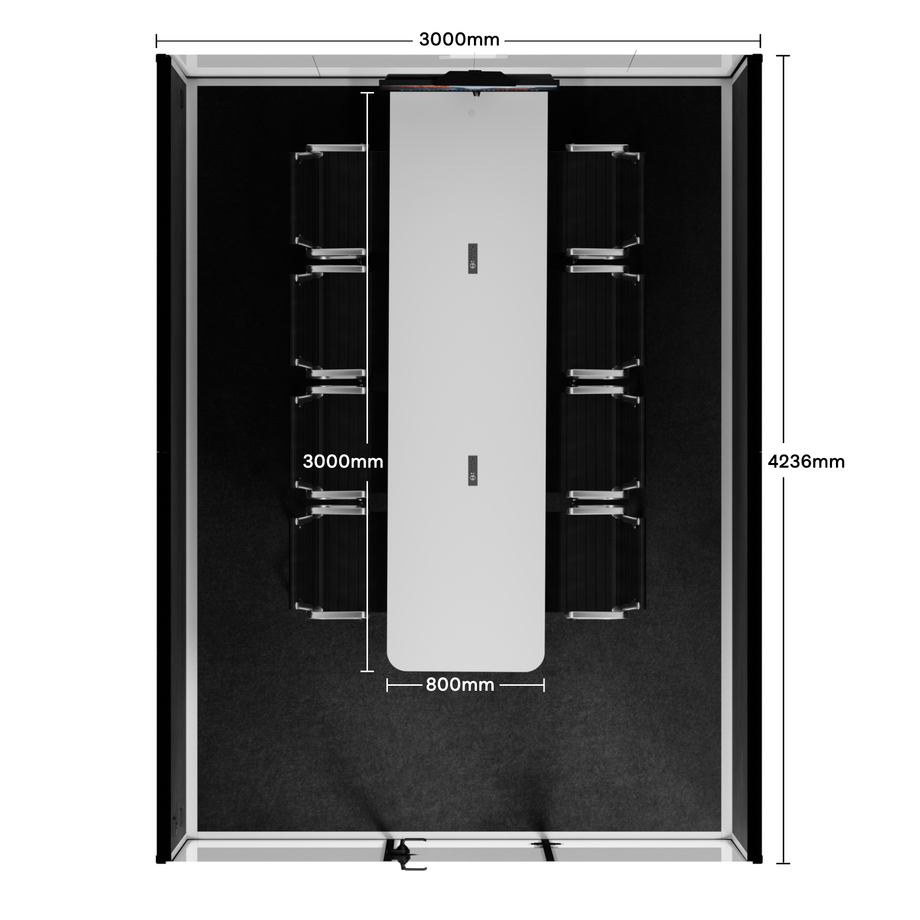

Dimensions
- Internal (H×W×D)
- 2140 x 2840 x 4200
- External (H×W×D)
- 2340.5 x 3000 x 4230.6
- Weight
- 1442kg (Pod)
Acoustics
- Speech reduction
- STC 30dB (±5dB)
- Reverberation
- RT 0.25s (±0.1s)
Materials
- External Frame
- Aviation-grade aluminium & nano PP finish
- External Panels
- Carbon Composite ≤0.071kg CO2e
- Glass
- 10mm Laminated
- Damping Feet
- Vibration control
- Internally
- Acoustic PET board
Ventilation
- Fans
- Quad Turbo Fans + 4 Outlets
- Airflow
- 551 m³/h (max)
- Air refresh
- Every minute
- Noise
- Low-noise, multi-channel air ducts
Electrical & lighting
- Lighting
- 6500k (50Lx) daylight LED
- Power
- Multiple power outlets, 220–24V; USB, USB-C
- Sensor
- Energy-saving motion sensor
- Connectivity
- External / internal LAN port
- Audio
- Bluetooth connect speaker
- Charging
- Wireless charging dock
- Furniture
- Furniture option only
- Power supply
- Supplied with 1.8m cable
Safety
- Emergency Safety Hammer
- Included For Internal Fitting
- Fire Rated Foam
- UK Fire foam where required.
- Sprinkler / Mains Fire Alarm
- Laser cut (25mm) and usable if required
- Formaldehyde Free
- No wood or glue
Sustainability
- Recycled materials approx
- ≥180kg (12m²/0.66m³) each
- Carbon Footprint
- ≤0.071kg CO2e
- Energy Consumption
- ≤0.4MJ
Features Highlights
What makes it special.

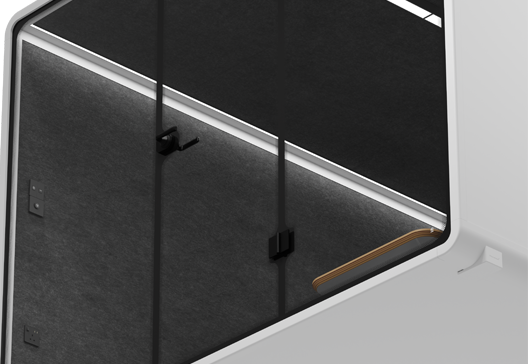

New, Upgraded Lighting
Quell Workspace now offers, as standard, additional LED strip lighting 4000k 50Lx Daylight, neatly designed on either side of the meeting and conference booth. Powered separately from the leading central light-creating the potential for task or ambient lighting.
New - Turbo Fan System
Introducing the new Turbo Fan, sleeker in design with more airflow, creating ample comfort and a refreshing environment.

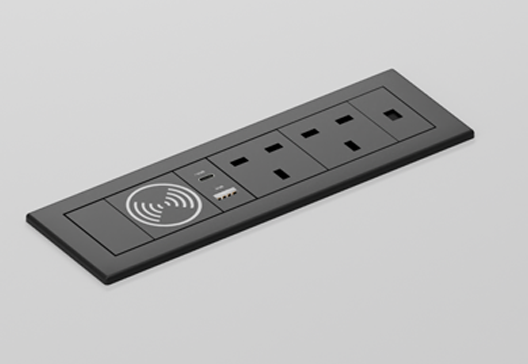

Power + Bluetooth
UL & CE Certified Bluetooth Speaker, connect devices for calls, Zoom calls or music. Switches for LED lighting and ventilation (dimmable). Motion Sensor - Only use power when in use. 8* 220-240 Power Socket UK/ EU 6* USB DC 5V, 2.1A. 6* USB-C DC 5V, 2.1A. 2* Wireless Phone Chargers * The power outlets above are based on the table option being included.
Ground Breaking Tech
Quell Workspace is a fully engaged company focusing on the highest technological advancements, creating highly efficient, creative, focused work environments, and continually striving for excellence in technology and acoustic engineering.

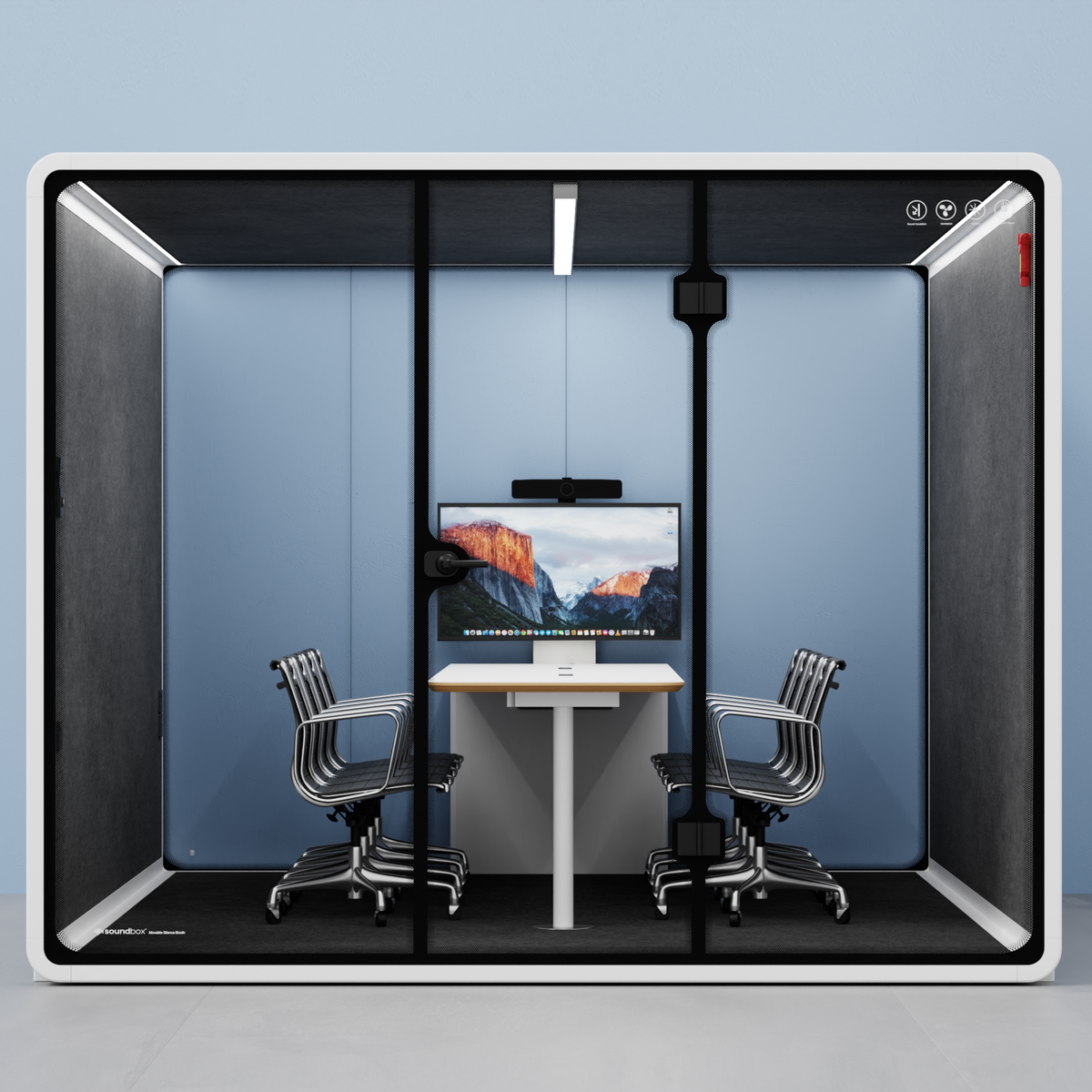

Clerkenwell · London showroom
