Primarily an acoustic control company, technically engineers; design-wise, we are creators. Our furniture packs have been developed over years of trials and customer feedback: functional, comfortable, and organic design.
Acoustic booths · Quell
30 dBspeech reduction

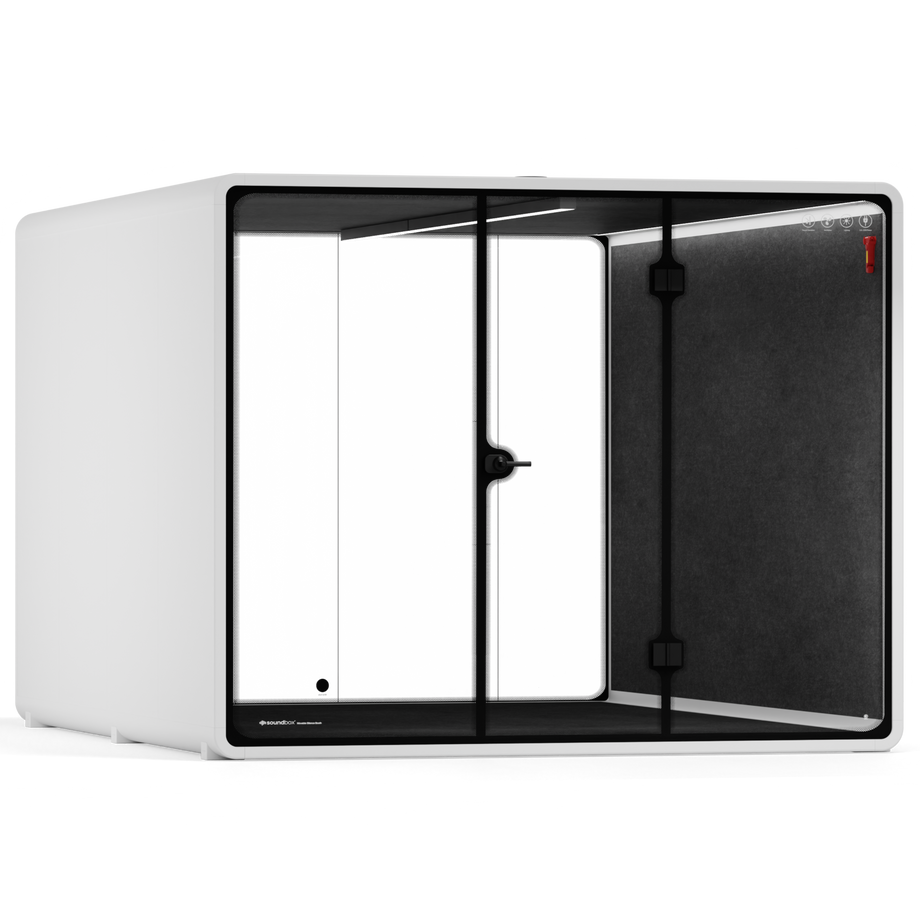

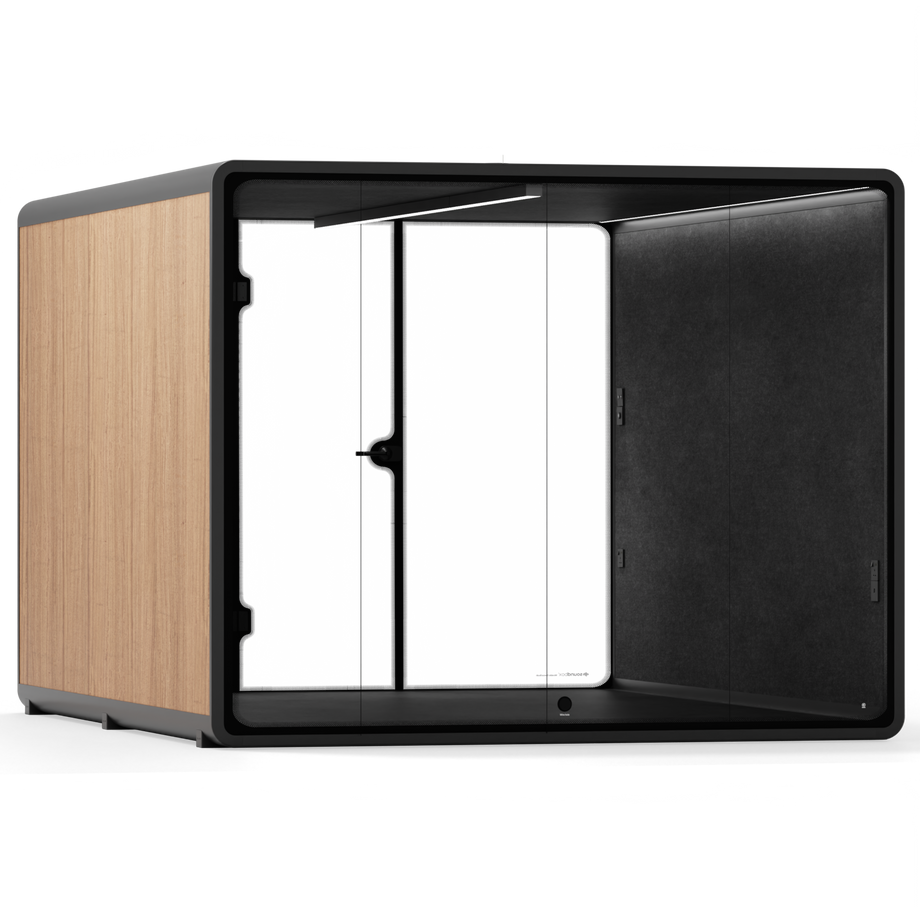

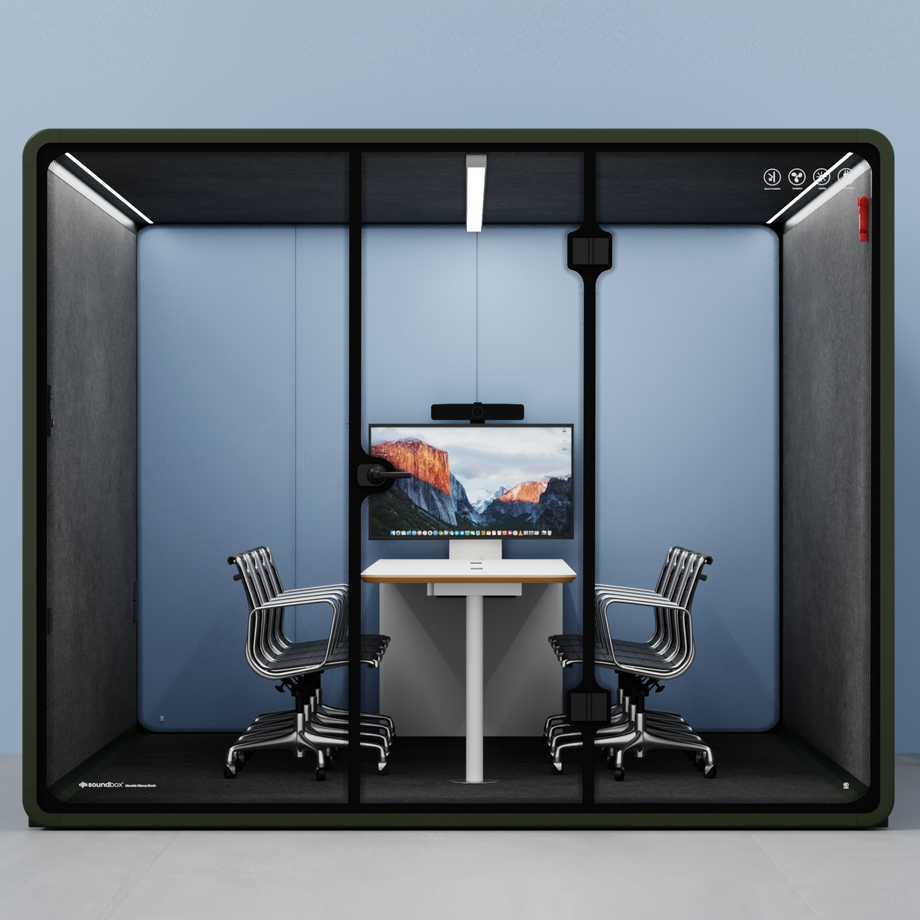

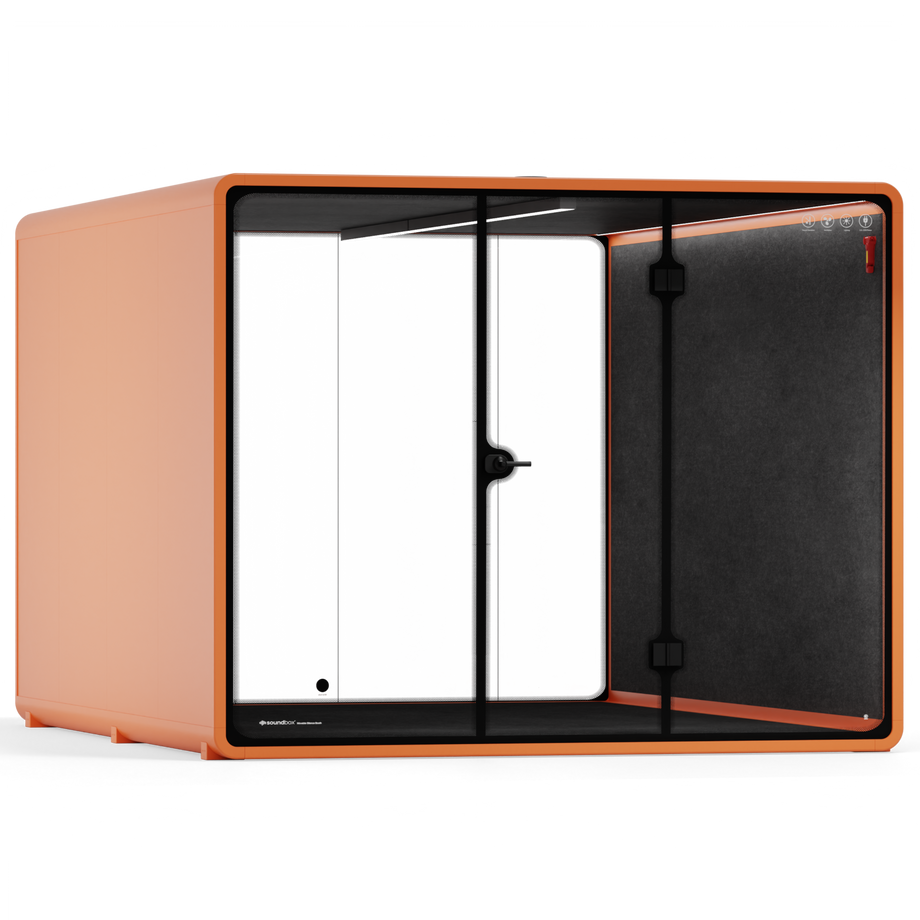

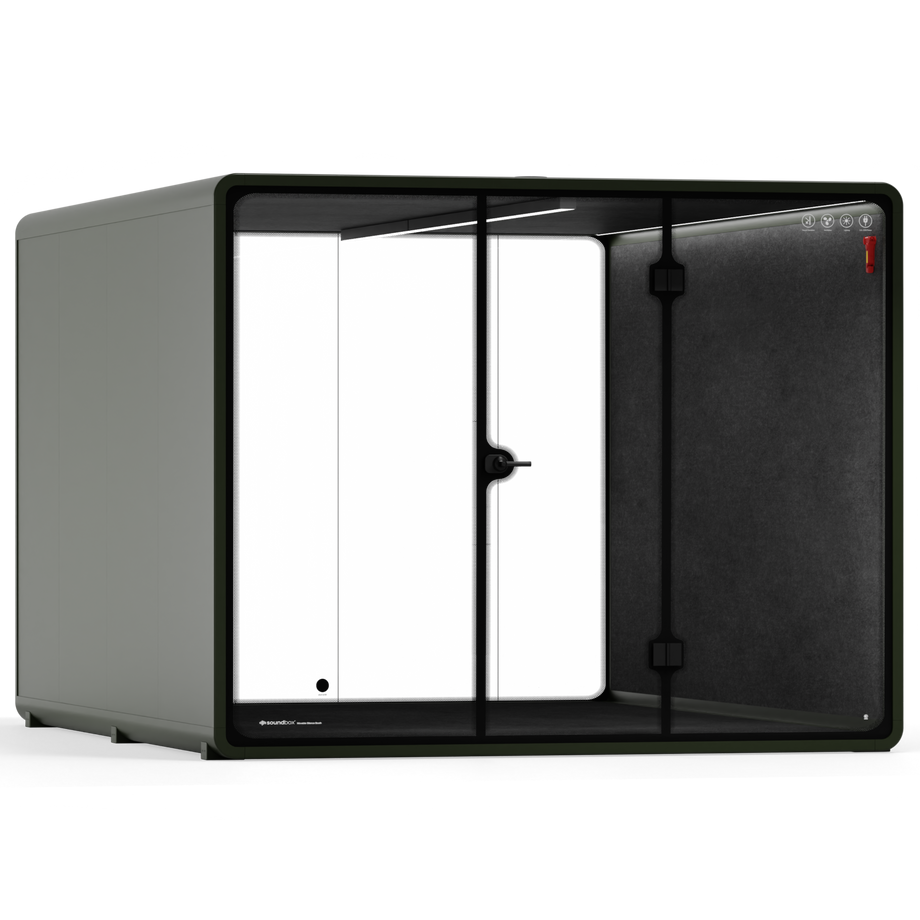

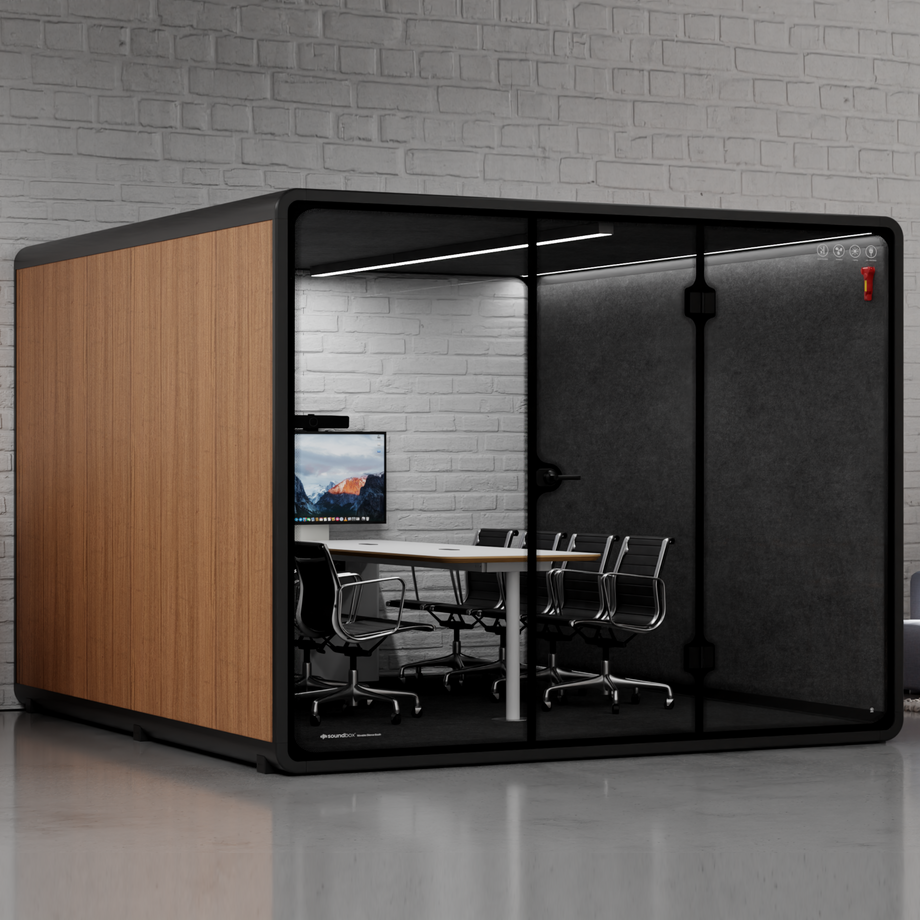

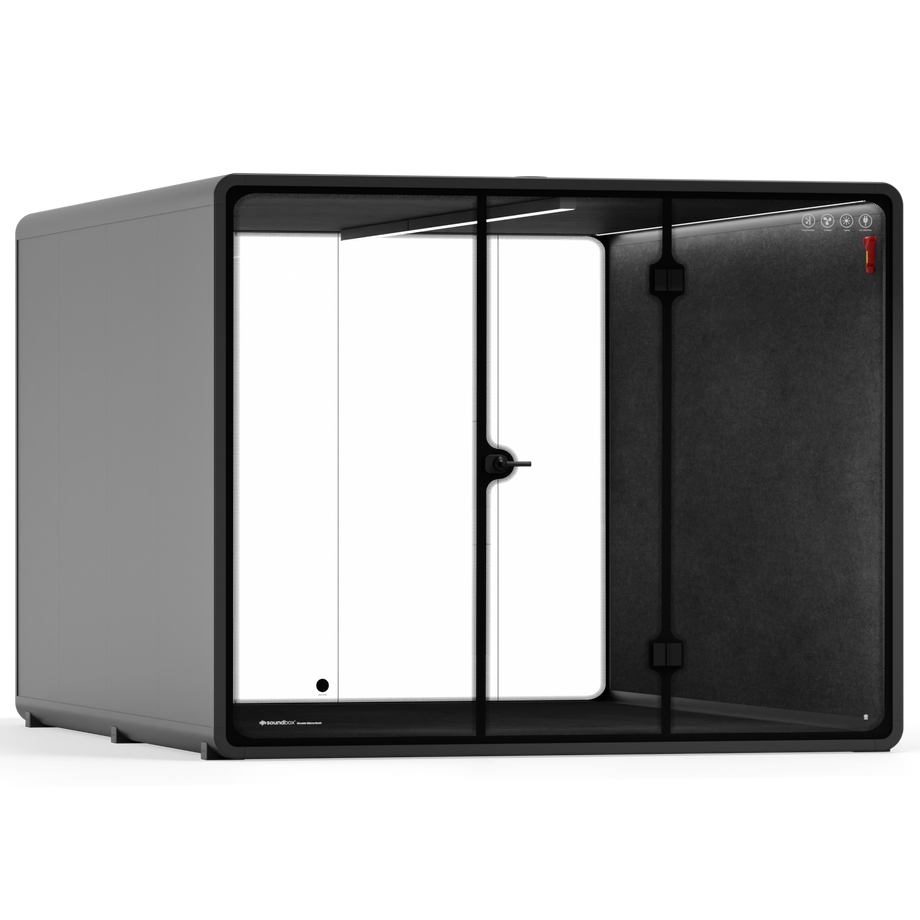

Quell collection · Quell Máx

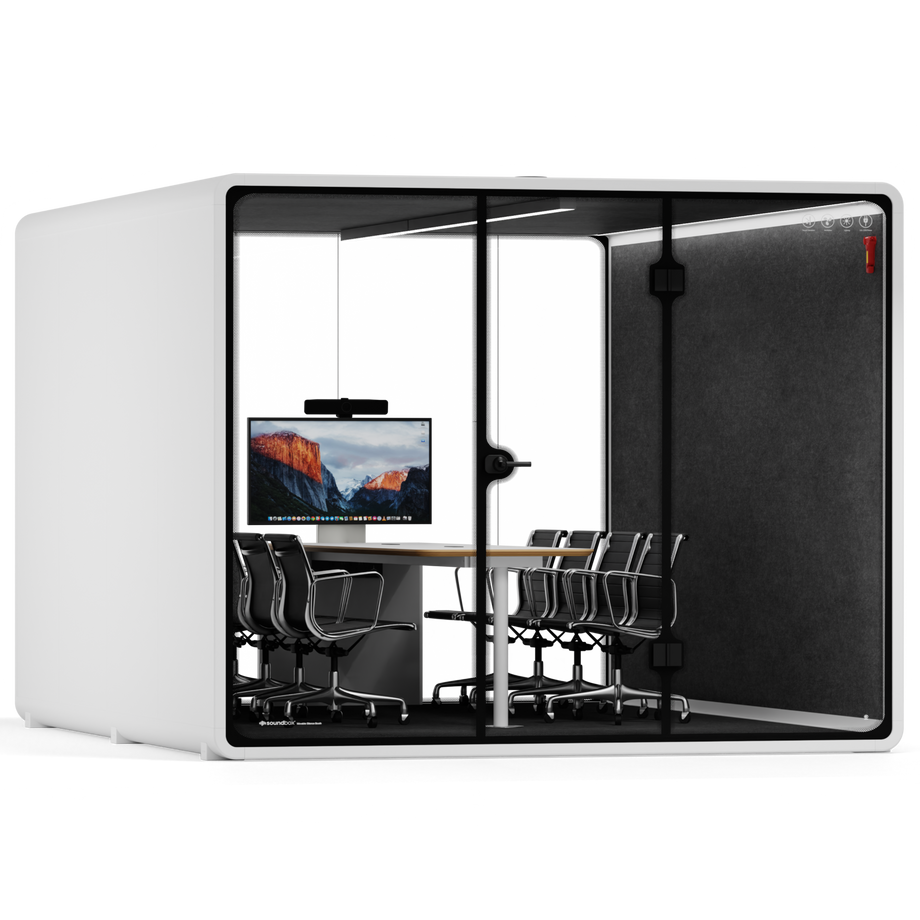

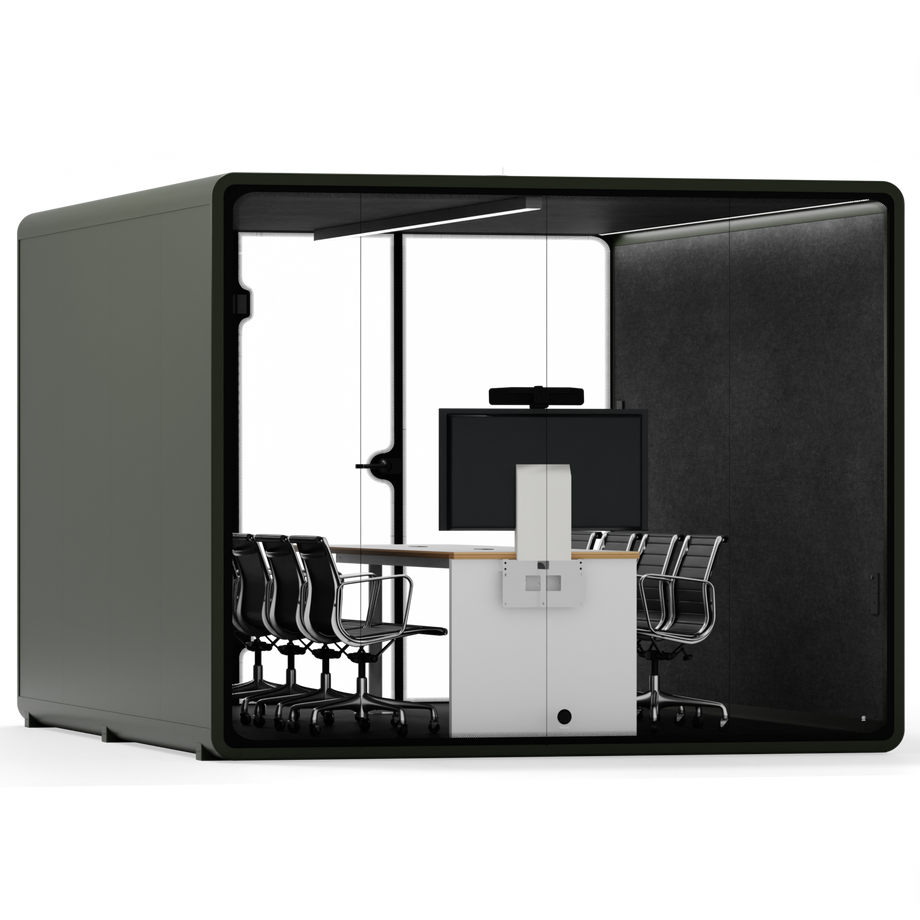

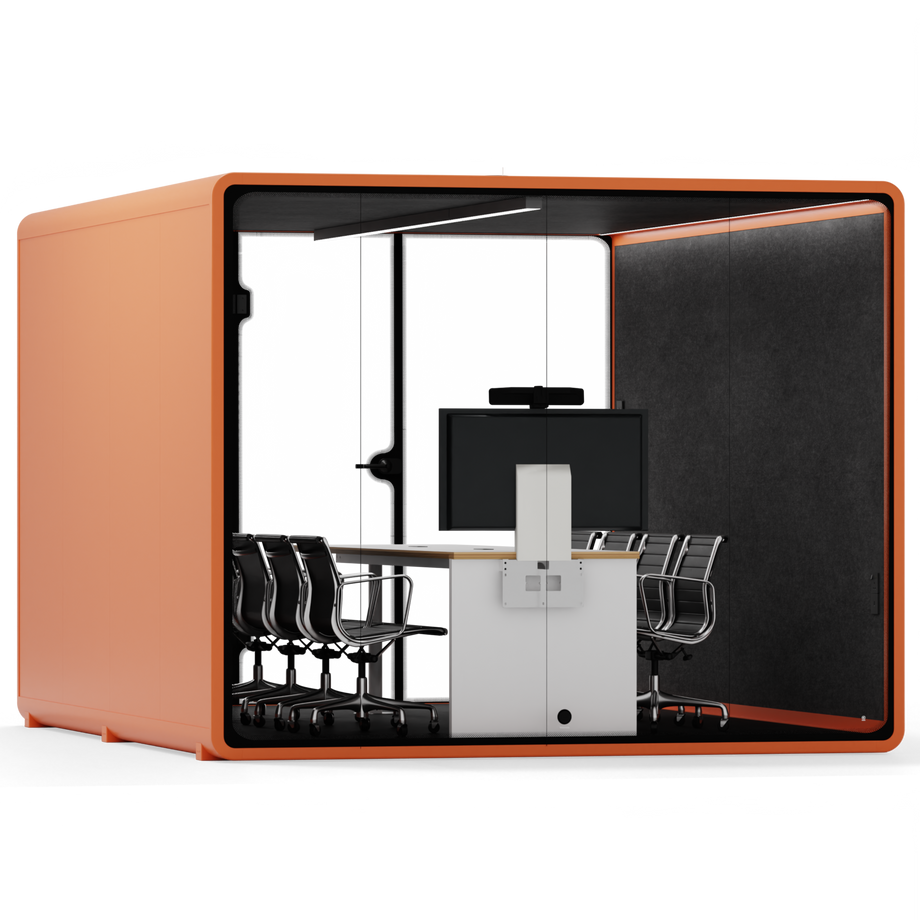

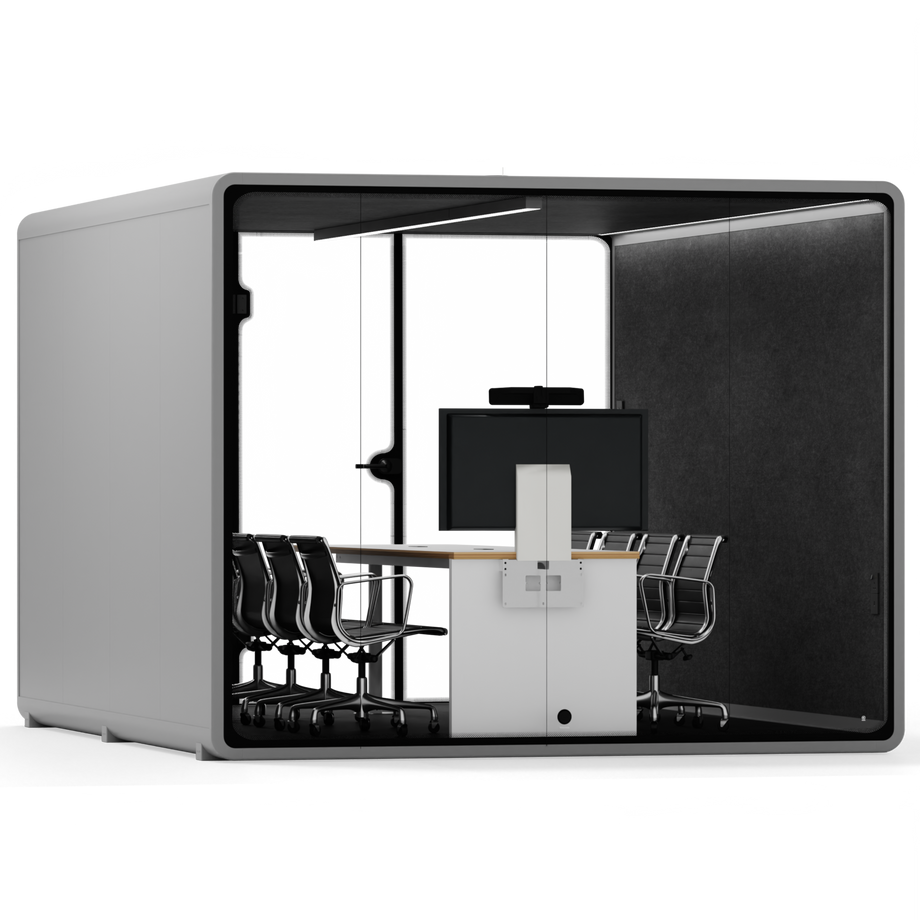

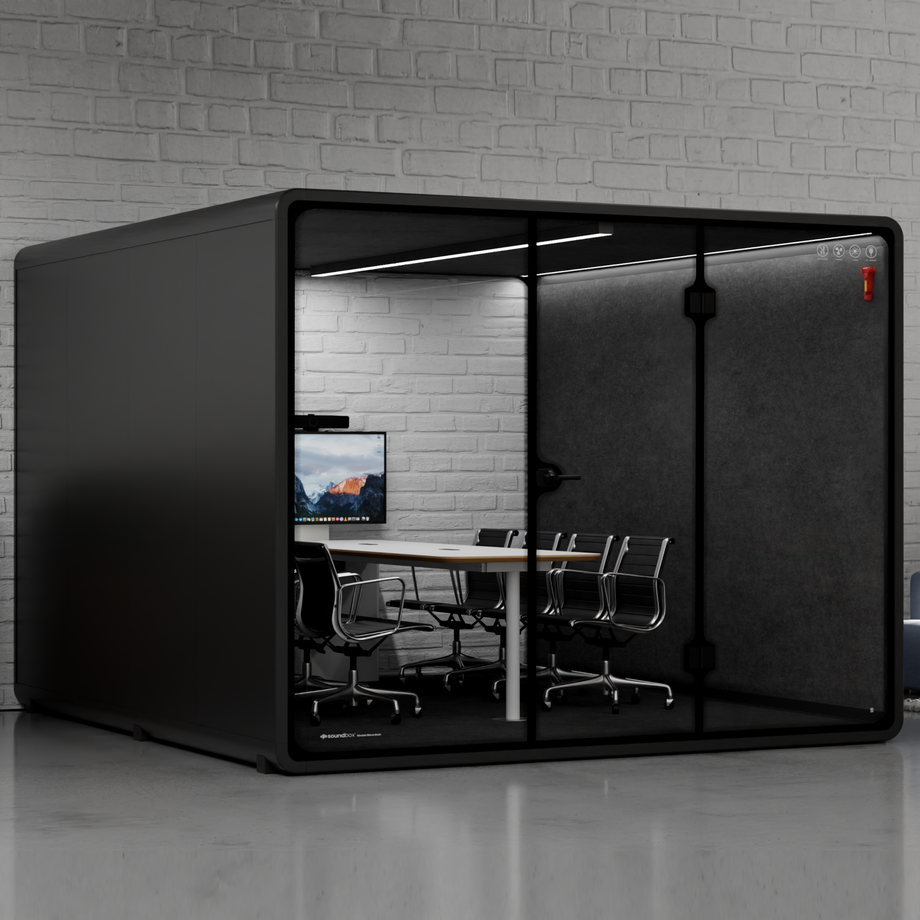

Quell Max - Clube House
Cabine de reunião acústica
ColorWhite
Inside ColorDark Grey
Furniture
POA
Price on application
ISO 23351-1Acoustic
TÜV · UL · CETested
BluetoothSpeaker
In stockNow
Info
Overview

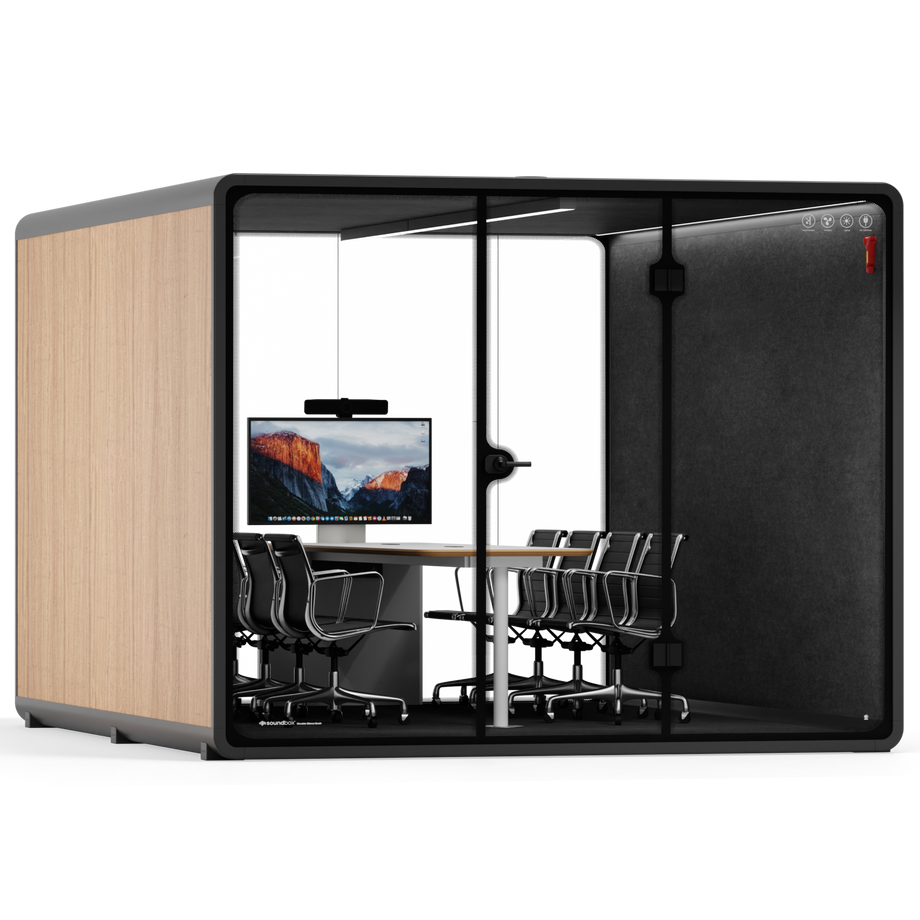

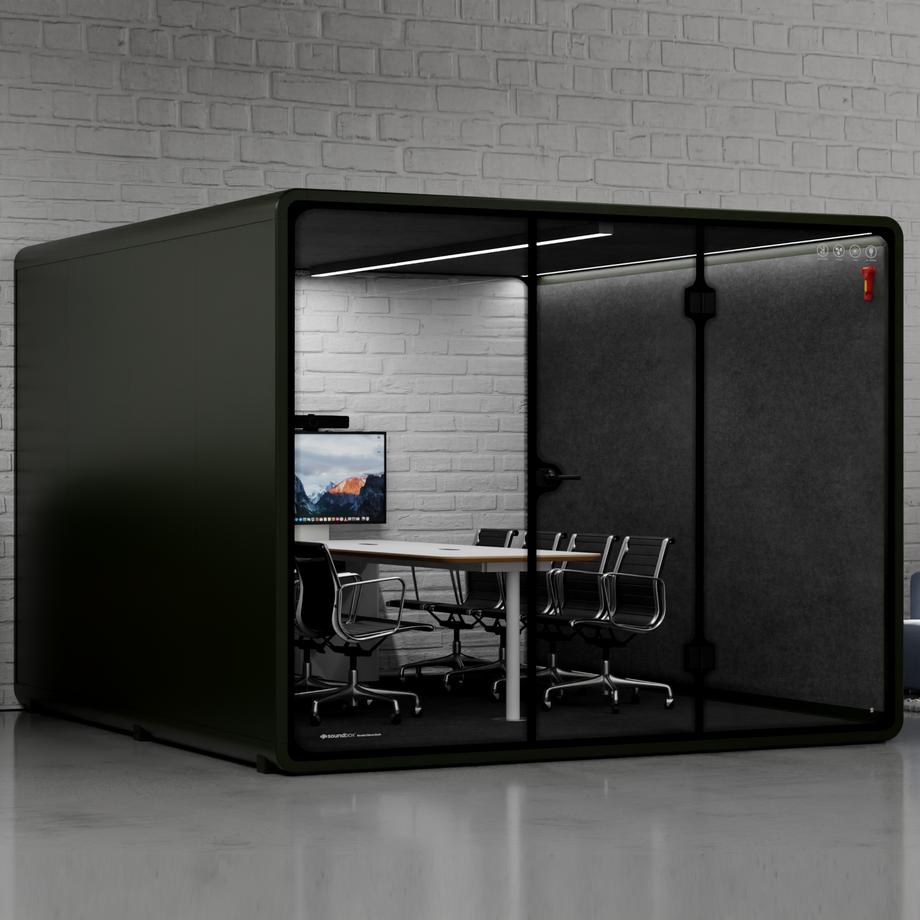

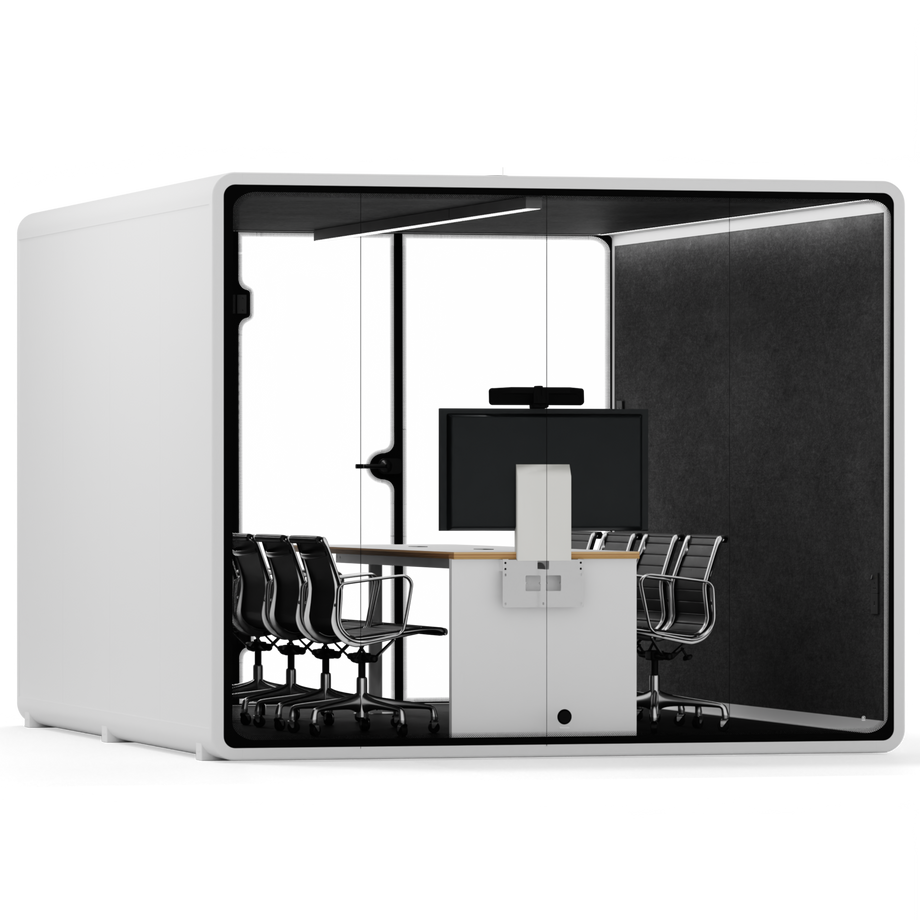

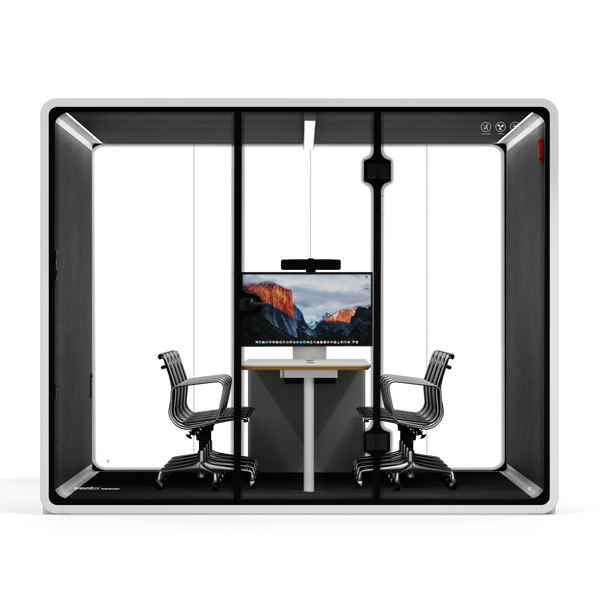

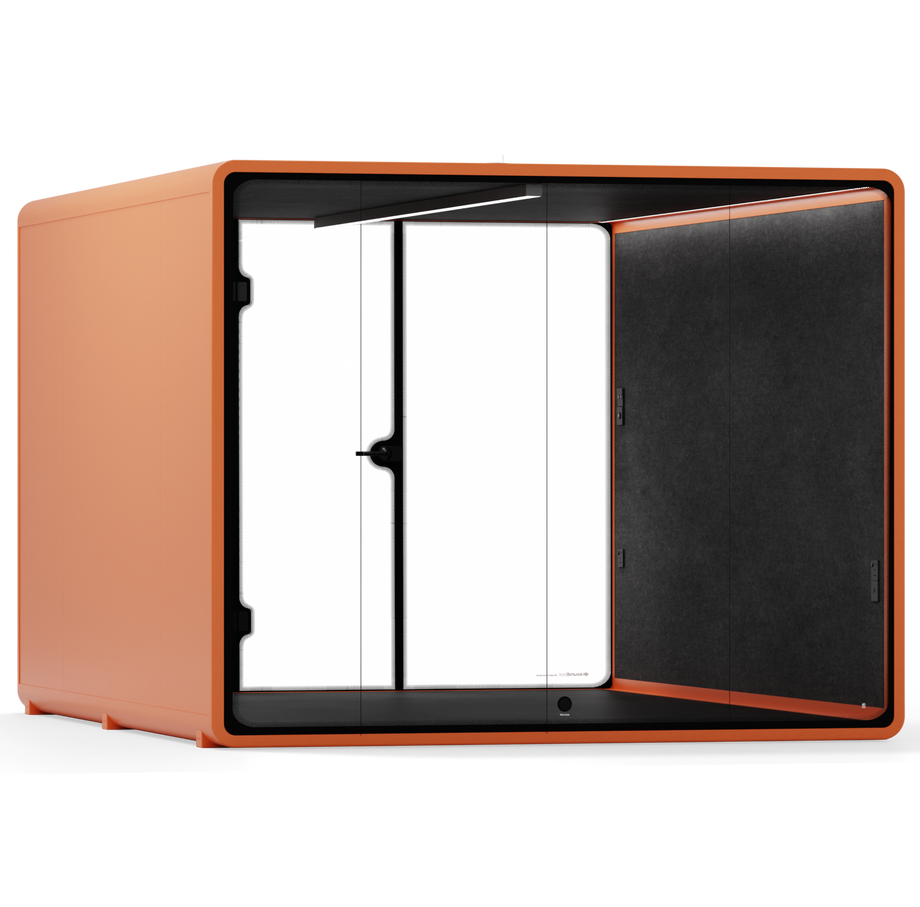

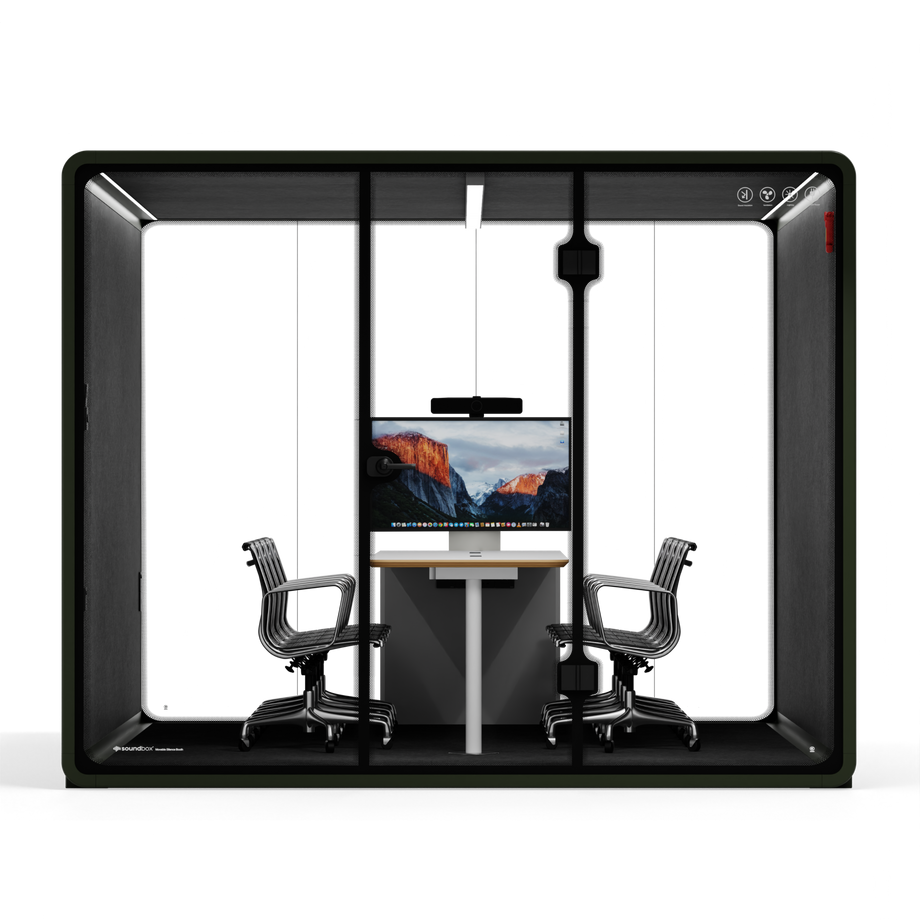

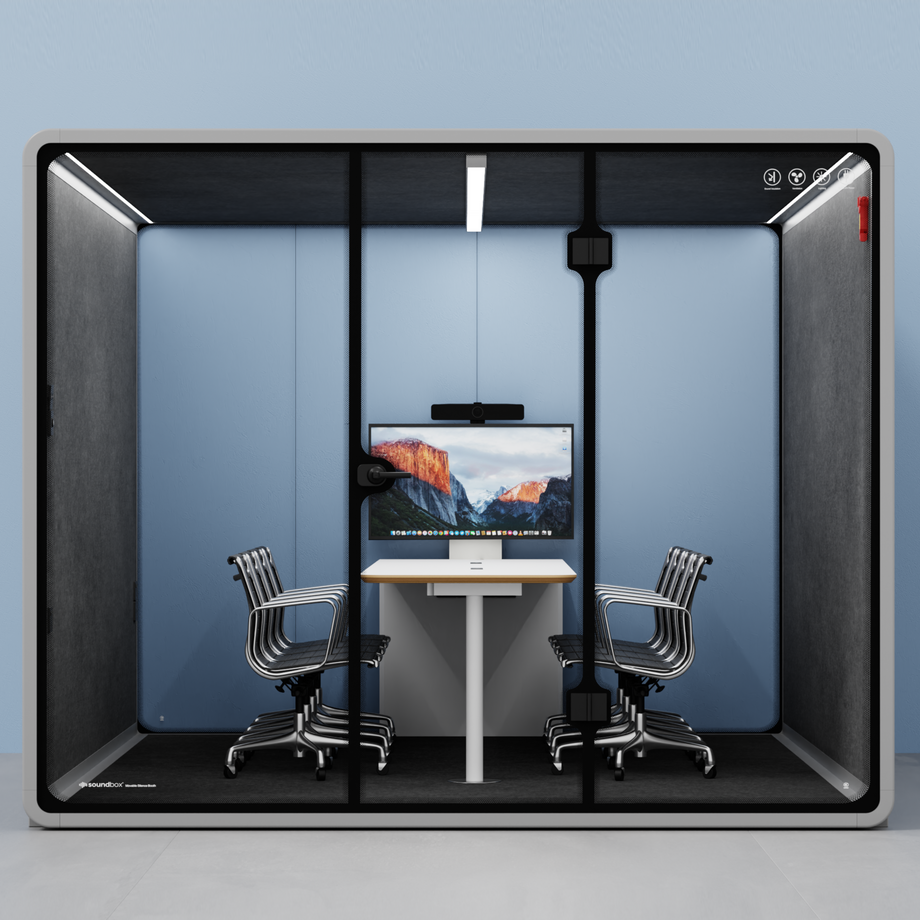

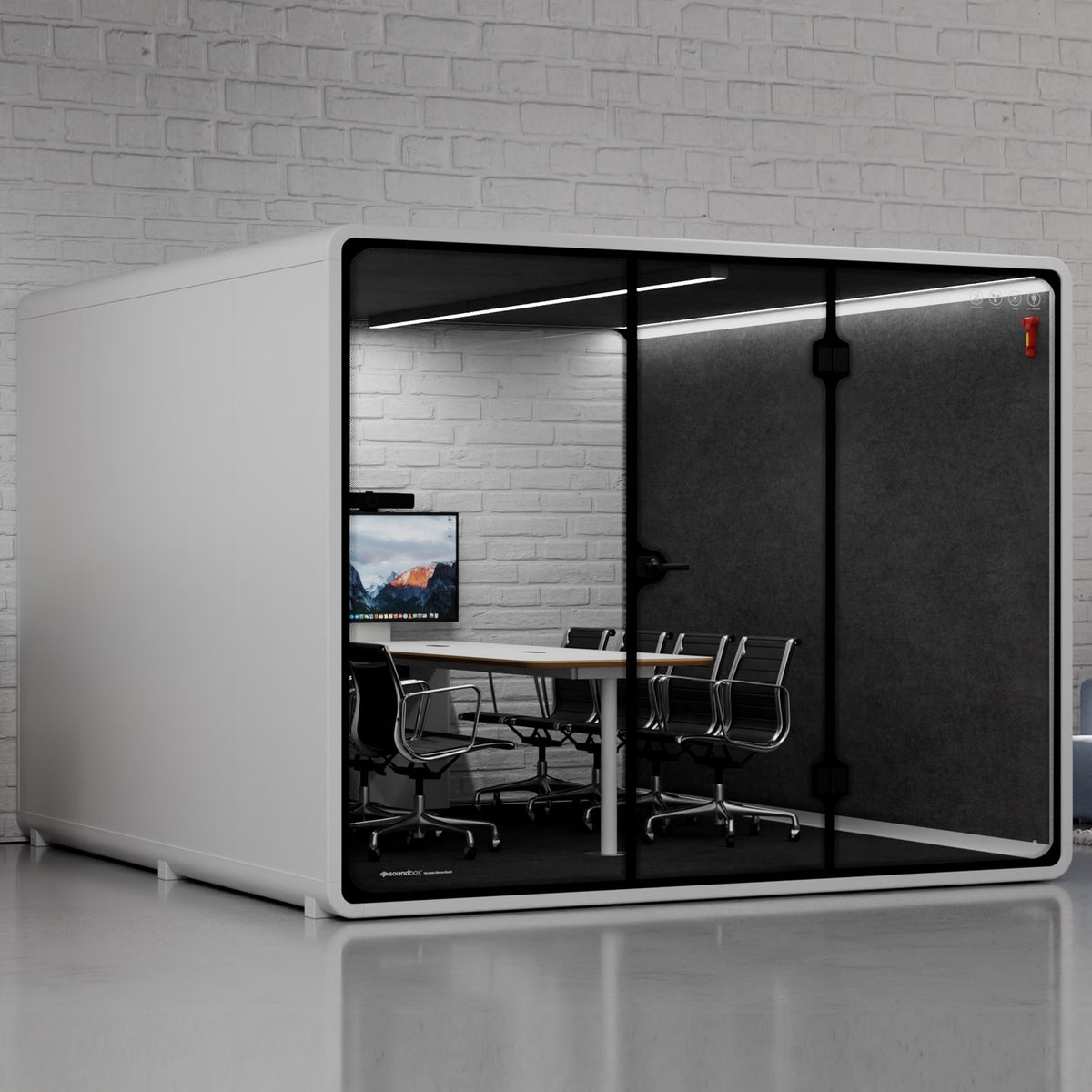

About the Quell Max - Clube House.

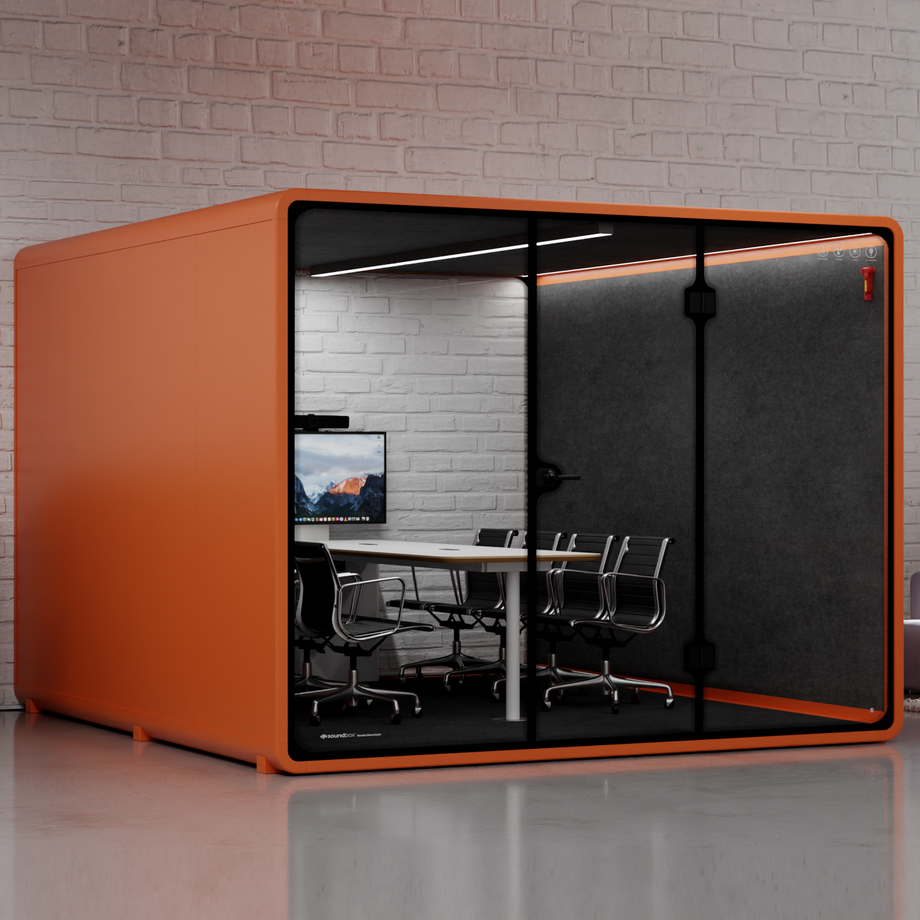

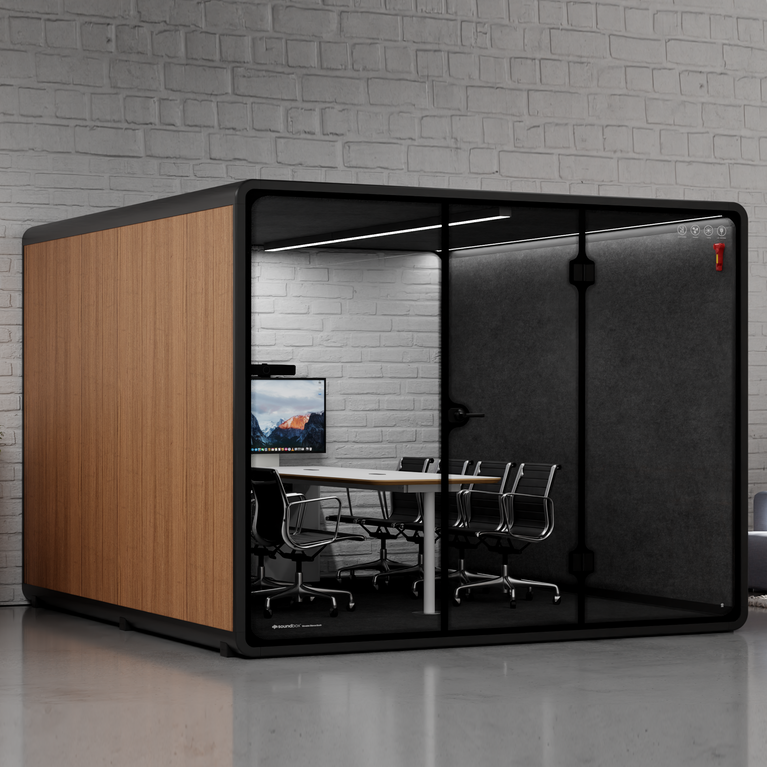

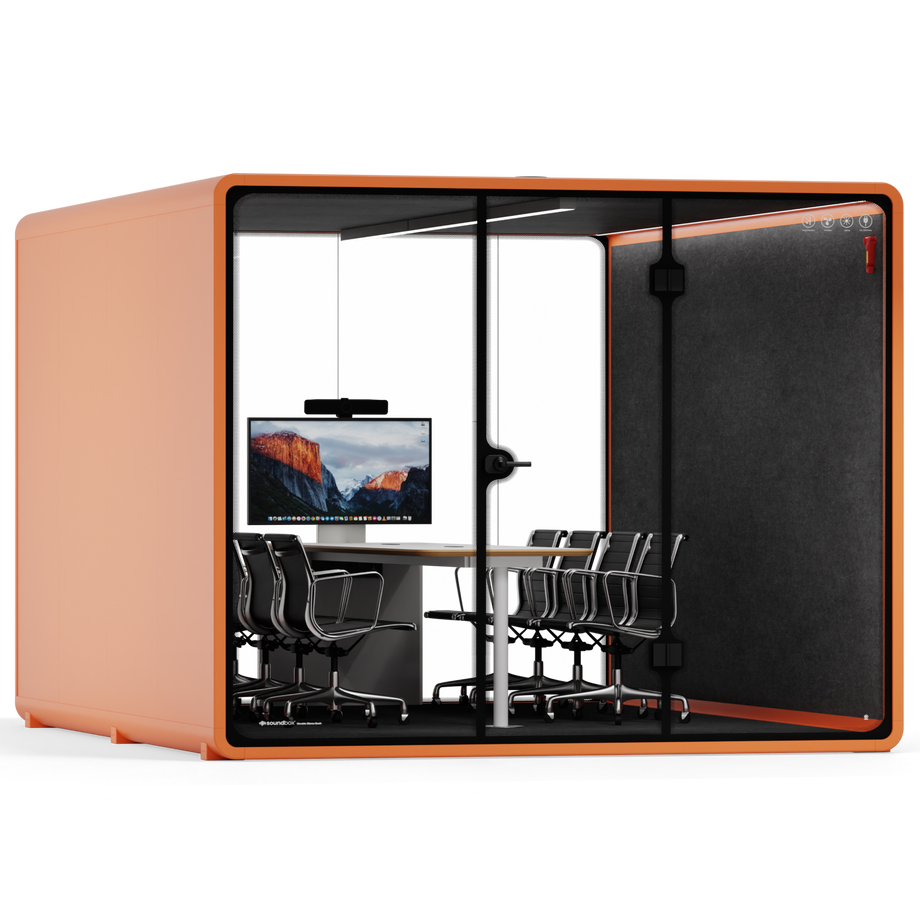

A nossa cabina de conferência / club house acomoda confortavelmente 8 pessoas. Uma cabina de conferência espaçosa com qualidades acústicas de primeira qualidade. Equipada com um sistema de ventilação com ventoinha turbo silenciosa de 6 *, esta cabina de reunião acústica proporciona um fluxo de ar líder na indústria para manter um espaço confortável e sem distracções. A cabina foi concebida para motivar a sua equipa e ajudá-la a concentrar-se na tarefa que tem em mãos, com o mínimo de interferências acústicas internas e externas.

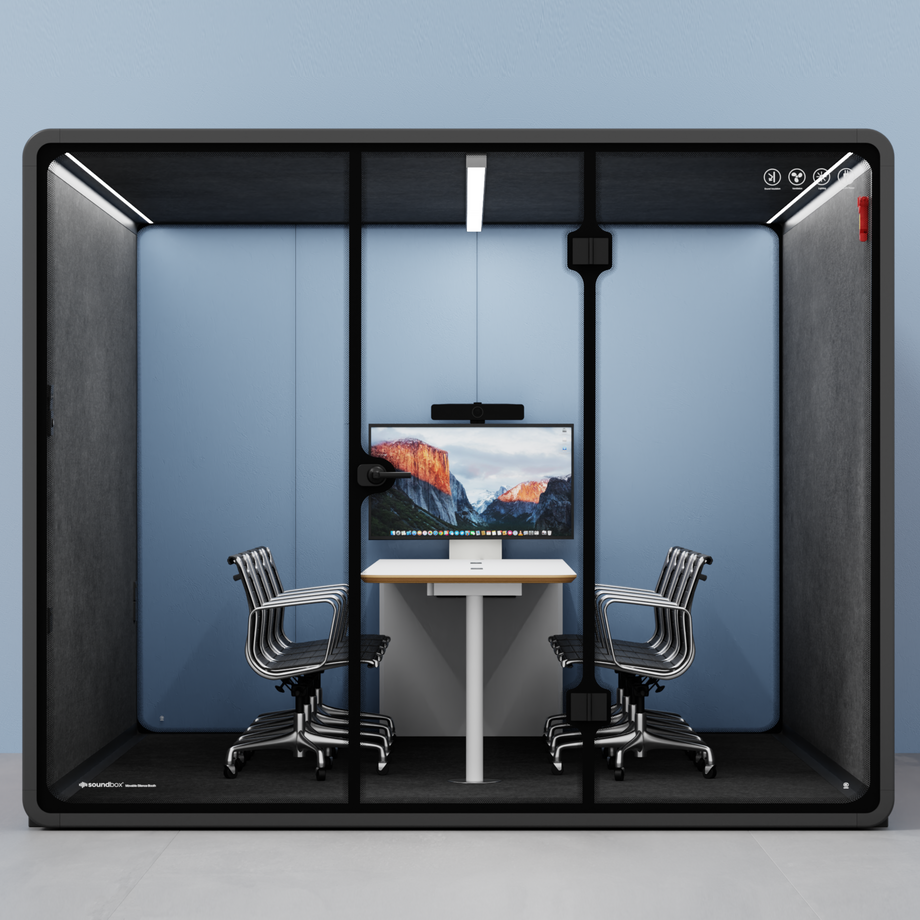

No interior, o ambiente é bem ventilado, fresco, confortável e espaçoso, tornando-o ideal para chamadas em conferência, reuniões privadas ou sessões de Zoom em grupo. As opções de mobiliário incluem sofás e mesas de alta qualidade, com a opção de um suporte para monitor (monitor não incluído).
A cabina de reunião é construída em liga metálica de qualidade aeronáutica e vidro totalmente temperado, garantindo robustez e longevidade. Para melhorar o desempenho acústico, as paredes internas são revestidas com painéis acústicos PET. A cabina acomoda confortavelmente quatro pessoas para chamadas em conferência, reuniões privadas ou chamadas Zoom em grupo. As opções de mobiliário consistem em sofás e mesas de qualidade superior, com um suporte de monitor opcional (monitor não incluído). As nossas cabinas de reunião são construídas com liga metálica de qualidade aeronáutica, vidro temperado integral e painéis acústicos PET internos.
Spec Full specification
Everything for the drawing set.

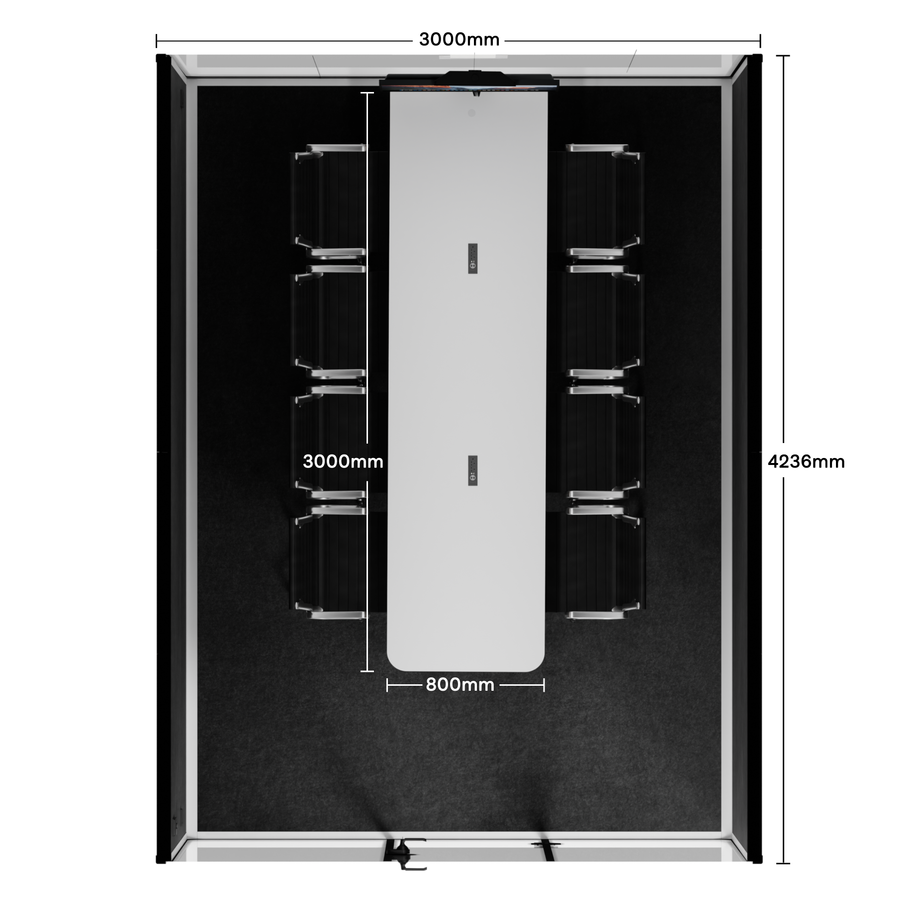

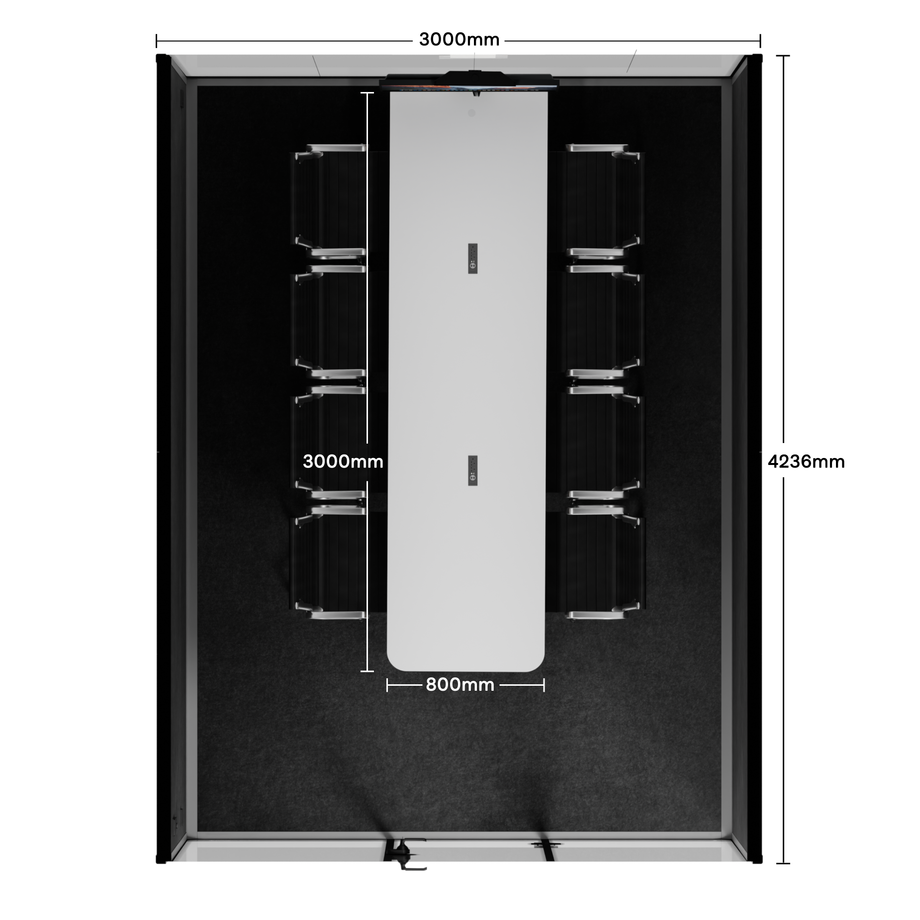

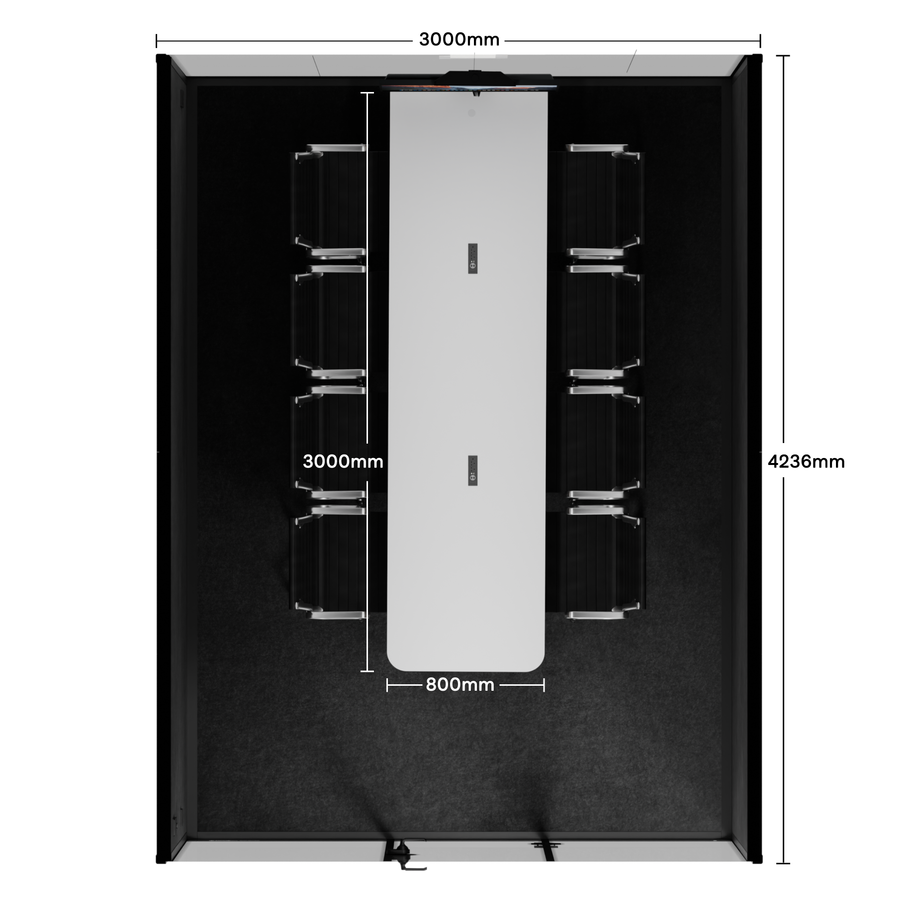

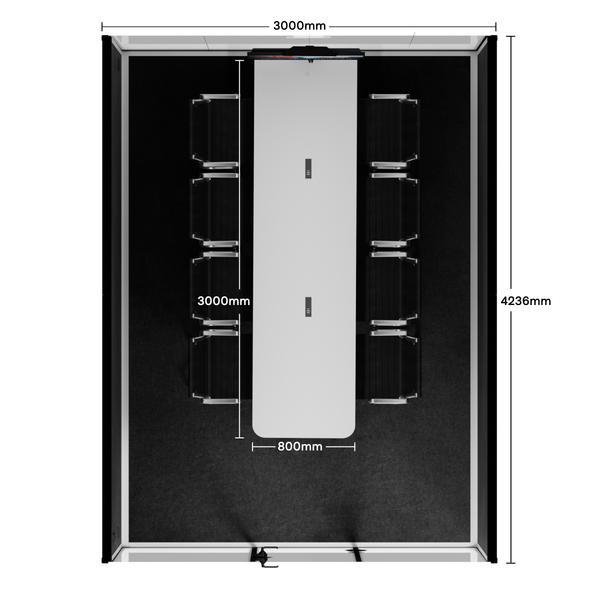

Dimensions
- Internal (H×W×D)
- 2140 x 2840 x 4200
- External (H×W×D)
- 2340.5 x 3000 x 4230.6
- Weight
- 1442kg (Pod)
Acoustics
- Speech reduction
- STC 30dB (±5dB)
- Reverberation
- RT 0.25s (±0.1s)
Materials
- External Frame
- Aviation-grade aluminium & nano PP finish
- External Panels
- Carbon Composite ≤0.071kg CO2e
- Glass
- 10mm Laminated
- Damping Feet
- Vibration control
- Internally
- Acoustic PET board
Ventilation
- Fans
- Quad Turbo Fans + 4 Outlets
- Airflow
- 551 m³/h (max)
- Air refresh
- Every minute
- Noise
- Low-noise, multi-channel air ducts
Electrical & lighting
- Lighting
- 6500k (50Lx) daylight LED
- Power
- Multiple power outlets, 220–24V; USB, USB-C
- Sensor
- Energy-saving motion sensor
- Connectivity
- External / internal LAN port
- Audio
- Bluetooth connect speaker
- Charging
- Wireless charging dock
- Furniture
- Furniture option only
- Power supply
- Supplied with 1.8m cable
Safety
- Emergency Safety Hammer
- Included For Internal Fitting
- Fire Rated Foam
- UK Fire foam where required.
- Sprinkler / Mains Fire Alarm
- Laser cut (25mm) and usable if required
- Formaldehyde Free
- No wood or glue
Sustainability
- Recycled materials approx
- ≥180kg (12m²/0.66m³) each
- Carbon Footprint
- ≤0.071kg CO2e
- Energy Consumption
- ≤0.4MJ
Features Highlights
What makes it special.

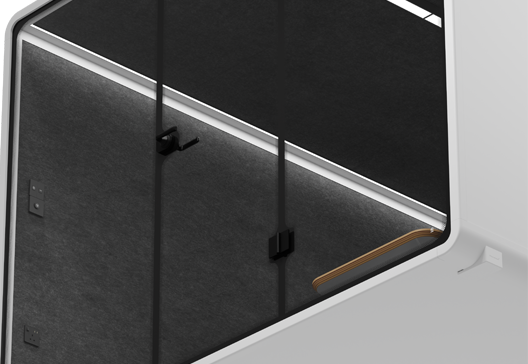

New, Upgraded Lighting
Quell Workspace now offers, as standard, additional LED strip lighting 4000k 50Lx Daylight, neatly designed on either side of the meeting and conference booth. Powered separately from the leading central light-creating the potential for task or ambient lighting.

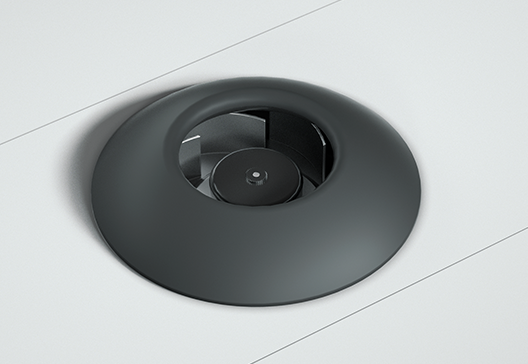

New - Turbo Fan System
Introducing the new Turbo Fan, sleeker in design with more airflow, creating ample comfort and a refreshing environment.

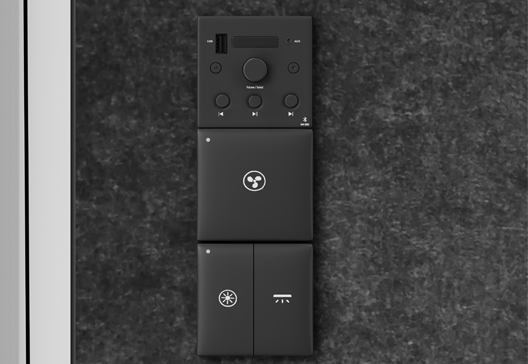

Power + Bluetooth

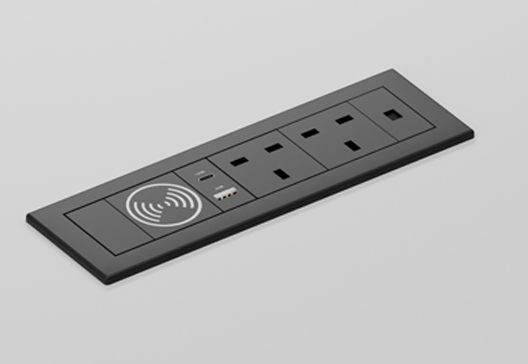

UL & CE Certified Bluetooth Speaker, connect devices for calls, Zoom calls or music. Switches for LED lighting and ventilation (dimmable). Motion Sensor - Only use power when in use. 8* 220-240 Power Socket UK/ EU 6* USB DC 5V, 2.1A. 6* USB-C DC 5V, 2.1A. 2* Wireless Phone Chargers * The power outlets above are based on the table option being included.

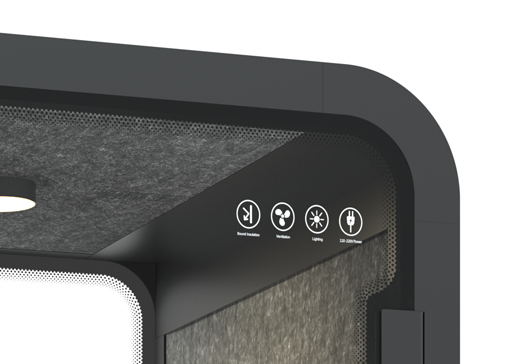

Ground Breaking Tech
Quell Workspace is a fully engaged company focusing on the highest technological advancements, creating highly efficient, creative, focused work environments, and continually striving for excellence in technology and acoustic engineering.
