Quell collection · 4 Person Meeting Booths

Omni Four

Team Meetings & Presentations

External ColourWhiteRAL Pure White
Internal ColourGrey Ribbed
Furniture Option
POA Price on application
  • 30.2 dB Sound Reduction
  • Grade A - ISO 23351-1 Cert
  • Fresh air 102.8 l/s (370 m³/h)
  • Dimmable Task Light
  • Task Lighting 3000–6000K
  • USB & USB-C Power
  • 5-Year Warranty
  • CAT6
ISO 23351-1Acoustic
TÜV · UL · CETested
BluetoothSpeaker
Made to orderLead time
More In This Range

The OMNI Family

Info Overview

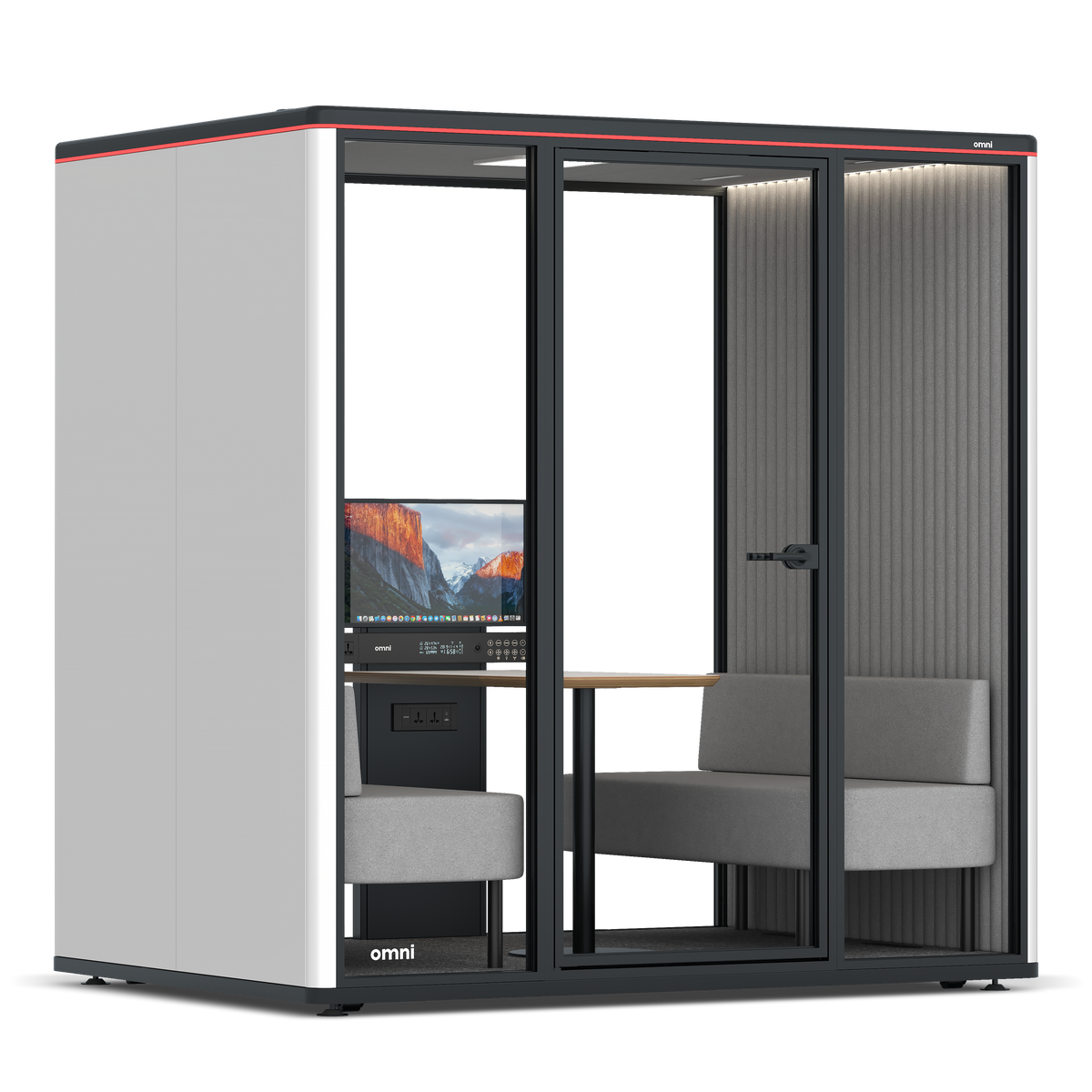

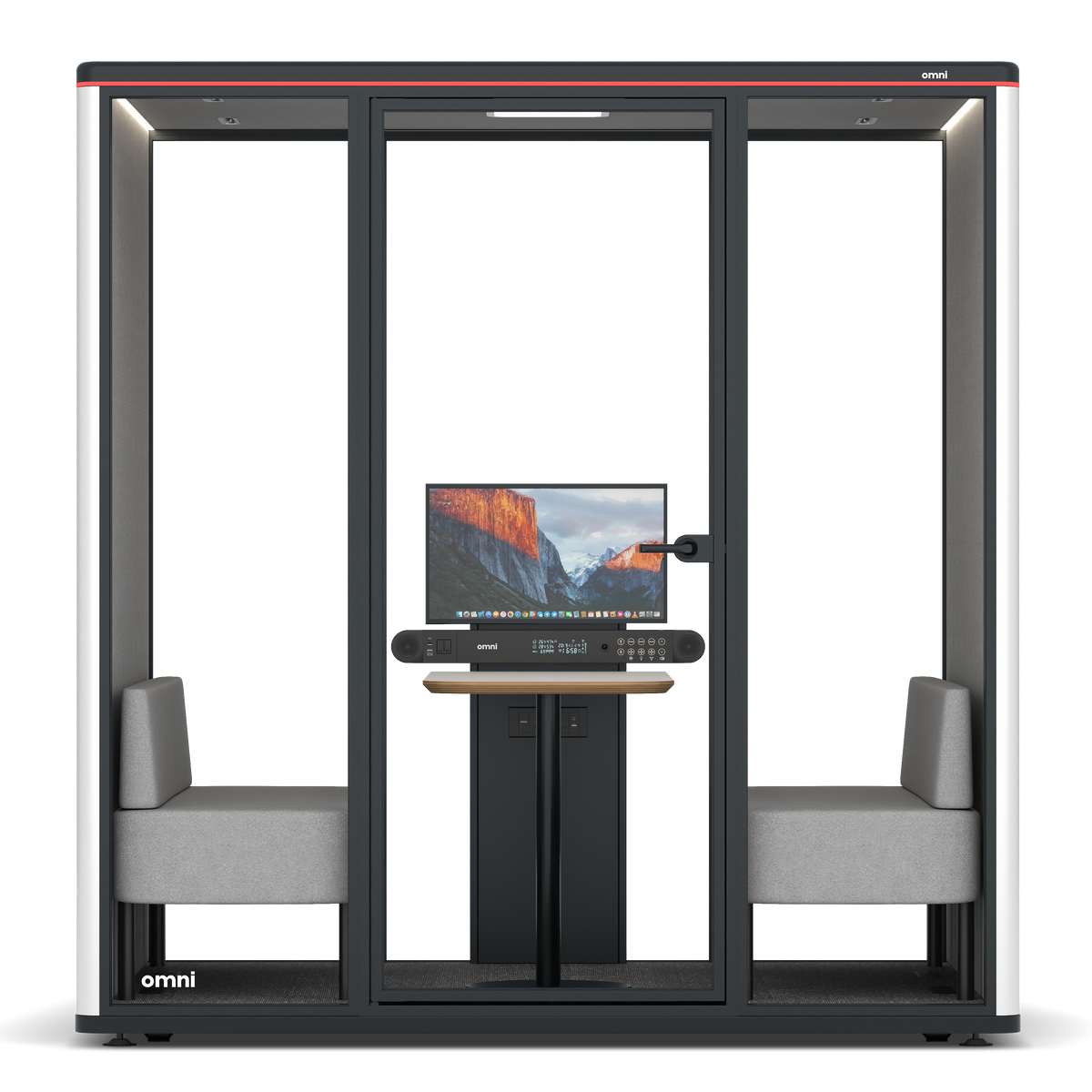

About the Omni Four.

The Omni Four is an architecturally refined 4-person acoustic meeting pod designed to facilitate focused team collaboration, hybrid video conferences, and creative workshops within busy open-plan workplaces. Offering the utility of a dedicated conference room without the permanence, cost, or disruption of fixed drywall construction, it delivers an agile meeting space that integrates seamlessly across modern commercial floorplates.


Smarter Team Collaboration Without Construction

Modern workplaces require collaborative spaces that can adapt as teams grow. The Omni Four eliminates boardroom bottlenecks by introducing an accessible, self-contained meeting environment:

  • Optimized for 4-Person Workgroups: Generously proportioned to seat four professionals comfortably with ample table space for laptops, notebooks, and shared collateral.
  • High-Performance Speech Containment: Multi-layered acoustic architectural walls contain sound at the source, preventing sensitive strategic discussions from escaping into the open floorplate.
  • Glazed Architectural Openness: Expansive acoustic glass panels ensure natural light penetrates deep into the pod while maintaining visual connectivity with the wider workspace.

Engineered for Prolonged Team Comfort

Equipped with high-performance environmental systems to keep 4-person sessions productive, comfortable, and fresh:

  • High-Flow Dual Air Ventilation: Ultra-quiet, continuous mechanical ventilation cycles fresh air rapidly to maintain optimal temperature and air quality throughout long brainstorms.
  • Integrated Media & Screen Ready: Designed to support display screens and video bars for seamless hybrid Zoom, Teams, and Google Meet conferences.
  • Central Meeting Table & Upholstered Banquettes: Ergonomically engineered seating and durable worksurface designed for extended laptop use and collaborative sprint sessions.
  • Multi-User Power Hub: Integrated multi-socket power units with USB-A and fast-charging USB-C ports keep all four attendees fully connected.

Designed to Belong in Any Interior Scheme

  • Configurable Finishes: Tailor powder-coated exterior aluminium frames and choose from a curated palette of sound-absorbing acoustic fabrics.
  • Demountable & Relocatable: Freestanding modular architecture allows the unit to be disassembled, moved, and reconfigured as your floorplate evolves.
  • Sustainable & Agile: Bypasses the carbon footprint and material waste of traditional construction while offering asset-level mobility for leased offices.

Built for Versatile Workplace Scenarios

  • Team Sprint & Project Workshops: An isolated space for 4-person scrums, creative ideation, and collaborative problem-solving.
  • Hybrid Client Presentations: High-definition video conferencing setup with acoustic containment for confidential client pitches.
  • Cross-Departmental Syncs: Fast, accessible touch-down collaboration without booking large enterprise meeting rooms.

Specify Omni Four for Your Next Project

Ideal for agile corporate headquarters, coworking facilities, tech hubs, and commercial fit-outs. Explore finish swatches, 2D/3D CAD models, and acoustic test data, or contact the Quell Workspaces team to request a tailored project quotation.

Spec Full specification

Everything for the drawing set.

Dimensions

Internal (H×W×D)
2140 x 2000 x 1400 mm
External (H×W×D)
2300 x 2200 x 1600 mm

Acoustics

Speech reduction
STC 30.2 dB
Certification
ISO 23351-1 Grade A+

Materials

External panels
Upholstered
Glass
10mm laminated
Internal panels
Recycled acoustic PET board
External frame
Aluminium, powder-coated

Ventilation

Fans
Quad turbo fans + 4 outlets
Airflow
102.8 l/s (370 m³/h)
Air refresh
Every minute
Noise
Low-noise

Electrical & lighting

Control system
Integrated power & lighting control
Power supply
100W transformer; 220–240V AC
Lighting
Dimmable 5–100%, 5W worklight
Audio
Bluetooth speakers, 23W
Automation
PIR-activated lighting & ventilation
Power consumption
100W total; ~48W typical internal load

Safety

Smoke detection
System-ready as standard
Sprinkler system
System-ready as standard
Emergency safety hammer
Included for internal fitting
Fire-rated foam
EN rating TBC

Sustainability

Recyclability
100% recyclable frame & panelling
Guarantee
5-year guarantee
Recycled materials
≥180kg (12m²/0.66m³) each
Carbon footprint
≤0.071kg CO₂e
Energy consumption
≤0.4MJ
Features Designed in detail

Considered, down to the detail.

A Versatile Solution For Workplace Balance

A Versatile Solution For Workplace Balance

Omni For Life:
The Omni Booth is designed with aesthetics, installation, and long-term usability in mind.

Engineered for safe handling and efficient assembly, it delivers instant visual impact while remaining maintenance-friendly throughout its lifecycle.

Architecturally driven design

Architecturally driven design

Innovative for scale:

  • Fast installation — phone booth in approx. 60 minutes *Unpacked
  • Integrated heavy duty castors for easy relocation, leveling pillars
  • Innovative assembly and disassembly
  • Power + Cat 6, Underside Base or Ceiling options (M&E friendly)
  • Ventilation in ceiling and base
  • Side-to-side or central positioning, No problem!

Omni adapts as your workspace evolve

Proprietary Control Panel

Proprietary Control Panel

Designed for real-world flexibility:

  • All in one control panel
  • Bluetooth device connecting to quality speakers
  • External Internal temperature display
  • USB, USB - C, Device Power
  • CAT6 Port
  • Fully adjustable fan control
  • Task Light dimmable / temperature control
  • Ceiling Lights strip dimmable
  • Independent naming ability Zone A, B etc
Showroom
Clerkenwell · London showroom

See it in the Clerkenwell showroom.

Experience acoustic excellence in person. Book a visit to see, hear and step inside the range — or take a guided remote tour with our team.

Omni Four

Specify the Omni Four for your floor.

Tell us about the space and a workplace consultant replies same-day with sizing, acoustics, drawings and a fixed quote.

Omni Four
Files Resources

Renders, photography & the drawing set.

Everything to specify and present the Omni Four — request the full pack and a consultant sends it across same-day.

Detail Images Omni Four

Product Render Omni Four

Studio Images Omni Four

Omni Four CAD

REVIT

FAQ Omni Four

Questions about this booth.

All FAQs
What is the Omni Four office pod designed for?

The Omni Four is designed for team meetings, presentations and collaborative working, with space for up to four people. It creates a quieter, more private setting within open-plan offices, making it well suited to everything from formal catch-ups and project reviews to more relaxed creative sessions.

What furniture layouts are available for the Omni Four?

The Omni Four is available in a range of configurations, including counter-height meeting table, sofa and lounge layouts, with selected versions also available with monitor integration. This flexibility allows it to support both structured meetings and more informal collaboration, depending on how the space is used.

How effective is the soundproofing in the Omni Four booth?

The Omni Four delivers certified acoustic performance with an STC rating of 30dB (±5dB) and RT0.25s (±0.1s), tested to ISO 23351-1 standards. This helps reduce surrounding speech noise and improves speech privacy, making conversations easier to hold in busy workplace settings.

Does the Omni Four include ventilation, lighting and power?

Yes, the Omni Four includes a low-noise ventilation system with quad turbo fans and four air outlets, providing airflow of 102.8 l/s (370 m³/h) and refreshing the internal air roughly every minute. It also features dimmable, tunable LED lighting, USB-A charging, a CAT6 network port and integrated Bluetooth® speakers, all controlled through an intuitive touch panel.

Is the Omni Four suitable for modern, flexible workplaces?

Yes, the Omni Four is designed with adaptability in mind. It is fully demountable, fitted with integrated castors for easier repositioning and can typically be installed in around 30 minutes. With recyclable materials and a five-year guarantee, it is a practical option for workplaces that need both performance and long-term flexibility.
